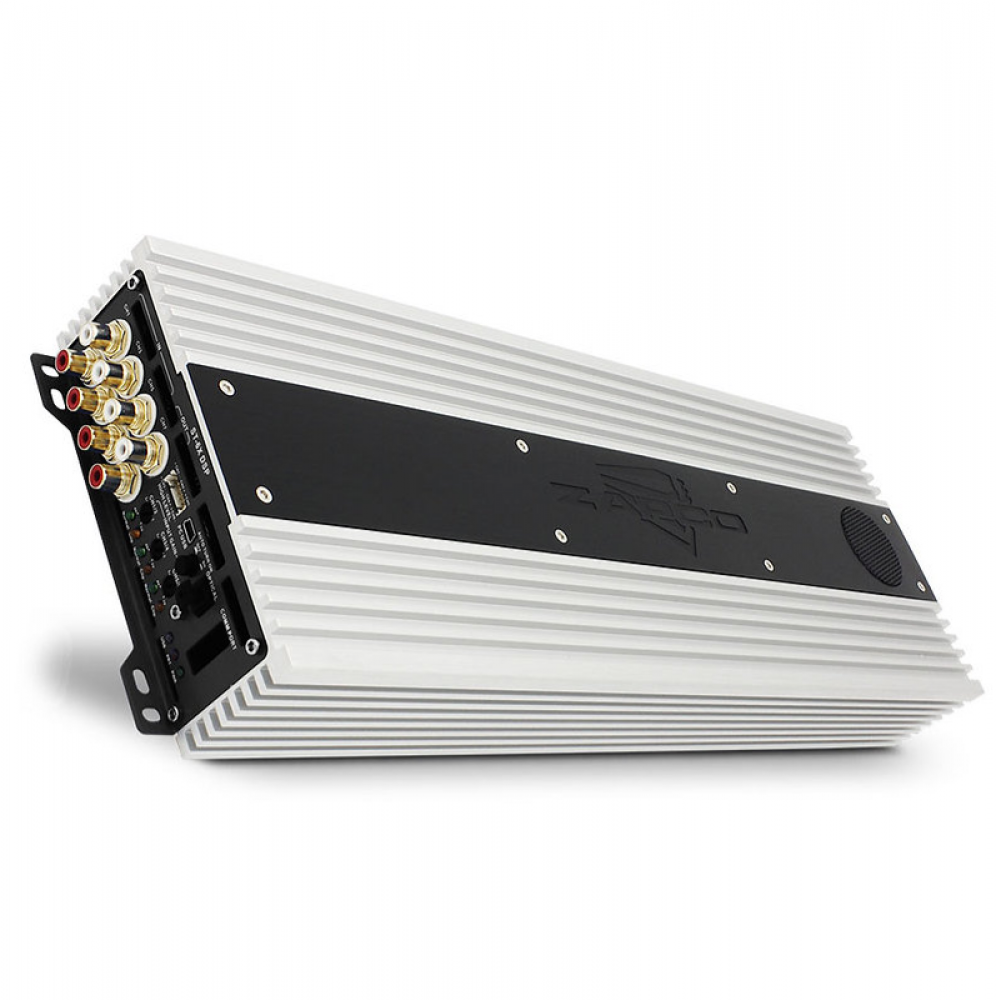

ZAPCO 6-CHANNEL CLASS-A/B AMPLIFIER WITH DSP - 6X 100W @ 4 OHM

Zapco 6-channel, full range. Class A/B amplifier with on-board, full function 8-channel digital sound processing
Power @ 4Ohm: 6 x 100W
Power @ 2Ohm: 6 x 130W
Power Bridged @ 4Ohm: 3 x 250W
Code: ST-6X.DSP
Brand: ZAPCO

Features:

  • 6-Channel, Full Range, Class A/B
  • On-Board, Full Function, 8-ch. Digital Signal Processing
  • High-pass and low-pass filters, phase control, signal delay, and 15 channels of parametric equalization on each channel
  • Optical Digital Input
  • BT Streaming: Bluetooth Port for external APTX HD Module (optional)

Specifications:

  • Power @ 4Ω: 6 x 100 watts
  • THD @ Rated Power  < 0.5% THD
  • Power @ 2Ω: 6 x 150 watts
  • Power Bridged @ 4Ω: 3 x 300W RMS
  • Signal to Noise Ratio > 90dB
  • THD + Noise < 0.2%
  • Channel Separation  >60dB
  • Frequency Response 15Hz to 30KHz ±1dB
  • Dimensions in mm: 160(W) x 52(H) x 452(L) Overall: 160(W) x 52(H) x 488(L)

RRP $1199.00

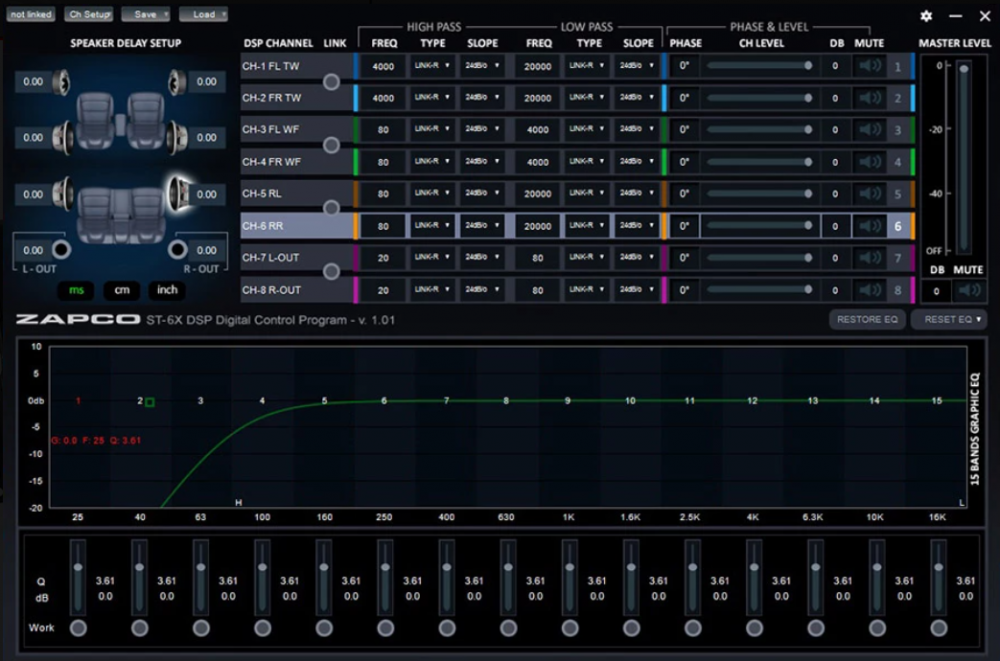

Software Download:

PC Software
Windows PC > ST-X DSP 6-8

Mobile APP
(software still in debug processing)
Android Devices > A-APP v.1.0
iOS Devices > i-APP v.1.0
