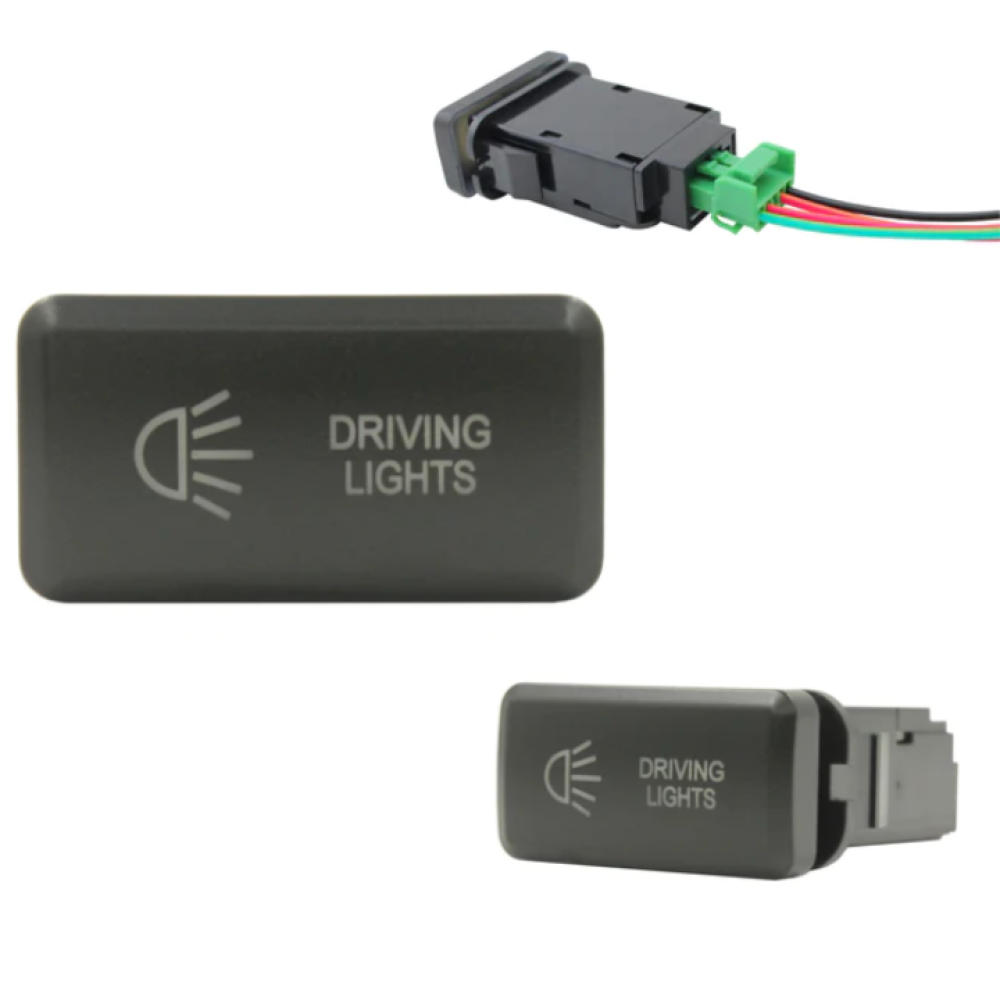

WESTEC HORIZONTAL SPST LED SWITCH TO SUIT BIG TOYOTA - DRIVING LIGHTS

This push button on/ off switch has dual white illumination and is super easy to install - get that perfect factory look without cutting panels.
Code: WSW-TOY1HZ-DL
Brand: WESTEC

Specifications:

  • Size - 20mm x 40mm x 61mm
  • Power Rating - 12V DC 3amp
  • Illumination - Dual White
  • Switch Style - SPST on/ off
  • Designed for Positive Switching Only
  • Will suit the following Toyota (currently known by Westec):
    • Landcruiser 79 Series

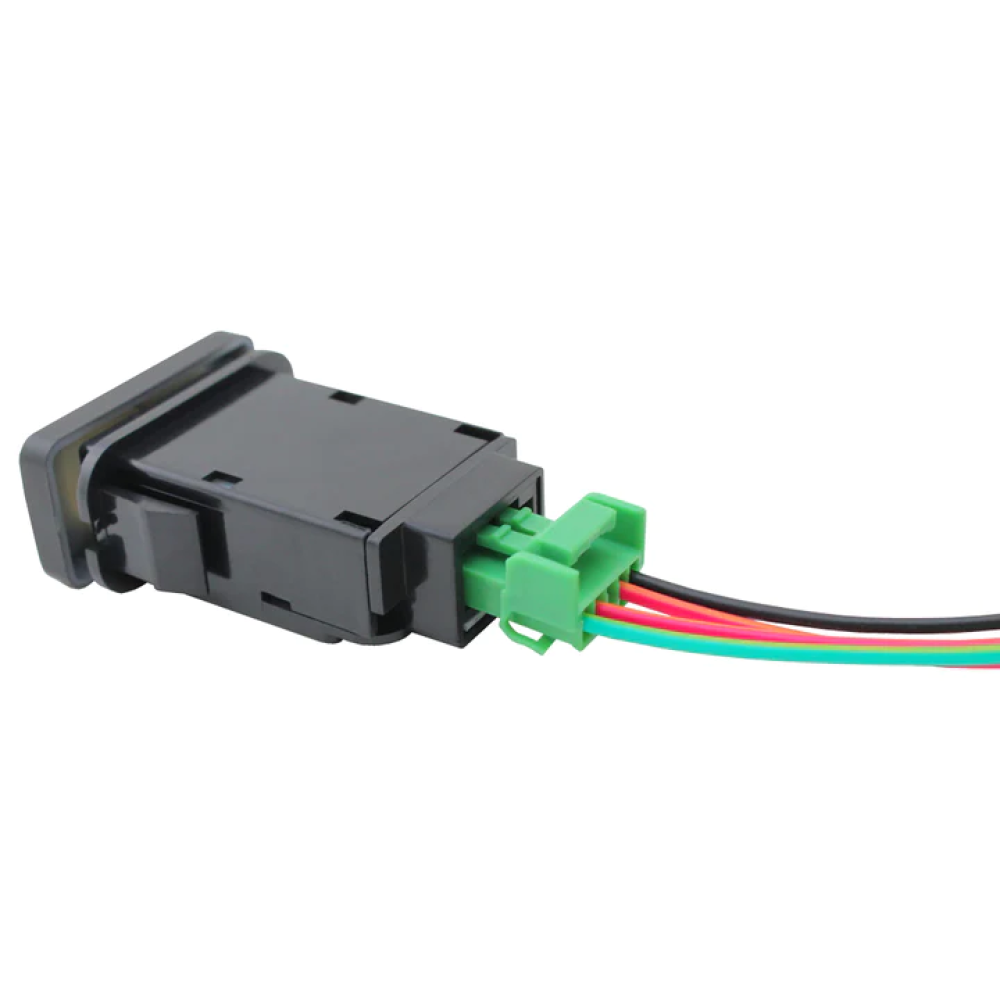

Wiring (Left to Right):

  • Pin 1 (Green) - Positive Input -
    • Wire Direct to Battery or ACC+
  • Pin 2 (Red) - Positive Output -
    • Wire to Relay
  • Pin 4 (Red) - 12V Positive Illumination -
    • Connect to Vehicle Illumination
  • Pin 5 (Black) - Earth Wire -
    • Run to Vehicle Ground/ Earth
