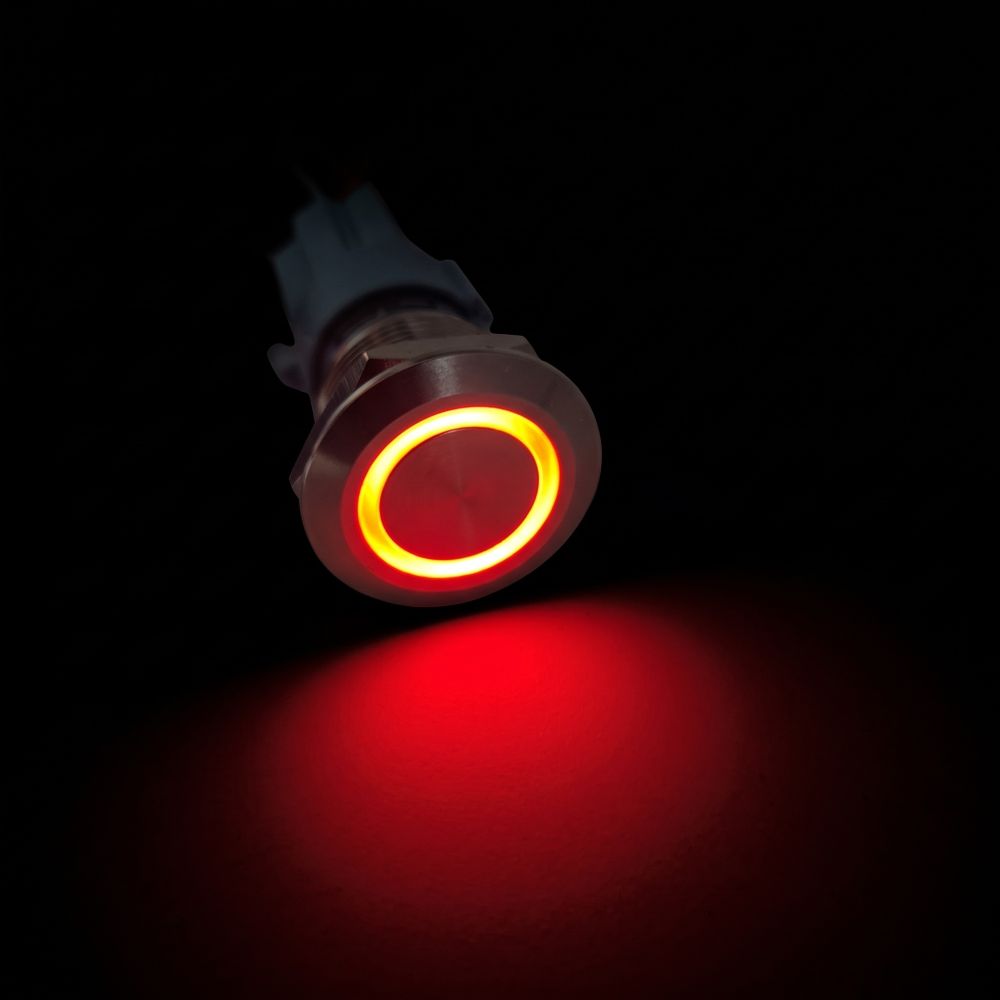

WESTEC HEAVY-DUTY STAINLESS-STEEL WATERPROOF ON OFF SWITCH - RED
| Marine and Mining grade, Stainless Steel waterproof heavy-duty push on-off switch with RED LED light. 19mm Hole - 25mm face 12-36VDC - 15cm harness included |
|
| Code: | WSW-SSHD-RD |
| Brand: | WESTEC |

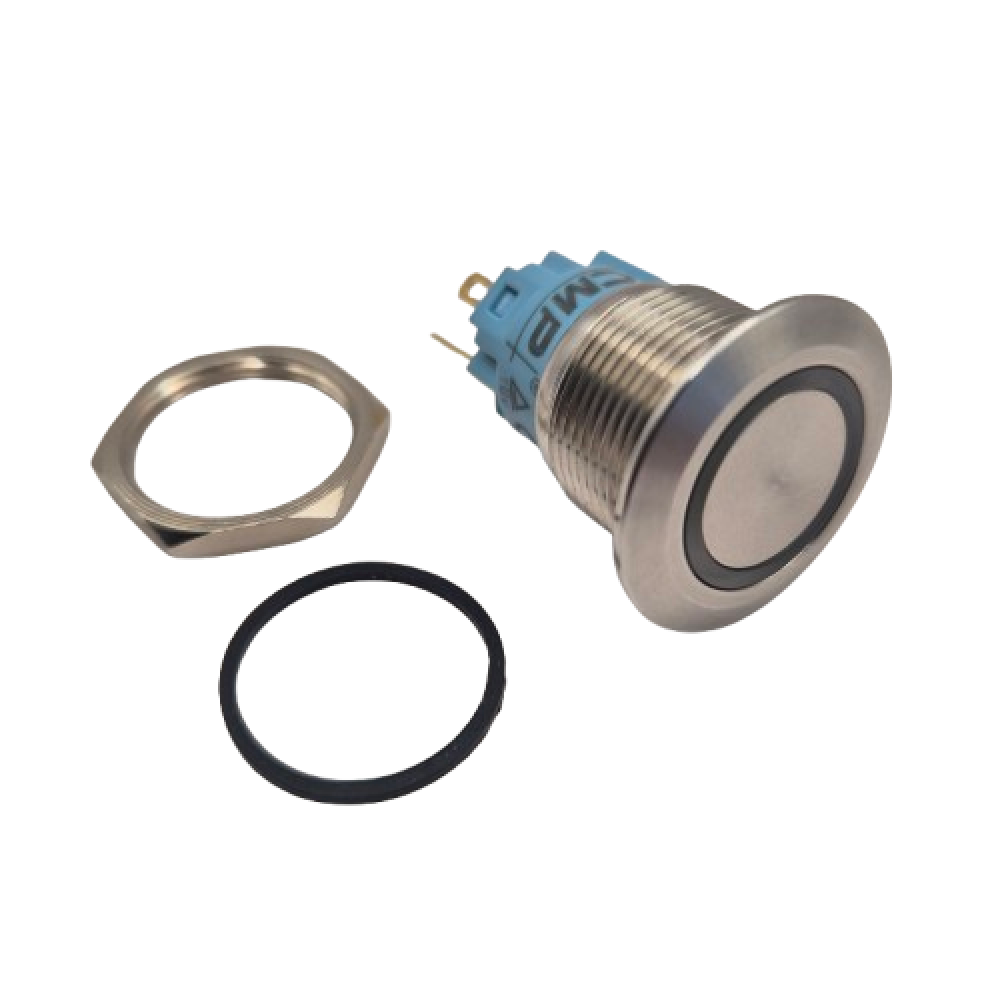

Our great range of Mining and Marine-spec LED push switches are designed for the tough environments. With an IP67 IK10 water-proof rating, these can be used around water and dust without damaging the switching mechanism.
Using Stainless-Steel 304 for the housing and 316 for the head, it ensures long use without wear and tear breaking down the switch.
Our switch also offers a wide voltage rating - working with 12-36Vdc at 5amp. It uses a Flat-head style switch face for a smooth finish and offers 1NC and 1NO contacts for Normally Open or Normally closed switch-wiring. It also allows you to set the LED light to be on all the time or only when the switch is pressed.
Specifications -
Colour LED - Red
Voltage - 12-36VDC at 5amp max
Material - Stainless Steel 304/306
Hole Cut-Out Size - 19mm
Face Size - 25mm

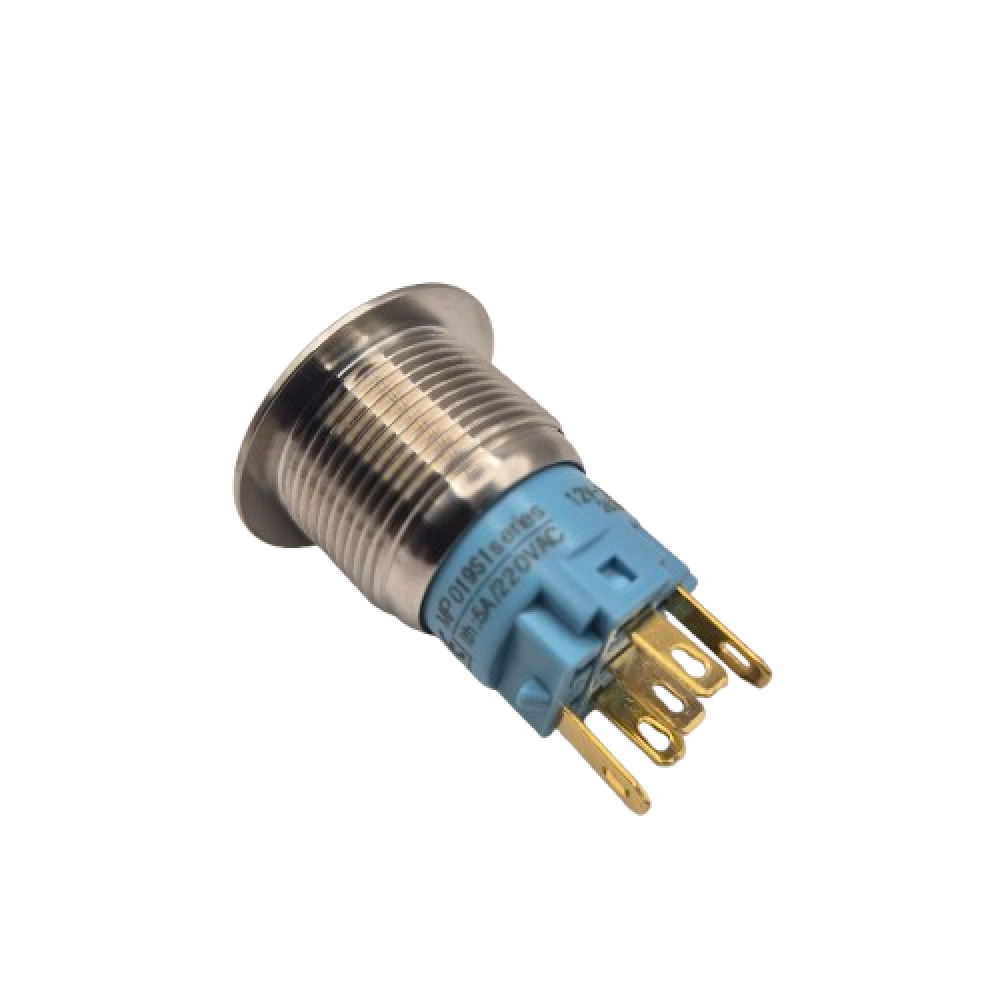

Switch Depth - 36mm (to end of pins)
Switch Mech - On-Off Locking
Switch Style - 1NO/1NC
Operating Temp - -20 / 60 Degrees Celsius
Wiring Harness Included - 15cm 5pin
Wiring Colours -
Green - Constant DC Power in Positive
Blue - NC
White - NO
Black - Switch Positive Out
Red - Switch Negative In
OUR DIFFERENCE -
This style of switch is available from many manufacturers on the market. The difference with ours is our mounting face width. We offer a 25mm wide face (competitors 21-22mm max) allowing an easier mount when drilling into panels.
