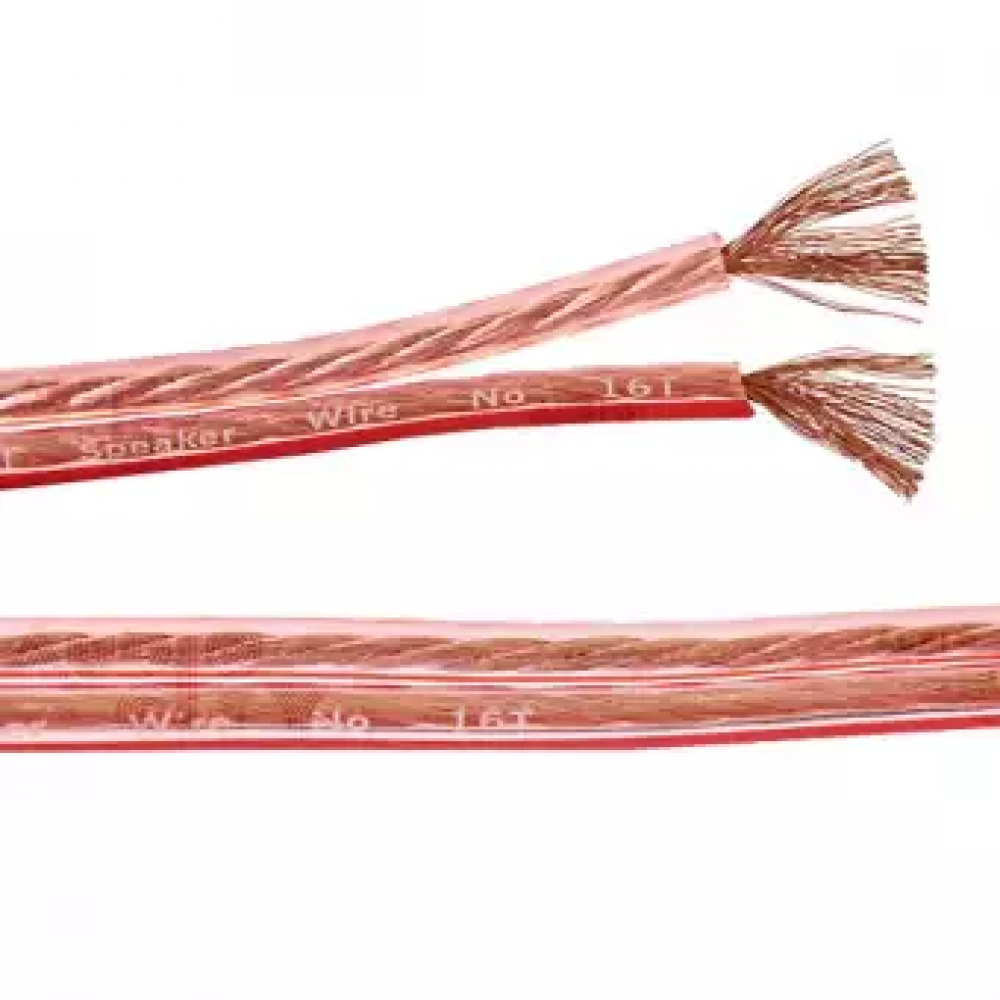

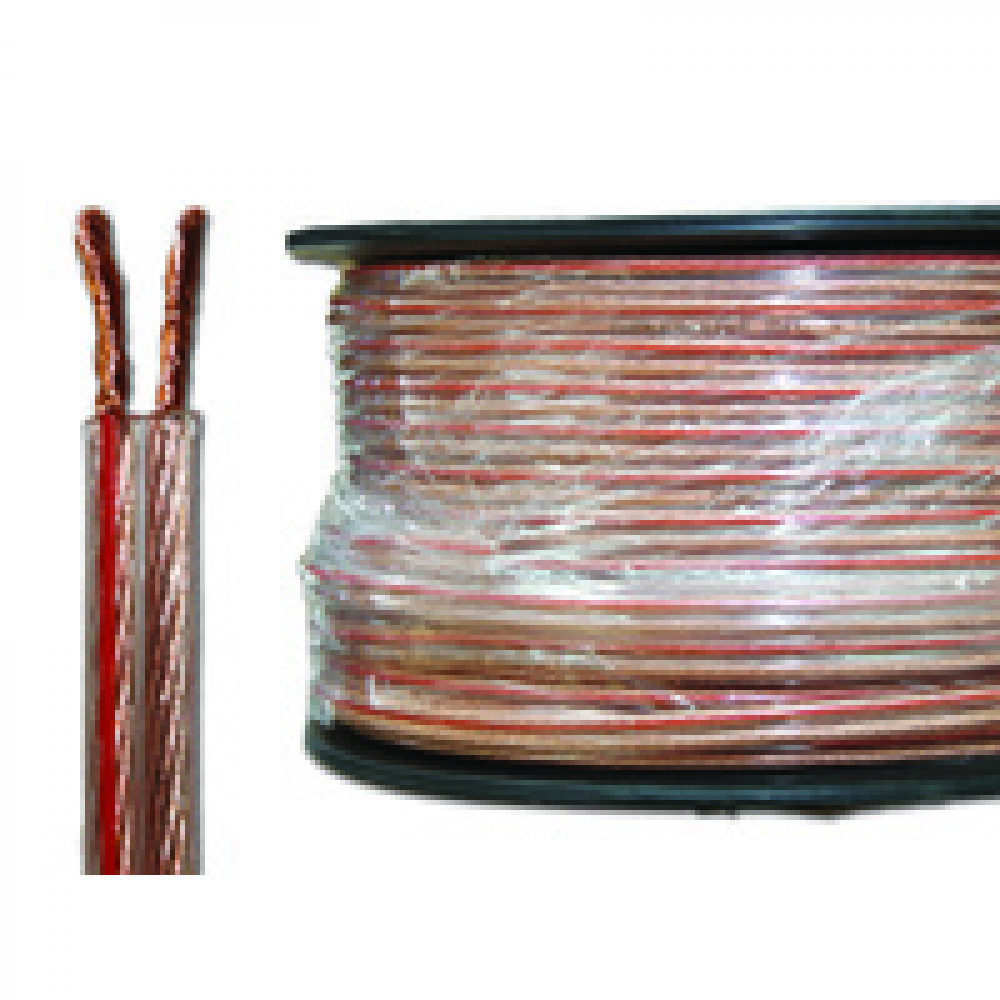

WESTEC AUSTRALIAN MADE 12 AWG SPEAKER CABLE - 100M CLEAR

Figure 8 cable parallel webbed V90 - clear cable with a red trace. Insulation complied to AS/NZS 3808.
Code: W12SC
Brand: WESTEC

Features:

  • High electric and thermal conductivity
  • Since OFHC contains oxygen and impurities in very small quantities only, it shows excellent electric conductivity and thermal conductivity (Oxygen and impurities reduce the conductivity).
  • Excellent hydrogen enbrittlement resistance: (TPC) Tough pitch copper becomes very brittle when it is heated at higher then 6000 C under a reduction gas atmosphere including hydrogen gas.
  • Since OFHC contains a very low oxygen content only, it does not show any brittleness

Specifications:

  • Application: General Speaker connections
  • Core Number: 2
  • Number of Strands x Wire Diameter (mm): 84/0.20
  • Nominal Area (mm2): 2.6
  • Average Insulation Thickness (mm): 0.80
  • OFHC: 7.21
  • Nominal 0.D. (mm): 4.25 x 8.90
  • Mass (kg/100m): 8.00
  • Conductor: Plain Copper conductor to AS1125 complied
  • Insulation: V90HT to AS/NZS 3808 UV Stabilized complied
  • Voltage Rating: 50V AC / 120V DC
  • Colors: Clear with red trace
  • Roll: 100m
