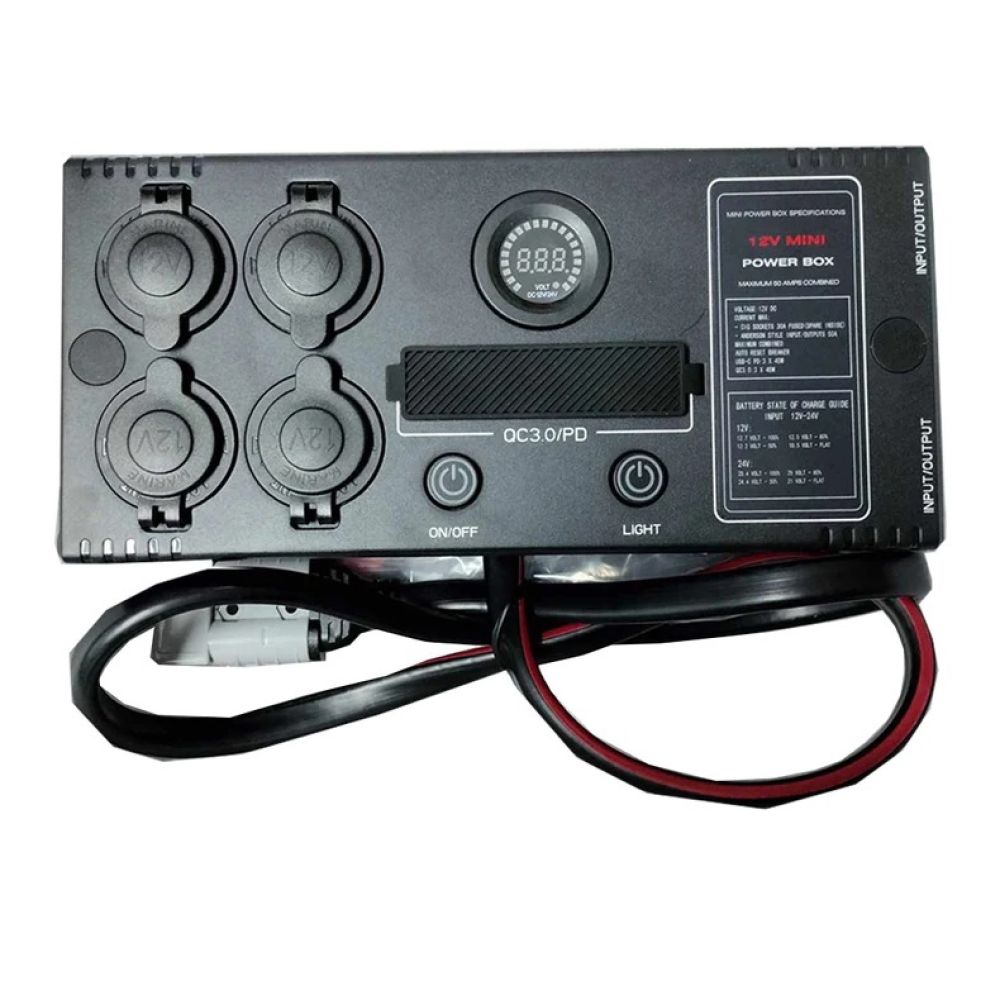

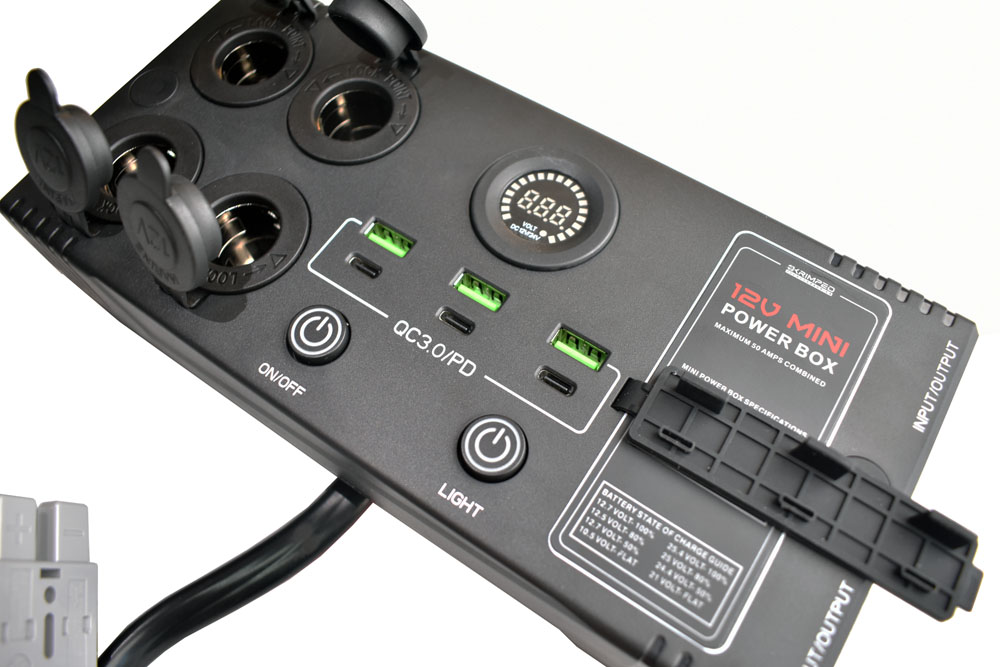

WESTEC 12V ANDERSON 50AMP MINI POWER DISTRIBUTION BOX
*ONLY 13 LEFT IN STOCK* This 12V power box connects to your vehicles 50amp Anderson plug and provides a very useful 12V accessory solution. |
|
Code: | WPB-12V |
Brand: | WESTEC |
Features:
- This power box includes the following -
- 1x Anderson 50amp Plug with 1m lead for the input.

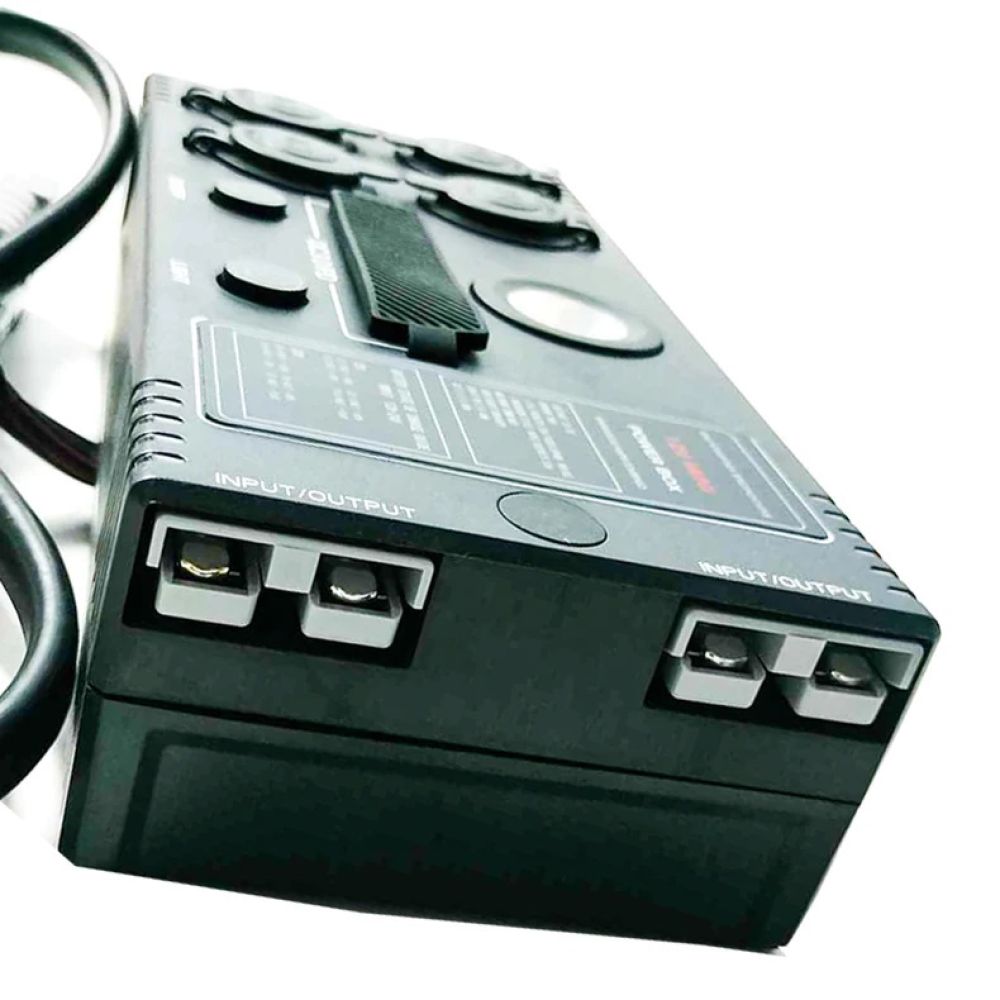

- 2x Anderson 50amp Sockets for inputs or outputs.
- 4x 12V locking accessory 10amp sockets.
- 3x QC3.0 USB charging sockets.
- 3x PD USB-C charging sockets.
- 1x DC Voltmeter

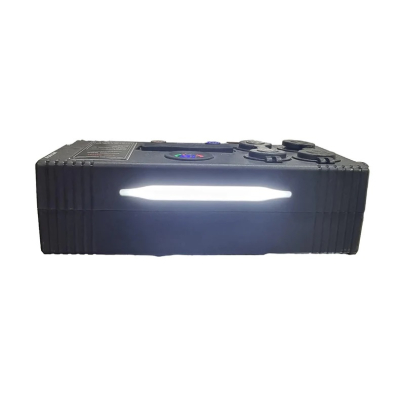

- 1x LED Light
- Mounting holes with plug covers on power box for fixing to walls/ panels on vehicles.
*Please note: Power box is internally fused and includes a resettable circuit breaker. To access these, there are screws under rubber stops that will need to be removed.
Specifications:
- Dimensions: 24 (L) x 11.5 (W) x 6.2cm (H)
- Voltage: 12 Volt DC
- Current Max:
- Accessory sockets 10A fused (spare inside)
- Anderson style input/ outputs 50A
- Auto reset circuit breaker
- USB-C PD Sockets: 3x 45W
- OC3.0 Sockets: 3x 45W
- Battery State of Charge Guide:
- 12.7V – 100%
- 12.5V – 80%
- 12.2V 50%
- 10.5V – Flat
- Input Connection:
- 50A anderson connector
- 1m 8B&S cable
