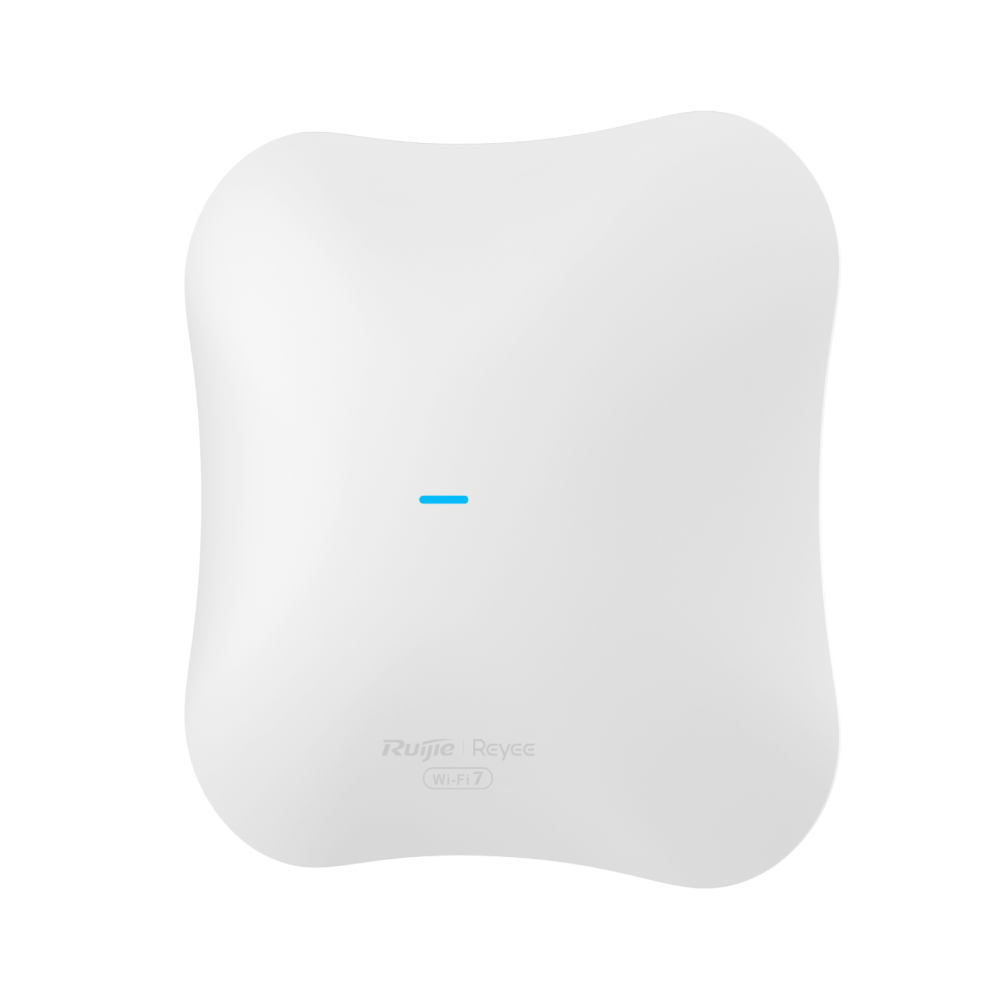

RUIJIE WIFI-7 BE5040 DUAL-BAND CEILING ACCESS POINT

Description:

Ruijie Reyee's R-RAP72PRO is a Dual-Band Ceiling Access Point that gives next-generation performance with Wi-Fi 7 capabilities, delivering extra-high wireless speeds with a maximum throughput of 5011 Mbps data rate over 5 GHz and 2.4GHz.

Key Features:

• Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
• Superior streaming with Wi-Fi 7's exclusive MLO feature
• Compact design and easy installation
• Enhanced data transmission with 4K-QAM for faster speeds
• Ideal for integrating with enterprise switches to create a robust office network

Specifications:

5 GHz Wi-Fi Protocols:

• Wi-Fi4: IEEE 802.11a/n
• Wi-Fi5: IEEE 802.11ac Wave2
• Wi-Fi6: IEEE 802.11ax
• Wi-Fi7: IEEE 802.11be

5 GHz Spatial Streams:

• 3 spatial streams, 3x3 MIMO

2.4 GHz Wi-Fi Protocols:

• Wi-Fi4: IEEE 802.11b/g/n
• Wi-Fi6: IEEE 802.11ax
• Wi-Fi7: IEEE 802.11be

2.4 GHz Spatial Streams:

• 2 spatial streams, 2x2 MIMO

Wireless Data Rates:

• Max. throughput: 5011 Mbps
• 2.4 GHz: 688 Mbps
• 5 GHz: 4323 Mbps

Number of 10/100/1000BASE-T Ports:

• 1

Number of 10/100/1000/2500BASE-T Ports:

• 1

Power Supply:

• 802.3at PoE, 12V/2.5A DC

Operating Temperature:

• 0°C to +40°C (32°F to +104°F)

IP Rating:

• IP41

Max/Recommended Clients:

• 511/110

Dimensions & Weight (excluding mounting kits):

• 208 mm x 208 mm x 40 mm ( 8.19 in. x 8.19in. x 1.57 in.)
• < 0.65 kg (1.43 lbs.)

Certification:

• CE, RoHS, FCC, ISED, cTUVus
