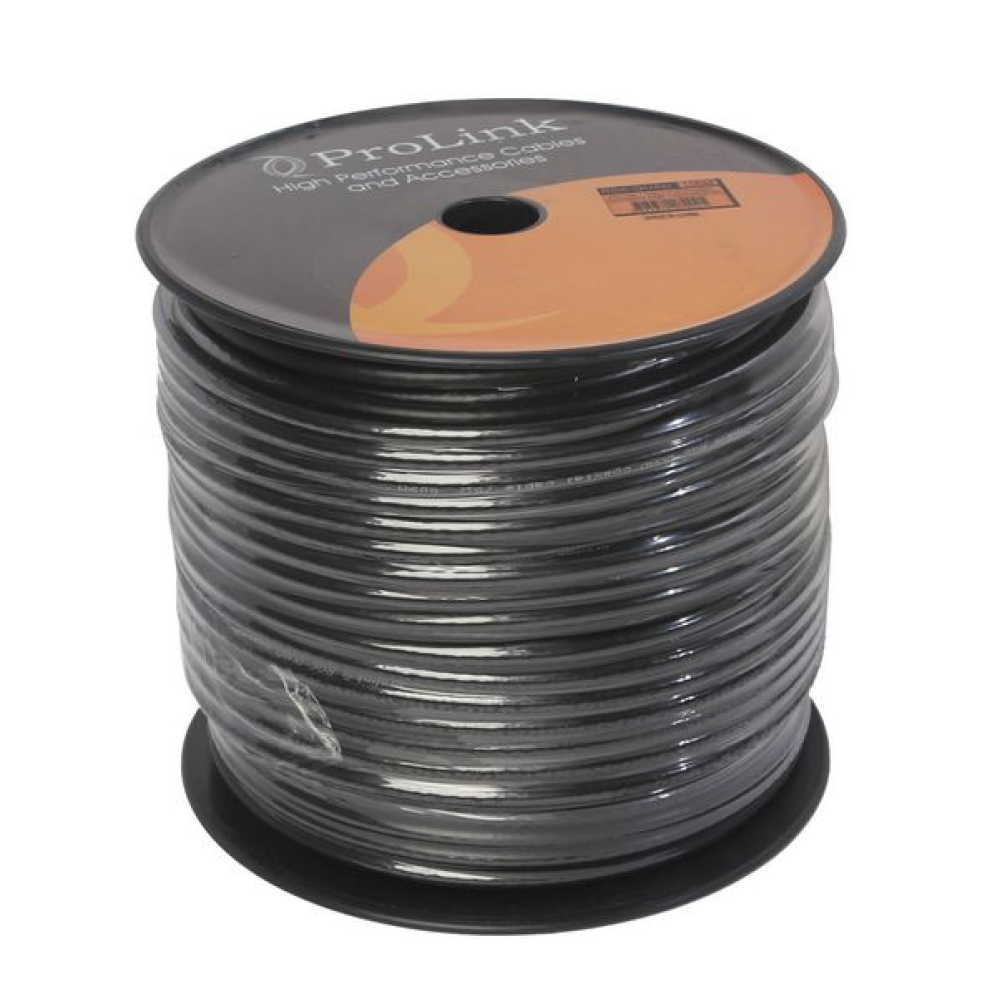

PROLINK RG6QUAD COAX CABLE - 100M
| Inner conductor is a copper clad steel wire within a gas injected polythene foam dielectric. The shielding is 2x screening of Aluminium tape covered with woven Aluminium braid outer conductor. | |
| Code: | RG6BQ |
| Brand: | PROLINK |
Specifications:
- 1.02mm copper clad steel centre conductor (Conductivity 20%)
- 2x Aluminium 60% braid & 2x Sealed APA tape
- Dielectric:4.57mm Foam Polyethylene
- First Shield:Bonded AL Foil
- Second Shield:60% AL Braiding
- Thrid Shield:AL/PET
- Fourth Shield:40% AL Braiding
- Suitable for UHF, Pay, Satellite - Ø7.45mm Jacket (CM RoHS)
- Nominal Impedance(Ω): 75±3
- Nominal Velocity of Propagation(%): 85
- Nominal Capacitance (pF/M): 50
- Speaker Test (VAC): 4000
- Attenuation (dB/100m):
- 4.538 @ 55MHz
- 8.522 @ 211MHz
- 12.828 @ 450MHz
- 18.254 @ 870MHz
- 19.642 @ 1000MHz
- 23.899 @ 1440MHz
- 29.673 @ 2150MHz
- 35.386 @ 3000MHz
