RESI-LINX 3IN-8OUT COMBINER / AMPLIFIER SPLITTER WITH IR REMOTE RETURN
- IT'S PATENTED DESIGN IS FOR WHOLE-HOUSE VIDEO DISTRIBUTION WITH IR CONTROL

- THE SPLITTERS HAVE REVERSE PATH IR CONTROL, THAT WHEN COMBINED WITH OTHER PRODUCTS IN THE IR RANGE, WILL ALLOW YOU TO CONTROL THE AV INPUTS FROM OTHER LOCATIONS
Code: RL-RF380
Brand: RESI-LINX
Price Excludes GST

FEATURES:

- The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.

- Active, low loss combiner and splitter with 3 inputs, 8 outputs

- Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.

- When combined with gain control on modulator, allowscomplete balancing of signals

- FM trap On/Off switch to filter 88-108MHz signals from transferrring through to output ports to eliminate FM interference to TV reception

SPECIFICATIONS:

- Output Frequency Pass: 30KHz to 850MHz

- Number of output: 8

- Number of input (Modulator / ANT): 3

- Gain / Loss

- ANT: +2dB

- Modulator: +3dB

- Output run distance: 60 metres

- Isolation (Modulator inputs to ANT): -80dB

- Weight (g): 405

- Size (mm): 135 (l) x 69 (w) x 22 (d)

- Input: 110 - 240V AC

- Output: 12V DC - 1.5A Switch Mode

- Connections - Power Out 1.8mm length with 2.1mm minijack socket

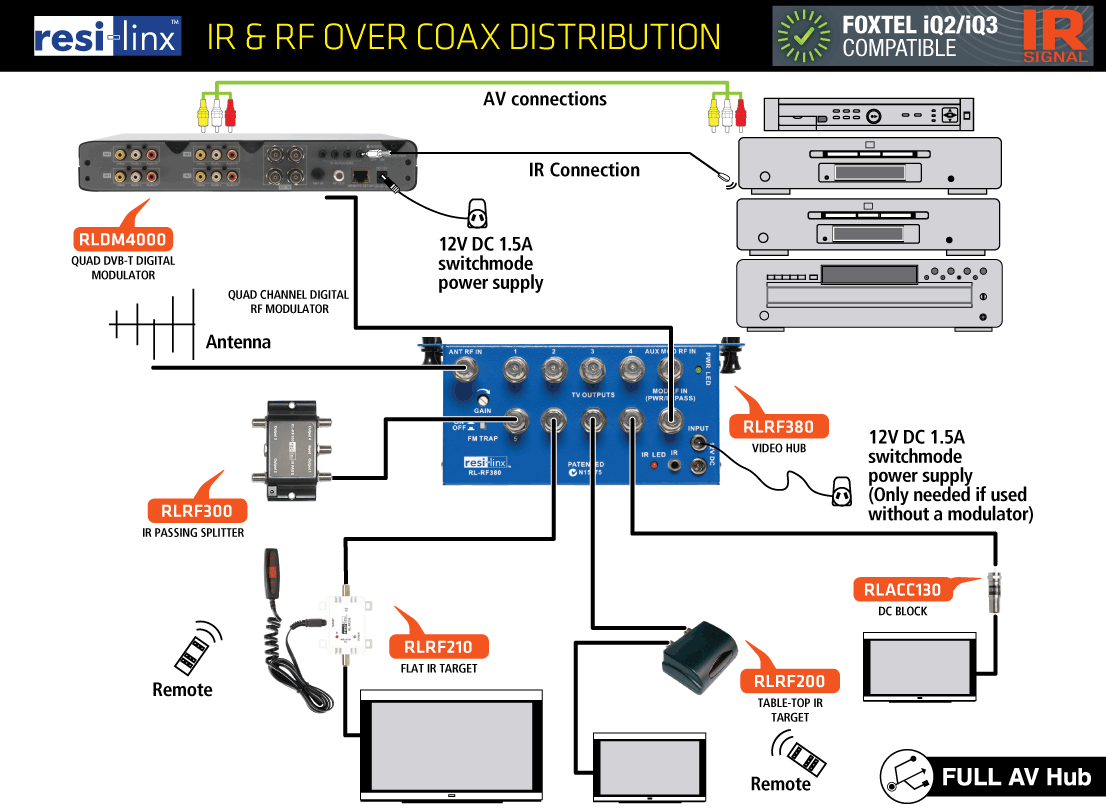

Connection diagram
