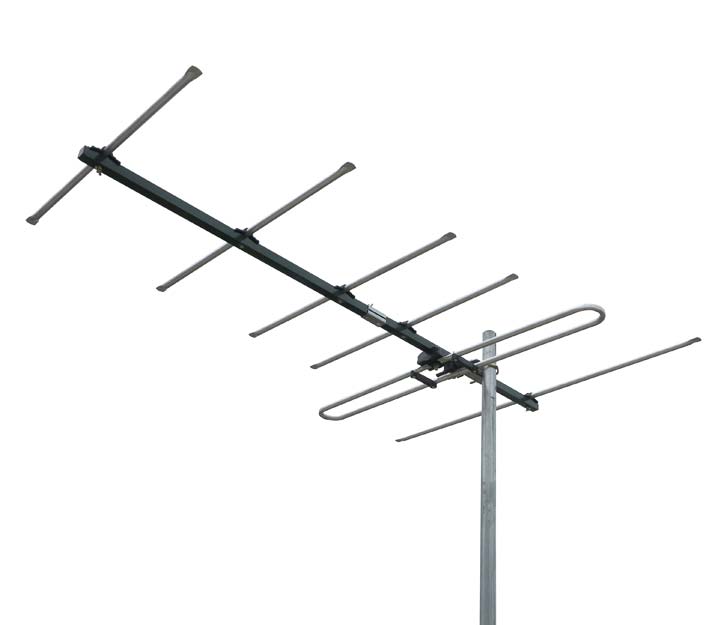

MATCHMASTER 8.1dB DIGITAL VHF TV ANTENNA

A six-element Yagi style antenna receiving channels 6-12 with a maximum gain of 8.1dB. The antenna features a 4G/5G LTE filter built in to help eliminate interference and deliver you the best possible pictures for your viewing.
Code: DR3006
Brand: MATCHMASTER

Features:

  • With the elements constructed from heavy-duty 12.7mm extruded aluminium tube, the DR3006 is well designed to handle the harsh Australian environment
  • The DR3006 is suited for most metro band three reception areas, including the reception of DAB+.
  • 6 element VHF yagi antenna
  • Receives channels 6-12
  • 4G/5G LTE 652MHz low pass filter
  • 12.7mm heavy-duty extruded elements for maximum strength and durability
  • 8.1dB maximum gain
  • Snap lock design for fast installation

Specifications:

Elements 6
Band B3
Channels (6-12)
Maximum Gain 8.1dB
Front/Back Ratio 16dB
AV VSWR 1.6:1
Boom Dimension 25 x 19mm
Boom Length 1195mm
