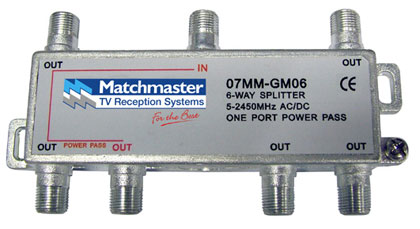

MATCHMASTER 6-WAY 'F' SPLITTER

Covers frequencies from 5 to 2450Mhz, making it ideal for satellite and terrestrial connections. It's a single port power pass splitter supporting both AC and DC voltage throughput and can also power in reverse via the input port to the output.
Code: GM06
Brand: MATCHMASTER

Features:

  • Frequency range: 5-2450MHz
  • AC/DC single port power pass
  • 10dB extra screening with soldered back
  • High visual impact packaging
  • High isolation between outputs
  • In addition, the GM series splitters are available from 2 way to 8 way to cater for all of your needs.

Specifications:

Insertion Loss 10.4-14.5dB
Frequency Range 5-2450MHz
Isolation/Outputs ≥25dB
Screening ≥55dB
