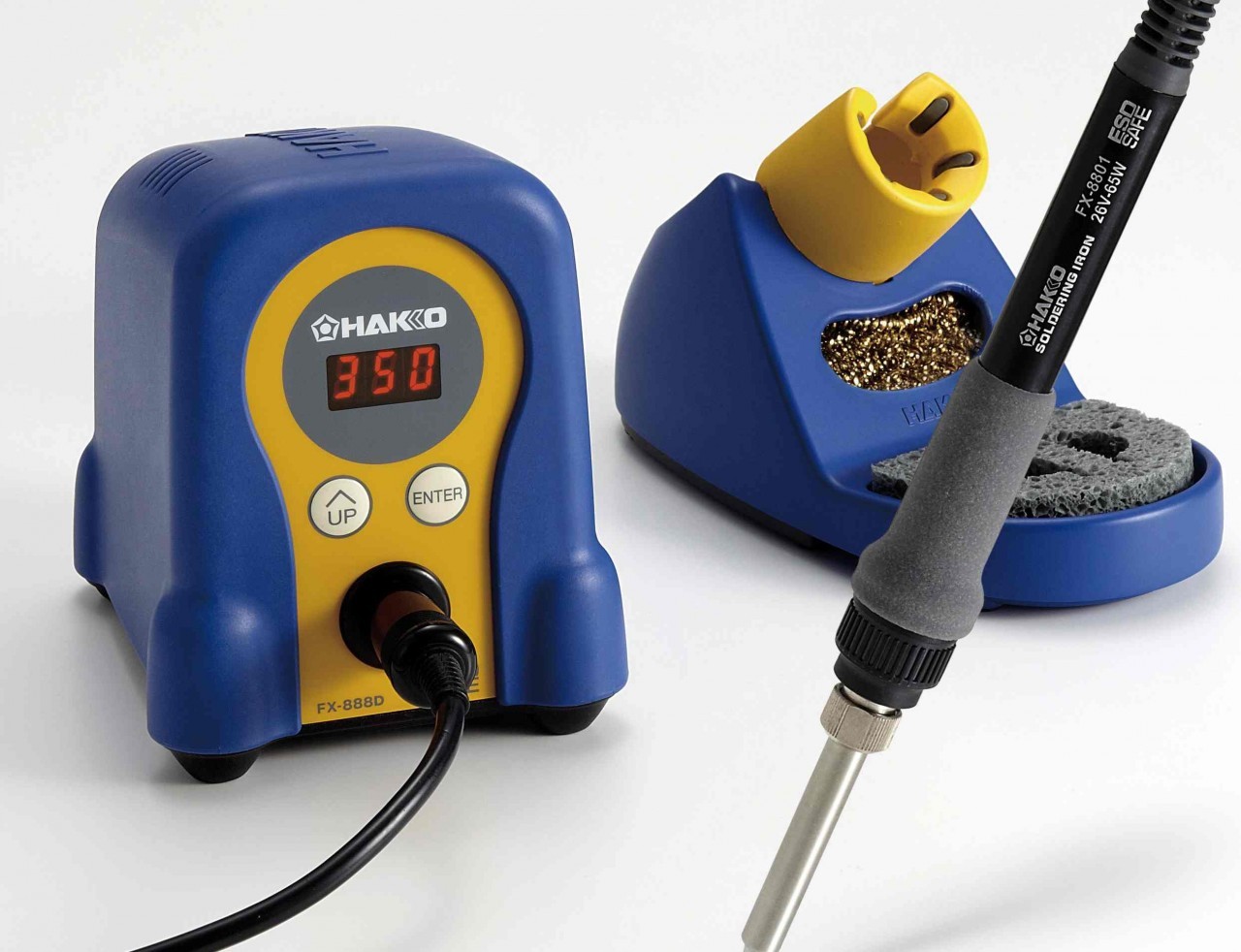

HAKKO DIGITAL SOLDERING STATION

Compact station which delivers excellent thermal recovery. Heater output has been increased by 30% compared to that of the conventional models. Simple and easy operation equipped with digital display, password, pre-set and adjustment mode.
Code: FX888D
Brand: HAKKO

Features:

  • Delivers excellent thermal recovery by using T18 series tips for their terrific heat conductivity. This allows soldering at a lower set temperature and reducing the thermal impact on components as well as tip oxidation that can shorten tip life.
  • Compact station with the feet placed on the outer corners to improve stability and make the station difficult to fall over
  • Simple and easy operation with only two operation buttons of UP and ENTER
  • Highly functional iron holder is included which not only improves ease of use, but also brings a sense of visual consistency to the work environment
  • Digital display makes it easy to check the set temperature at a glance
  • Settings can be locked using a password to prevent them from being changed unexpectedly
  • Preset mode is very convenient when you want to change the set temperature to suit a particular workpiece, component, or tip shape
  • Adjustment mode: adjusts the temperature which is an essential part of any strict quality control system

Specifications:

  • Power consumption: 70W
  • Temperature range: 50 to 480ºC
  • Temperature stability: ±1ºC at idle temperature (when set to 200 to 480ºC)
  • Station output: AC 26V
  • Station dimensions: 100 x 120 x 120mm
  • Station weight: 1.2kg
  • Soldering iron:
    • Power consumption: 65W (26V)
    • Tip to ground resistance: <2Ω
    • Tip to ground potential: <2mV
    • Heating element: Ceramic heater
    • Standard tip: Shape-B (No.T18-B)
    • Cord length: 1.2m
    • Total length: 217mm (with B tip)
    • Weight: 46g (with B tip)
