PRO.2 SLIM CAT6 PATCH LEAD BLUE - 1M

The ultimate solution for maximising space in high density patch panel setups. Engineered to meet stringent specifications for crosstalk and system noise, they adhere to the CAT6 standard, providing reliable performance up to 250MHz.
*Replaces CL392BU*
Code: LC6SL0100BL
Brand: PRO.2

Features:

  • Designed for both home and commercial installations, these patch leads offer unparalleled flexibility when connecting network switches.
  • Ideal for fast Ethernet, Gigabit Ethernet and 10-Gigabit Ethernet applications, these patch leads ensure consistently robust connectivity.
  • The cable's exceptional flexibility and tight bend radius make it perfect for high-density installations, offering superior cable management.

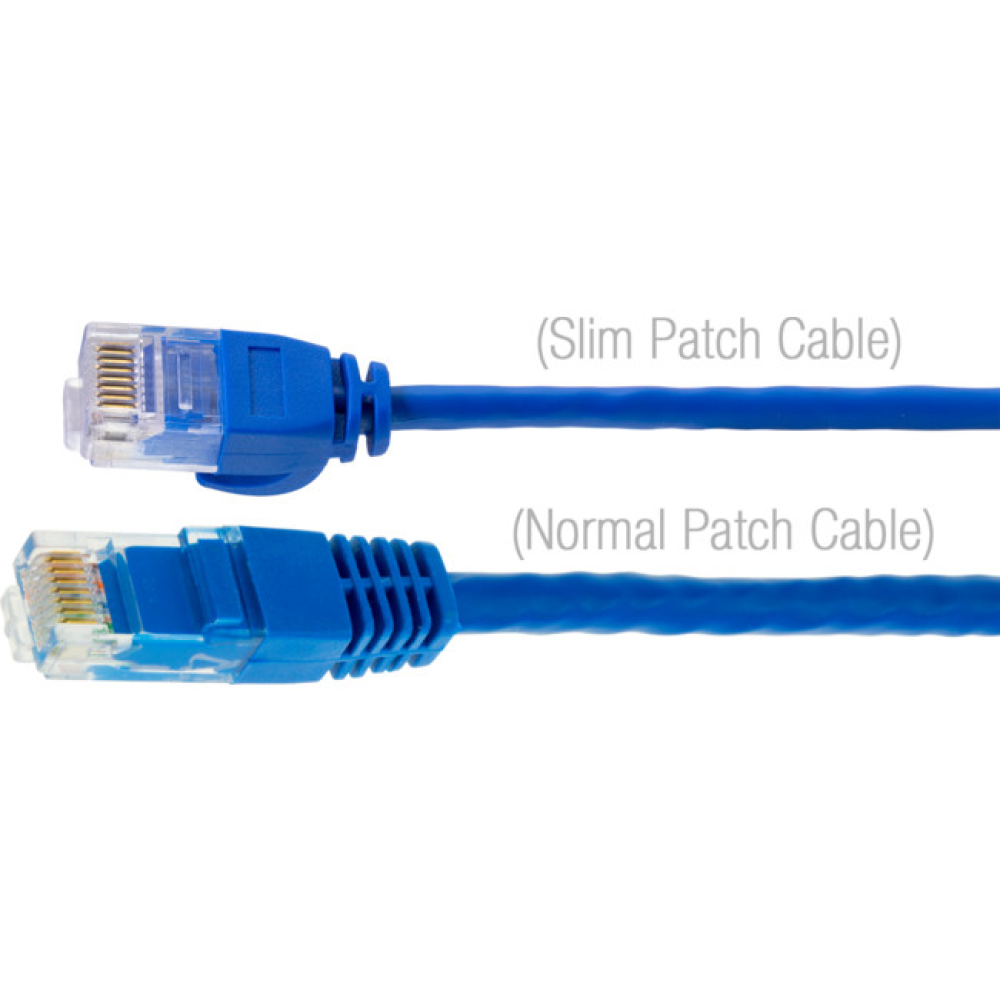

  • The reduced diameter of our patch leads allows for twice the amount of cable to be routed through cable managers and pathways compared to traditional CAT6 patch cables.
  • In high-density patch panel setups, where every inch of space matters, our Slim CAT6 Patch Leads are a game-changer.
  • The innovative design not only cuts down on bulk but also improves airflow and cooling efficiency, making them ideal for smaller data rooms.
  • Say goodbye to cable clutter while maintaining Category 6 gigabit performance.
  • Upgrade your network with the space-saving and high-performance features of our Slim CAT6 Patch Leads.

Specifications:

Cable Gauge 30 AWG
RJ45 Connector 8P8C Two fork 50µ gold plated contacts
Conductor

Material: Copper

7 strand at 0.10 mm diameter

Insulation

Material: HD-PE

Diameter: 0.52 mm

Jacket

Material: PVC

Diameter: 3.8 mm

Compliance ISO/IEC 11801 and ANSI/TIA-568-C.2 ROHS AS/CA S0008 compliant

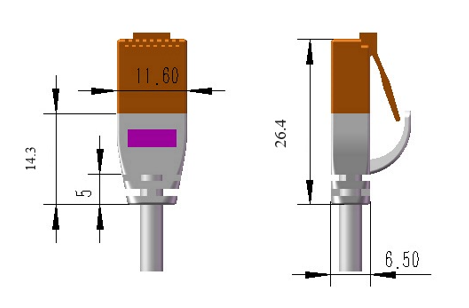

Dimensions

*Also available in black, red, green, yellow and white in lengths 0.25m to 5m
