NOYAFA MULTI-FUNCTION DIGITAL STUD/AC/DISTANCE METER

The NF518 can detect metal (Stainless steel, copper pipe), power cable & wooden beams behind walls, ceiling & ground floor. This device also has a laser meter function, allowing the measurement of length, scale, volume & carry calculations.
Code:	NF518S
Brand:	NOYAFA

Features:

Wall Detecting Function: Metal Detection / Wood Detection / AC Power Detection

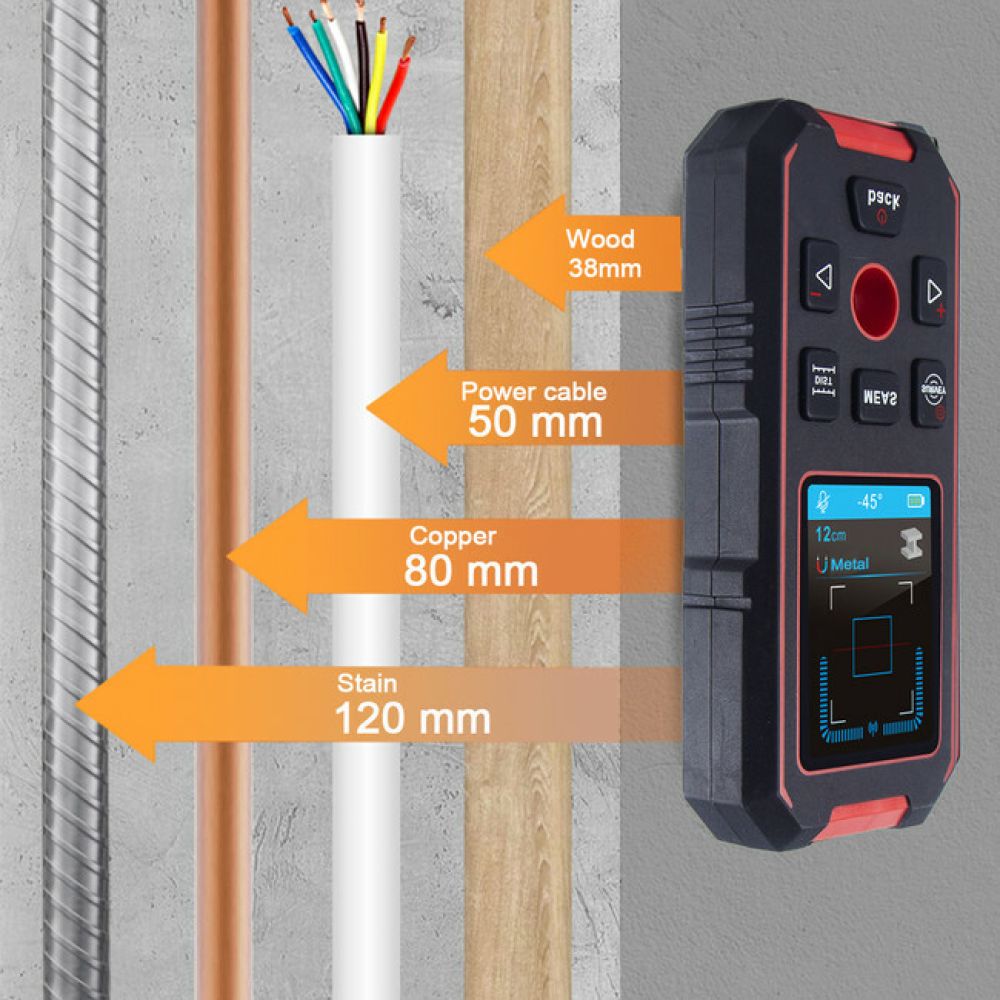

- Metal Detection: Detects magnetic metals (steel & iron) up to 120mm depth and non-magnetic metals (power cables & copper pipes) up to 100mm depth.
- Wood Detection: Detects objects such as wood, nails, or pipes under plasterboard, bare wooden floors, or plastic panels.
- AC Power Detection: Detects AC power (90V–250V) up to 50mm depth.
Laser Distance Meter Function:
- Measures distance, area, and volume.
- Supports addition, subtraction, and multiplication calculations.
Other Features:
- Built-in rechargeable lithium battery (charged via supplied USB Type-C cable).
- Central marking hole for precise measurements.
- Self or manual calibration to reduce errors and improve accuracy.
- 2.4-inch display.
- Stores up to 50 measurement records.

Function	Laser distance Wall Detection Digital level
Appearance	2 colors, solid shape
Screen Type	2.4HDscreen, 240 x 320 resolution
Charging	Type-C charging
Battery Type	Lithium Battery (390mAh)
Protect Lever	IP54
Audio Broadcast	Live Broadcast
Dimension (mm)	63 x 25 x 139 (mm)
Net.Weight(g)	200 ( g )
Laser Meter Function		Wall Detection Function
Distance	0.2-40/60m	Depth Measurement	Magnetic Metal: 12cm
Accuracy	1.5mm D x 5 out of hundred thousand		Non-Magnetic Metal: 10cm
Laser Type	630-670nm,<1mw		AC power cable : 5cm
Laser Cat	Cat 2		Wood: 3.8cm
Auto OFF	3 minutes	Metal Detection	Testing figures provided with Φ20 mm stainless pipe as tested object
Unit Switch Benchmark Switch	m/ ft/ in / ft in	Non Metal Detection	Yes
Unit Switch Benchmark Switch	Front / Bottom	AC power Detection	Yes
Continuously Measurement	Max/ Min value	Auto OFF	5 minutes
Single Measurement	Yes	Operation Temperature	0~50°c
Area Measurement	Yes	Storage Temperature	-10~60°C
Volume Measurement	Yes	Digital level Function

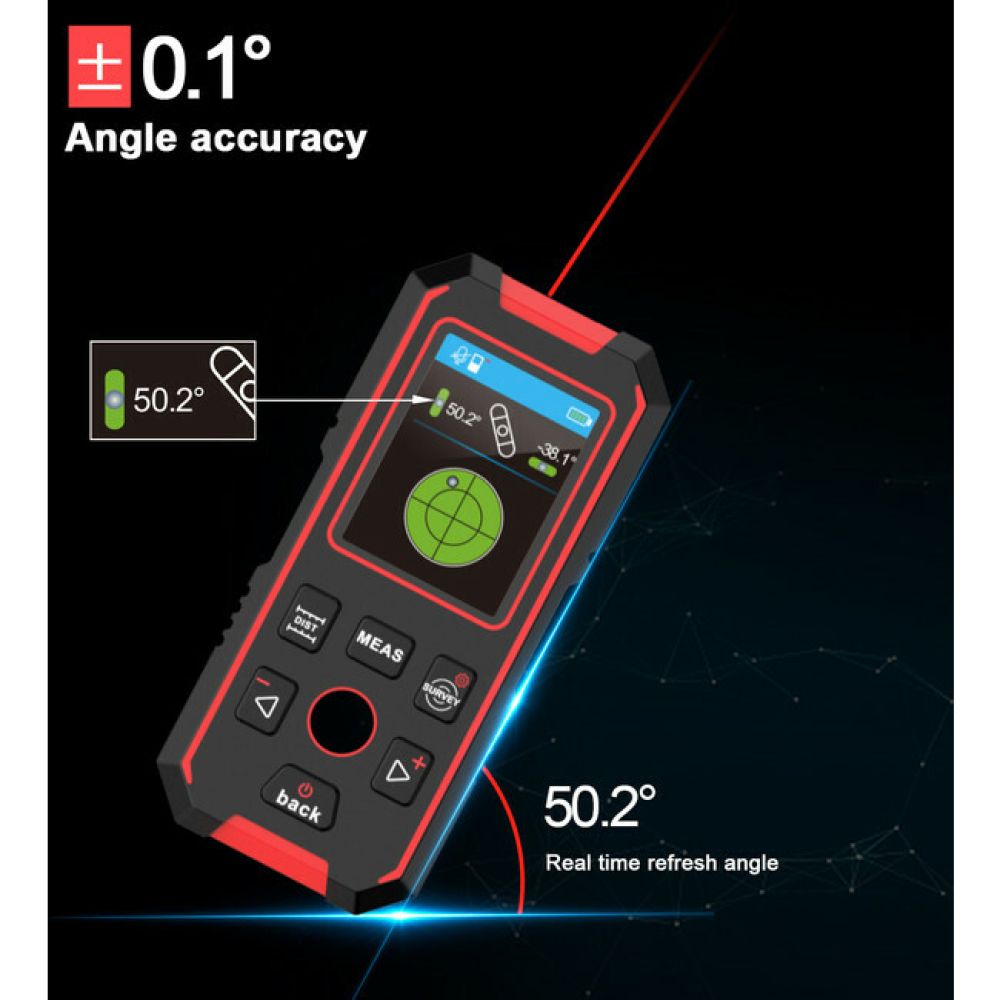

Pythagoras theorem	Yes	Digital level	±90°C
Secondary Pythagoras theorem 1	Yes
Secondary Pythagoras theorem 2	Yes
Triangle area measurement	Yes
Trapezoid measurement	Yes
Auto Horizon measurement	Yes
Auto Vertical measurement	Yes
Countdown measurement	Yes
Digital level measurement	Yes
Plus / Minus	Yes
History Record Storage	50
Self collaboration	Yes
Operation Temperature	0~40°C
Storage Temperature	-10~60°C
