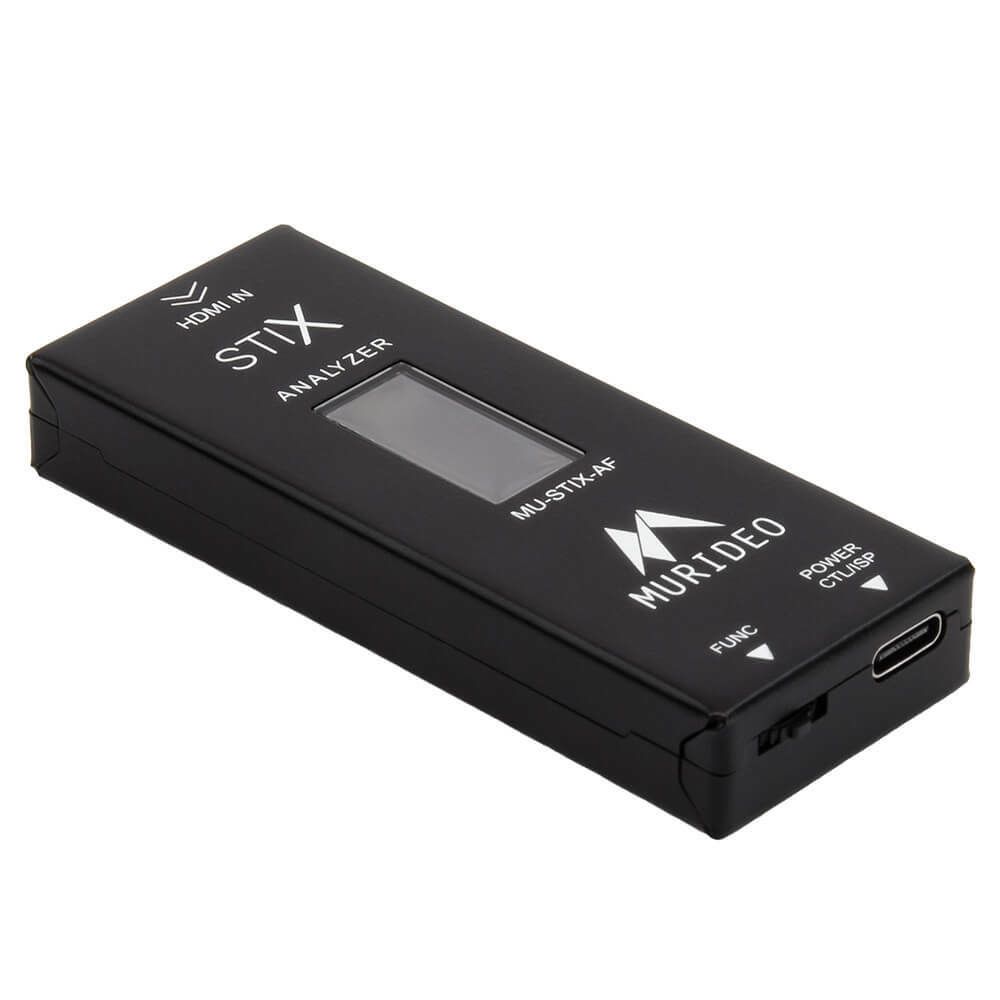

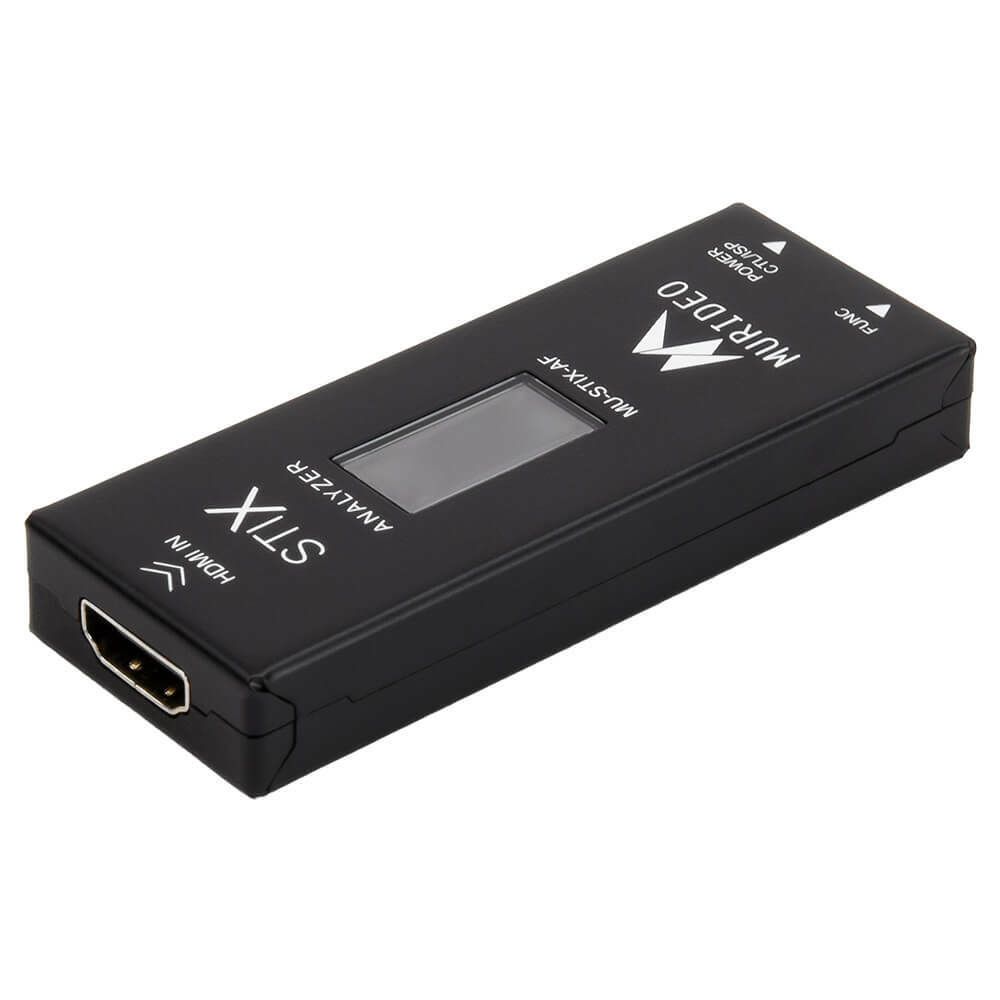

MURIDEO STIX HDMI 2.1B 48GBPS TEST SIGNAL ANALYSER - FEMALE

A compact testing tool for AVoIP and HDMI distribution systems. It provides quick pass/fail signal verification in the field and features a mini-OLED screen that displays real-time source parameters like resolution, bit rate, and HDCP version.
Code:	MU-STIX-AF
Brand:	MURIDEO

Features:

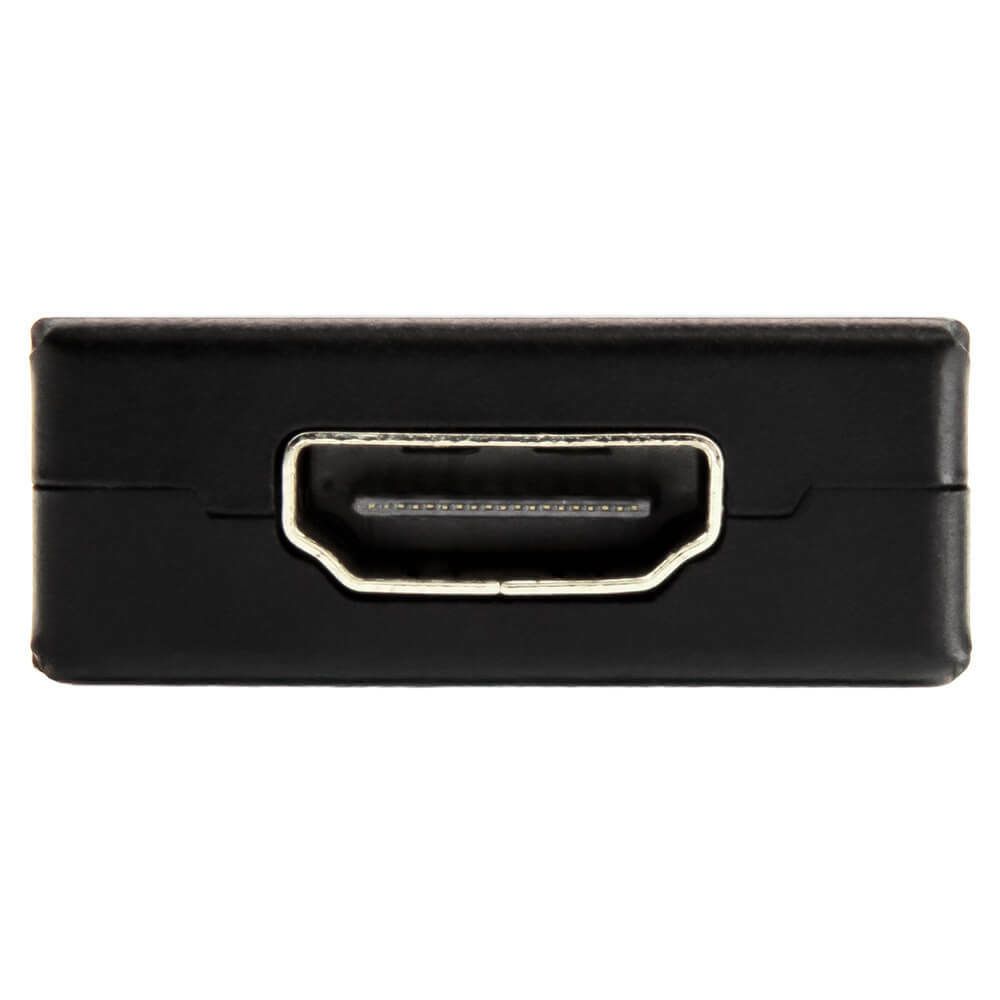

Versatile Connectivity: 19-pin Female HDMI port allowing any length HDMI cable to be used for testing and verification of devices and cable.

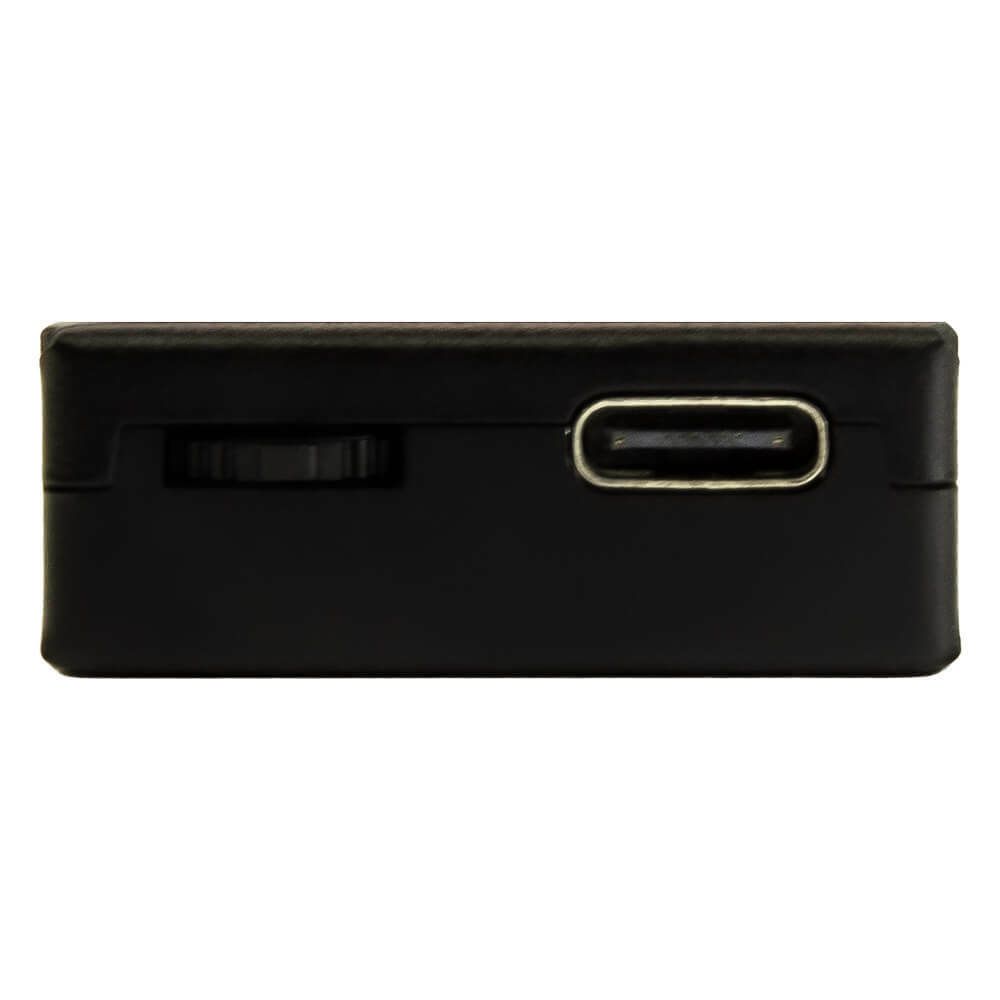

Level-Switch Interface: Enhanced menu access with new rocker switch versus the previous button-only interface.
Low-cost, flexible analyser: HDMI 2.1b, 8K, 48Gbps (FRL) compliant
Analyse signals up to 8K30/4K120: 720p, 1080p, 4K and 8K signal timings at 8, 10, and 12-bit Colour Depths, in 4:2:2, and 4:4:4 Colour Spaces
Signal Detection & Monitoring: Automatically detects and logs signal changes, sync losses and signal loss time.
Audio Analysis: Displays audio information, including audio type, sampling rate and number of channels.
Low power draw: Device powered via USB-C to USB-C or USB-A to USB-C (from AVR, display, battery or mobile device)
OLED colour screen: An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, colour space, colour depth, and HDCP 1.4/2.X versions.
Ultra-compact form factor: The compact “thumb drive sized” footprint enables easy connectivity in tight spaces and conveniently storage and carry options.

Compliance: HDMI 2.1b
HDCP Version: HDCP 2.3 / 1.x
Maximum Clock Rate: 600mscs (1188MHz)
Maximum Channel Throughput: 12Gbps (48Gbps total)
Resolution Timings:
- ???????HDMI VICs up to 8K/60hz
- DCI up to 4096×2160 /60 Hz
- VESA DMT
- VESA CVT-RB up to 600 MHz
Video Encoding: RGB, YCbCr
Colour Spaces: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2
Colour Bit Depth: 8, 10, 12-bit
