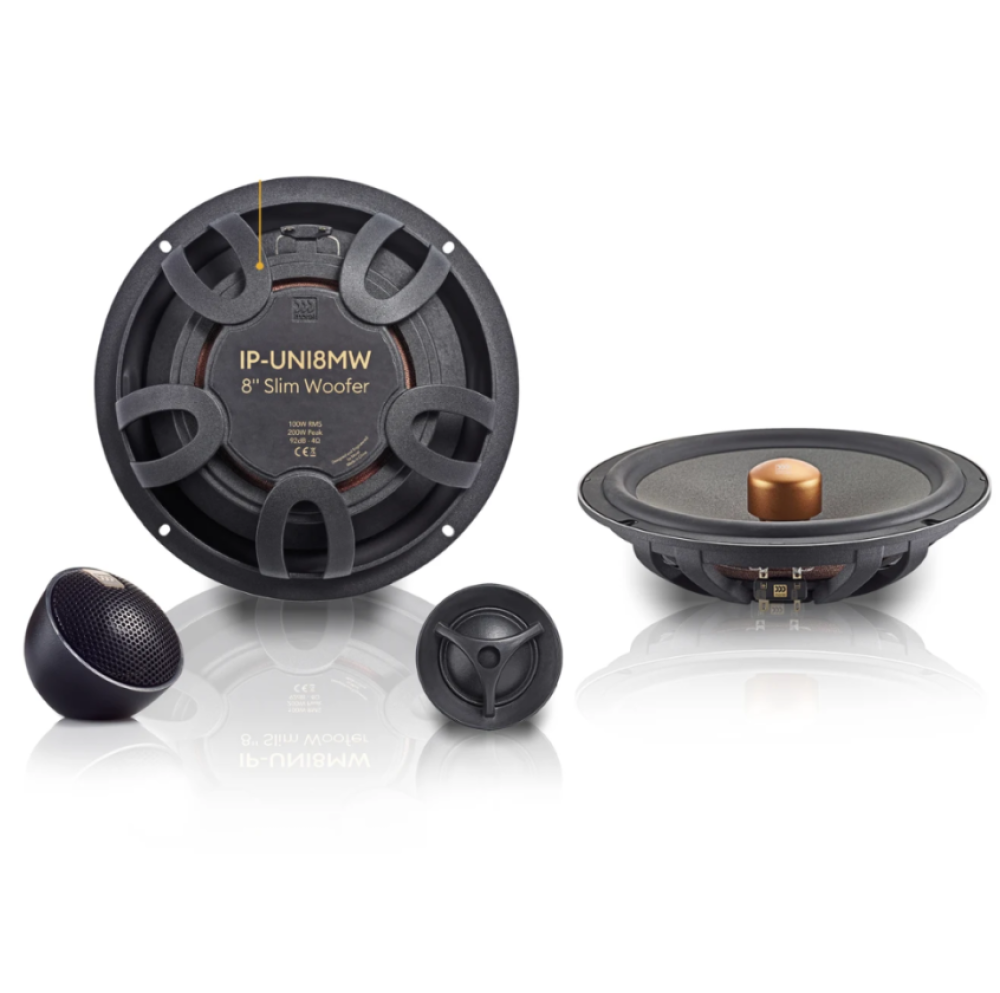

MOREL INTEGRATION SERIES UNIVERSAL 8" 2-WAY COMPONENT SPEAKERS

Features:

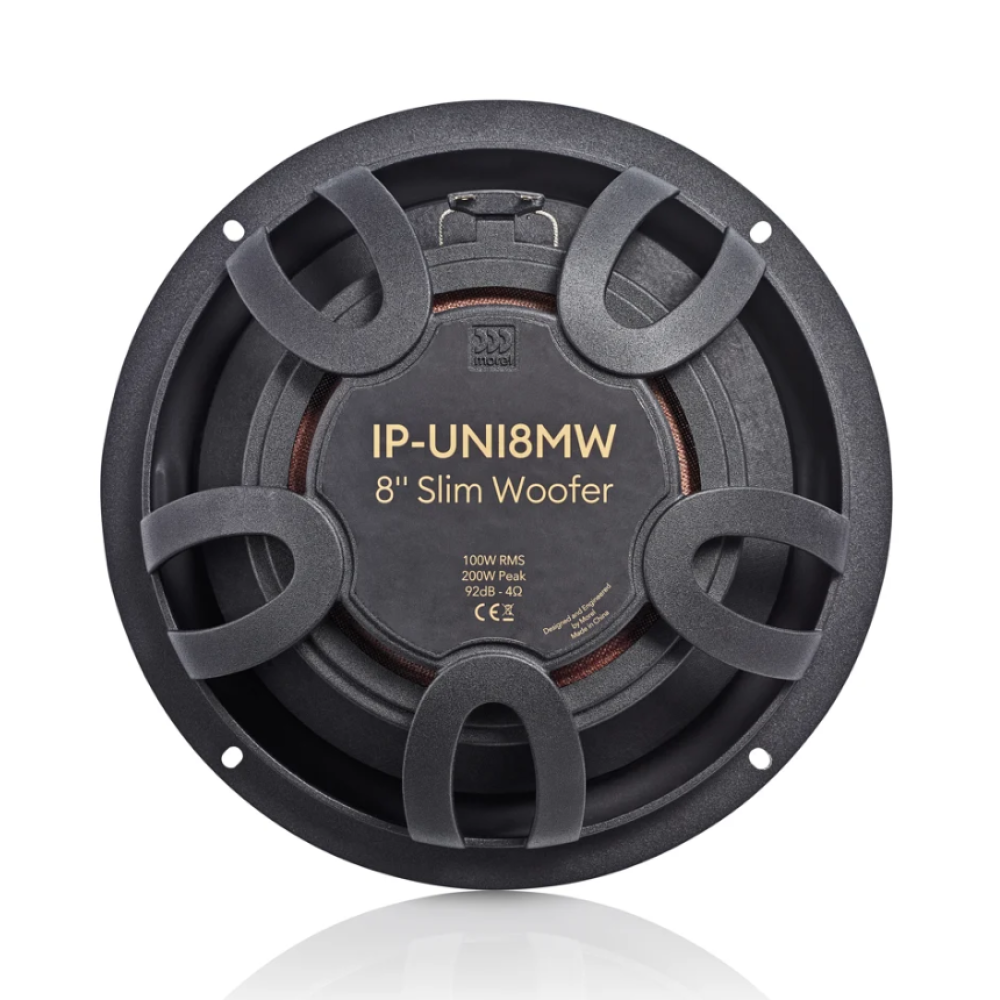

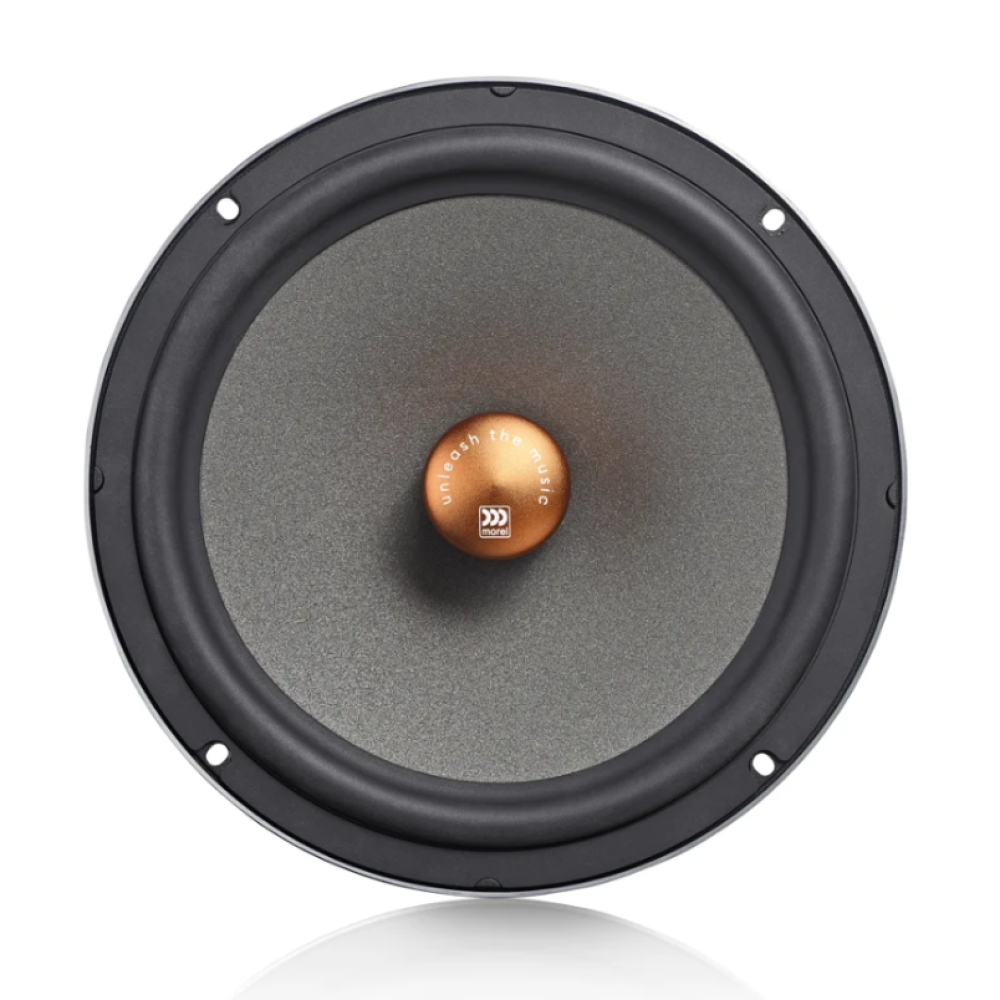

Morel Integration Performance systems prioritize easy installation and the engineers design each system with that in mind. The IP-UNI82 woofers feature our innovative inverted neodymium magnet motor that allows us to design a proprietary chassis with a compact form factor with minimal mounting depth.

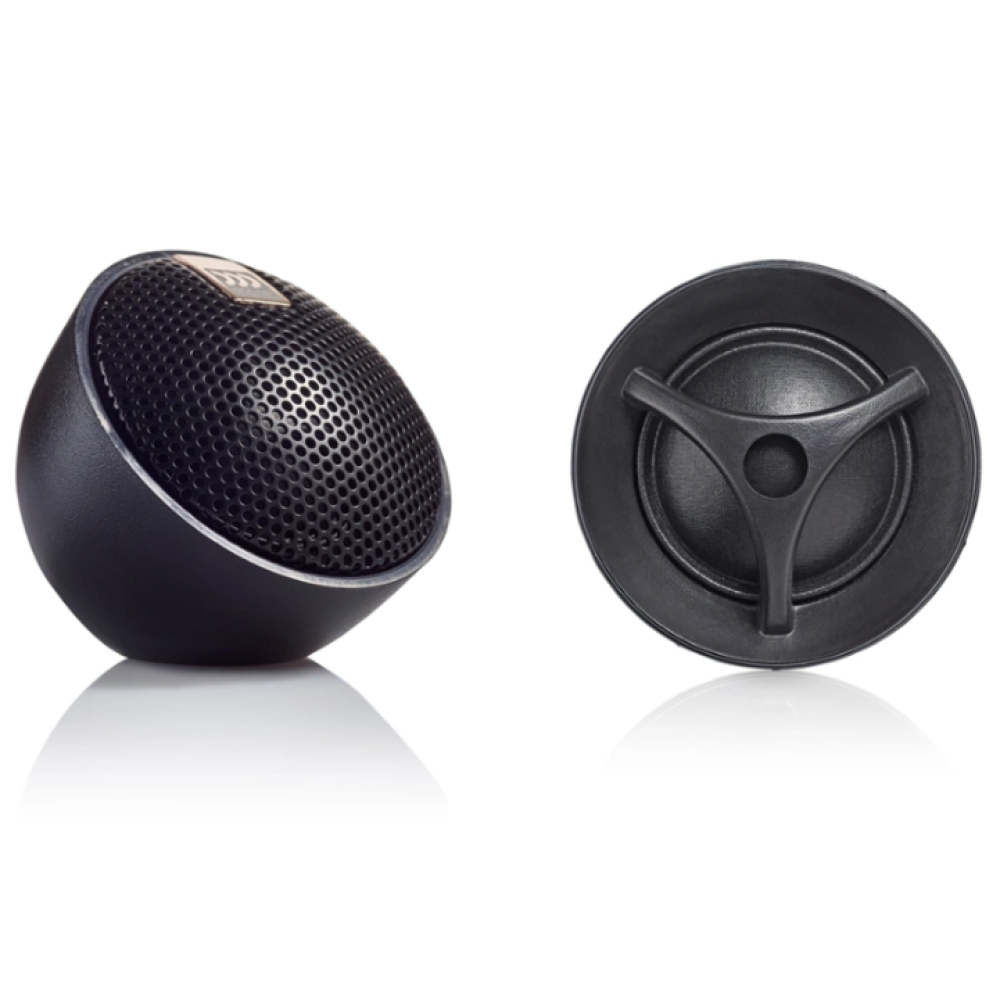

The superb 1-inch (25mm) compact soft dome tweeters are easy to fit in most factory locations. Protected by an easy-to-install in-line crossover, they deliver incredible clarity and detail in the high-frequency range and integrate smoothly with a dynamic, bass-rich 8” (200mm) woofer to form an accurate soundstage and image.

• Shallow profile for easy fitment 2-Way
• Excellent Bass response
• In-line crossover for easy installation 1" (25mm) soft dome tweeter with excellent off axis response
• Inverted powerful Neo magnet design
• High Efficiency for optimal OE installation (92dB)
• High power handling over 100Wrms
• Aluminum die-cast basket for better bass performance and less vibration

Specifications:

WOOFER:

• Impedance: 4 Ohms
• Power Handling: 100W RMS
• Max Power: 200W
• Sensitivity: 92 dB
• Frequency Response: 40 Hz - 20,000 Hz
• Resonant Freq. Fs Hz: 56
• Voice Coil Diameter: 25mm
• DC Resistance: 3.1 Ohm
• HE-Magnetic Gap Height: 4mm
• Cone Material: Treated paper compositie cone
• Unit Diameter: 210mm
• Voice Coil Wire: Copper
• Mounting Depth: 48mm
• Weight: 0.5kg

TWEETERS:

• Impedance: 4 Ohms
• Power Handling: 90W RMS
• Max Power: 160W
• Sensitivity:91.5 dB
• Frequency Response: 1600 - 20,000 Hz
• Resonant Freq. Fs Hz: 1200
• Voice Coil Diameter: 25mm
• Voice Coil Wire: Copper
• Magnet System: Neodymium
• Mounting Depth: 20mm
