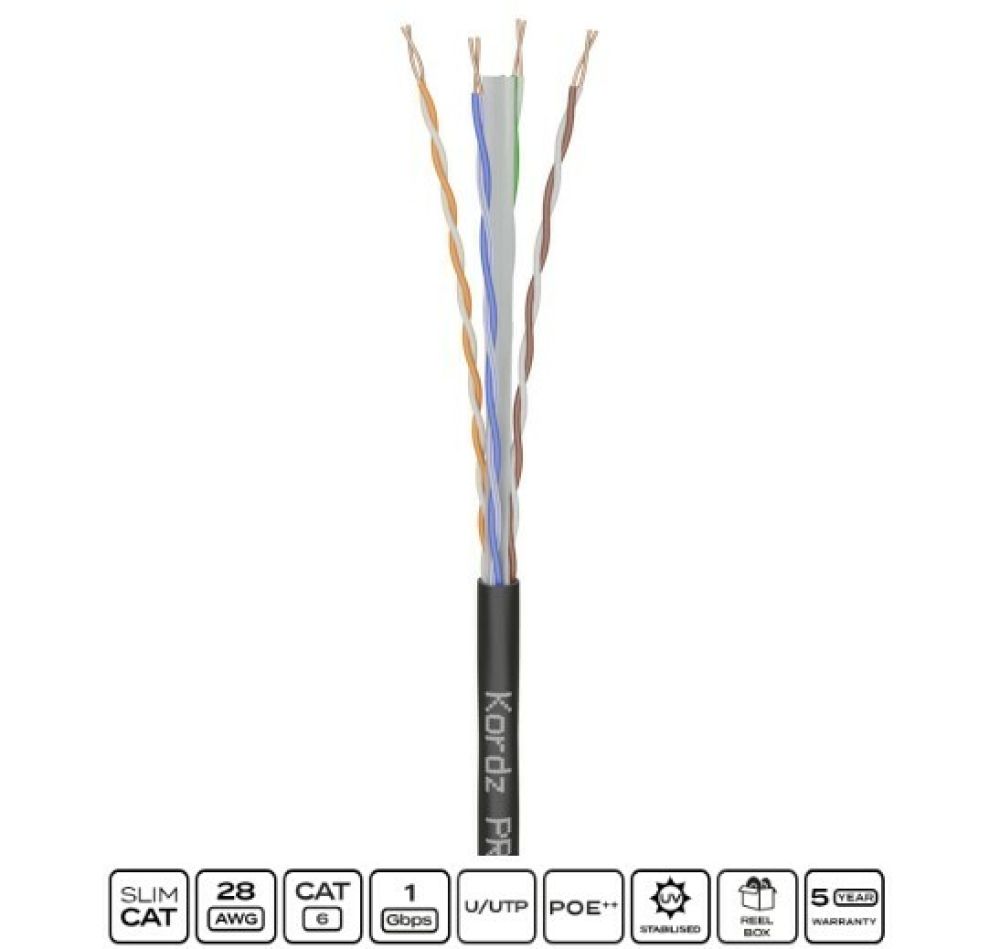

KORDZ SLIMCAT CAT6 UV STABILISED CABLE BLACK - 305M
| The Kordz PRO Series SlimCat Outdoor Cat6 Network Cable revolutionises outdoor connectivity. It's a slim and flexible 28AWG network cable, its diameter is 3.9mm and supports Cat6 and PoE++ for high performance power and data transmission up to 50m. | |
| Code: | PRO-SC6UV-BK |
| Brand: | KORDZ |
Features:
The Kordz PRO Series SlimCat Outdoor Ca6 Network Cable is designed for outdoor installations such as IP cameras, Wi-Fi access points and smart doorbells. Featuring a black PE UV stabilised jacket engineered to withstand harsh external conditions and complies with EU, UK, and Australian Standards. The slim and flexible cable is robust and designed to support existing PRO Series Slimcat system components. It's perfect for tight pathways and discreet installations with a diamter of 3.9mm and supports PoE++ high performance power and Cat6 data transmission up to 50m.
- UV-stabilised PE jacket that is compliant with EU, UK, and Australian standards for outdoor use
- Completely compatible with existing PRO SlimCat system components
- Reduced bundle sizes that are half the cross-sectional area of 23/24 AWG network cable bundles
- Performs to industry standards and is fully featured including PoE++ up to 50m
- Comes in 305 meter drums
- Slim, flexible design enabling discreet installations in narrow areas
- Crafted with the purpose of meeting the demands of modern outdoor PoE applications
Specifications:
Construction
Conductor: 28AWG solid OFC 0.338 +0/-0.02mm
Insulation: Polyethylene, 0.61±0.1 mm
Twisting: 4 twisted pairs of conductors
Twisted Pair Colour Code: 1: white-blue / blue 2: white-orange / orange 3: white-green / green 4: white-brown / brown
Shielding: Unshielded (U/UTP)
Cable lay up: Non-Metallic cross separator
Jacket Material: UV resistant Polyethylene-based composite
Outer Diameter: 3.9 ± 0.5 mm
Mechanical
Minimum Bend Radius: Without load ≥ 16.0 mm; with load ≥ 32.0 mm
Temperature Range: During operation -20 °C to 60°C; During installation 0°C to 50°C
Electrical
DC Resistance: Max. 23.6 Ω/100 m at 20°C
Resistance Unbalance: Max. 5% at 20°C
Insulation Resistance (500V): Min. 5000 MΩ/km at 20°C
Mutual Capacitance: Max. 5.6 nf/100 m at 1 kHz
Capacitance Unbalance (Pair to ground): Max. 330 pf/100 m at 1 kHz
Nominal Velocity of Propagation: Nom. 67%
Test Voltage (DC, 1min): 1 kV / 1 min
Kordz Part Number: K23403-305M-BK
