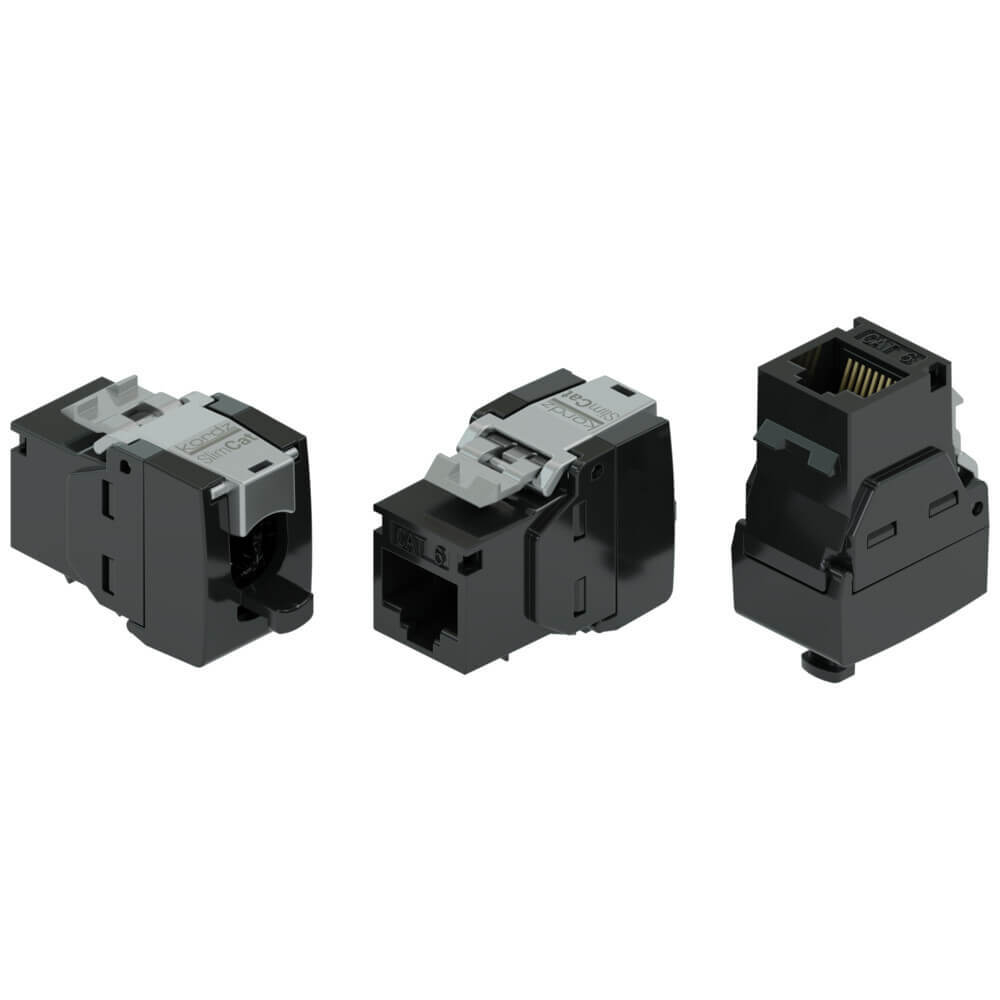

KORDZ SLIMCAT CAT6 RJ45 TOOLLESS KEYSTONE SOCKET BLACK - 12PK
The Kordz PRO Series SlimCat™ CAT6 Toolless Keystone RJ45 Socket is designed specifically for use with the Kordz PRO Series SlimCat™ CAT6 Network Cable. BLACK - 12 PACK OF KEYSTONE CONNECTORS |
|
Code: | SLIM-KSCAT6-BK |
Brand: | KORDZ |
Featuring an ABS clamshell in either black or white and a toolless metal latching mechanism, the PRO Series SlimCat™ Keystones support PoE++ at 100W and fit standard keystone panel cut-outs. Match with the Kordz SlimCat™ CAT6 Crimp Connector & Strain Relief for a complete Kordz ecosystem that delivers ‘Connectivity Assured’.
- Enables delivery of ANSI/TIA-568.2-D Cat 6 permanent link performance up to 50m when paired with Kordz PRO Series SlimCat™ CAT6 Network Cables
- Contacts and wire manager customised for 28AWG conductors
- Easy to terminate with metal latching mechanism
- ABS clamshell design
- IEEE802.3bt 100W PoE++ capable
- UL94 V-0 fire-rated
- Eco-friendly packaging
- Available in black and white
- Lifetime warranty
GENERAL INFORMATION
Connector Part No.: T2R45S-C6XU-XX
Guaranteed Performance Category: Category 6
Applicable Standards: ANSI/TIA-568-C.2
Housing Material: Polycarbonate
Flammability Rating: UL 94 V-0
Contact Material: Copper
Contact Plating IDC: Phospher bronze, Tin Plated
Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
Housing Colour: White / Black
Shielding Type: Unshielded
Operating Temperature: -40° to 66°C
MECHANICAL
Keystone Body Length: 37.33mm | 14.7in
Keystone Body Width: 17.10mm | 6.7in
Keystone Body Height: 23.68mm | 9.3in
Panel Mating Height: 16.10mm | 6.3in
Panel Mating Width: 14.50mm | 5.7in
ELECTRONIC
Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
Contact Resistance: ≤ 20m?
Insulation Resistance: ≥ 500M?
RJ45 Cycle: 750 times
Insertion IDC: 20 times
Wire Gauge Min/Max: Min: 26AWG / max: 23AWG
Conductor Diameter: Max:8.5mm Ø
Cable Jacket Diameter Max: 6.5mm Ø
KORDZ PART NUMBER - T2R45S-C6XU-BK
