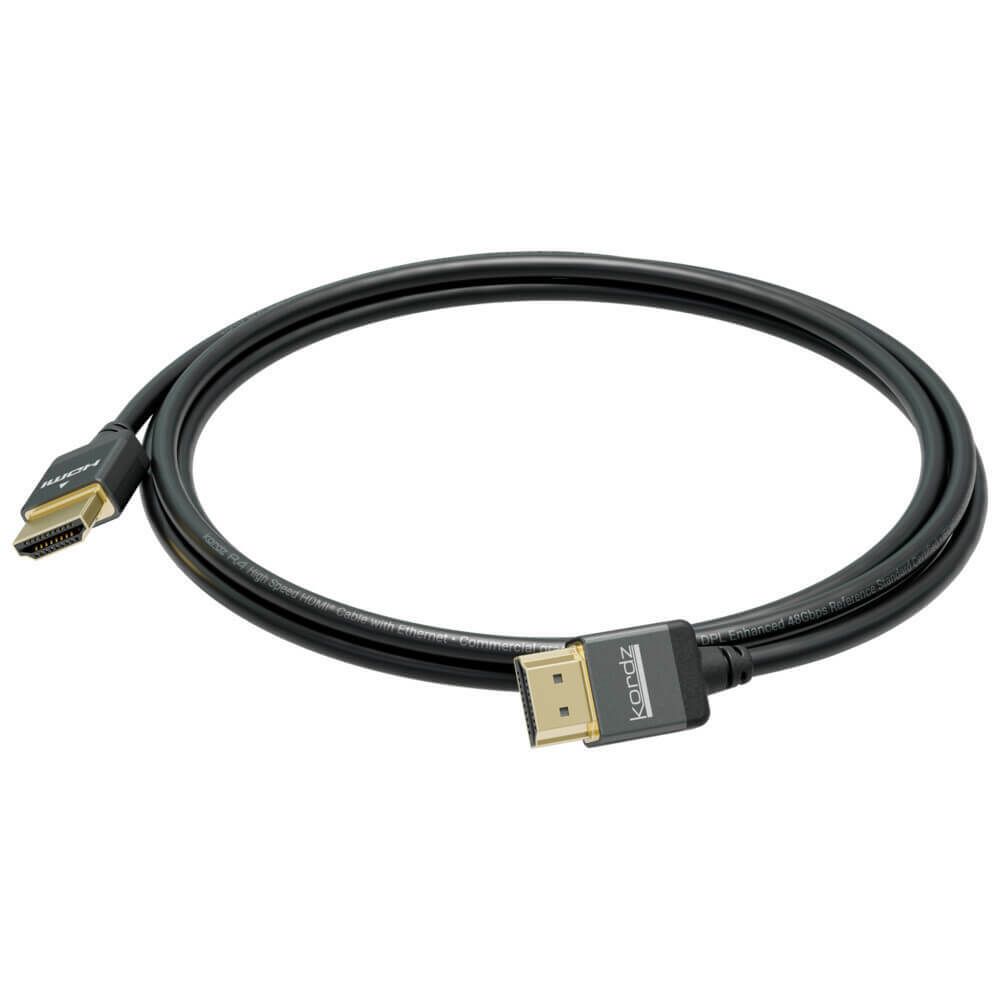

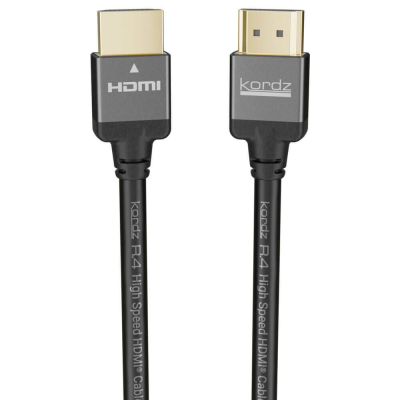

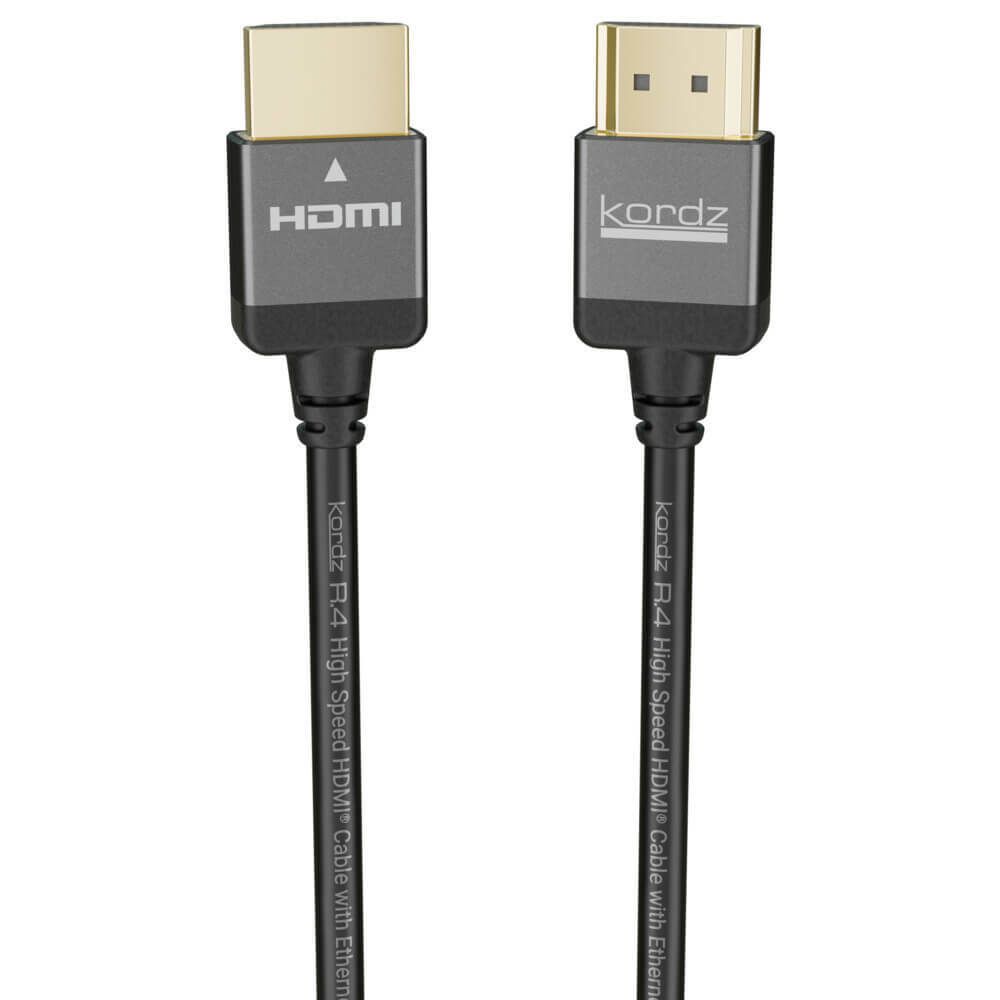

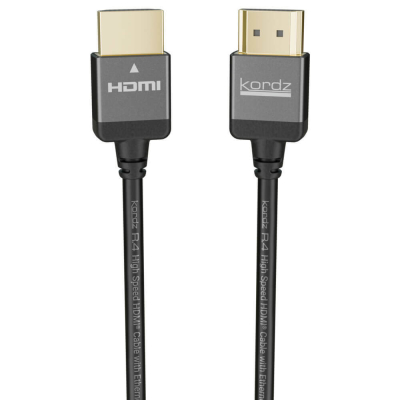

KORDZ R.4 48GBPS 8K RACK-SLIM HDMI LEAD - 1.5M
| The R.4 48Gbps Rack and Marine Passive HDMI Cable delivers certified, uncompressed 8K video in a slim, highly durable design. It is optimized for tight rack spaces, featuring secure 2kg retention connectors, EMI shielding & a safety-rated LSZH jacket. | |
| Code: | R.4-HD0150 |
| Brand: | KORDZ |
Features:
Performance & Video Capabilities
-
8K & 48Gbps Bandwidth: Supports full 48Gbps bandwidth for uncompressed 8K video transmission.
-
Certified Performance: Tested to the DPL Labs Enhanced 48Gbps Reference Standard.
-
Backward Compatibility: Works seamlessly with all previous HDMI versions for legacy equipment.
Rack & Space Optimization
-
Slim Profile: Flexible, slim construction improves cable routing and airflow in high-density racks.
-
Precise Length Increments: Available in 0.3m length steps for clean, exact rack dressing.
-
Compact Connector: Low-profile assembly allows easier access in tight rack spaces.
Construction & Durability
-
Secure Retention: Die-cast HDMI connector features 2kg of retention force to resist vibration and movement.
-
Advanced Shielding: Full metal internal casing with a 95% copper braid shield provides high EMI (electromagnetic interference) rejection.
Marine Safety & Warranty
-
Marine-Grade LSZH Jacket: Low Smoke Zero Halogen cable complies with IEC60332, IEC60754, and IEC61034 standards for marine safety.
-
Quality & Warranty: Individually performance-tested and backed by a lifetime warranty.
Specifications:
Performance 0.5m – 3.0m PASSIVE
- HDMI Certification: Ultra High Speed with Ethernet
- Supported Data Rate: 48Gbps (12Gbps per lane)
- Other HDMI Features: Supports HDMI2.1 features
Mechanical
- Cable Diameter: 0.3m – 2.1m: 34 AWG, 4.5mm/0.18”ø | 2.4m – 3.0m: 30 AWG, 6.0mm/0.24” ø
- Mounting Length: 0.3m – 2.1m: 34 AWG, 49.9mm/1.96in | 2.4m – 3.0m: 30 AWG, 57.4mm/2.26in
- Cable Bend Radius: 0.3m – 2.1m: 34 AWG, 36mm/1.42in | 2.4m – 3.0m: 30 AWG, 48mm/1.89in
Construction
- Primary Conductors: 0.3m-2.1m: Solid 34AWG OFC | 2.4m-3.0m: Solid 30AWG OFC
- Insulation on TMDS: Polyethylene
- Insulation on 4C + HEAC Pairs: Polyethylene
- Shielding on TMDS Pairs: AL/Mylar, 125% Coverage
- Shielding Overall: AL/Mylar, 125% Coverage + Bare copper braid 16/12/0.08 ± 0.008mm, 95% coverage
- Cable Jacket: IEC60332-1 LSZH Composite
- HDMI Connector Shell: Anti-fatigue die-cast Zn Alloy, 1μ” 24K Gold plated
- HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
- Termination: High Frequency Soldering
- HDMI Backshell: Aluminium outer shell, TPE boot & strain relief
- Connector Retention Force: 20N (approx 2kg / 4.4lbs) +10/-5%
Kordz Part Number: K46422-0150-CH
