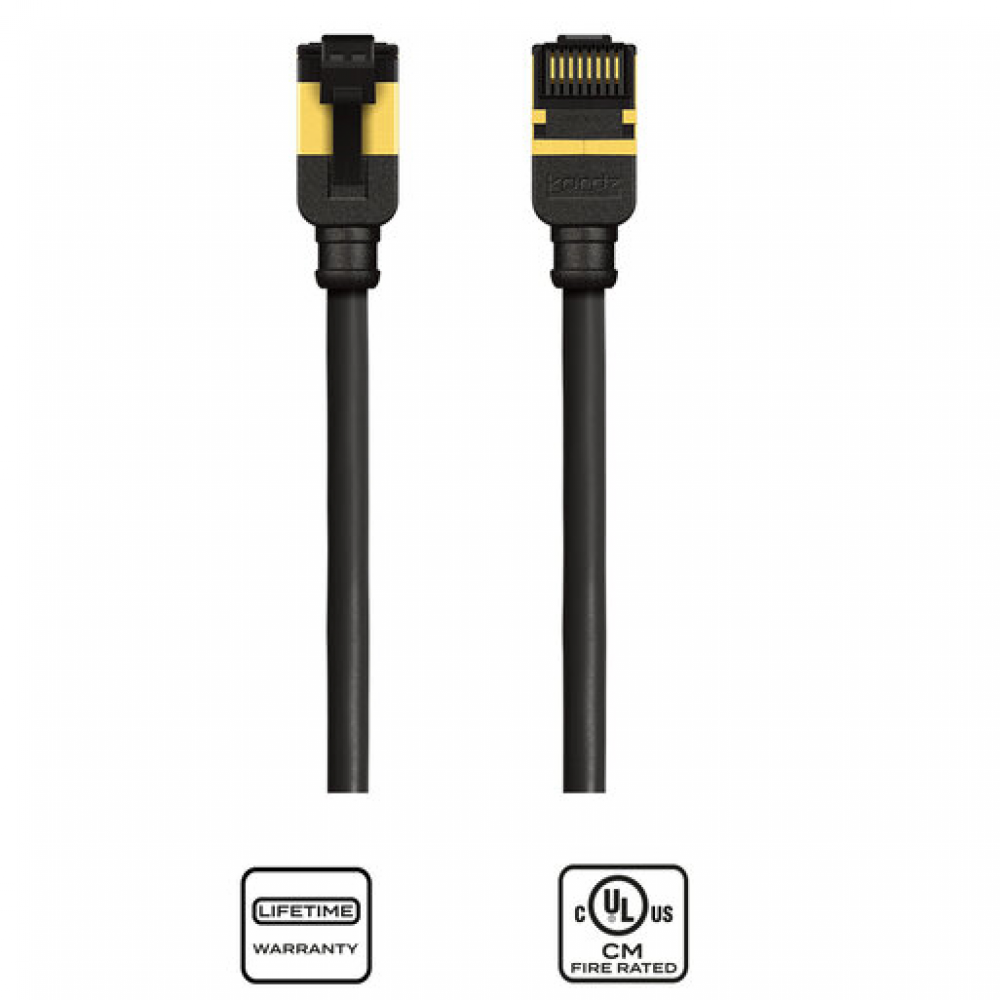

KORDZ PRS SLIM PROFILE CAT6A PATCH LEAD BLACK - 7.5M
World's smallest minimal operational depth & most flexible CAT6A U/FTP patch lead. 10Gbps, slim-profile, 28AWG copper designed for high-bandwidth AV installations. Exceeds ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 50. | |
Code: | PRS-CAT6A0750BK |
Brand: | KORDZ |
FEATURES:
This PRS series CAT6A Network Patch Cord is a 10Gbps, slim-profile, 28AWG copper patch cord designed for high-bandwidth AV installations. Available in lengths from 0.15m to 30m the PRS patch cord features our custom designed compact RJ45 connector providing an almost unbreakable latching tab.
-
Exceeds ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500Mhz
-
28AWG stranded U/FTP Category 6A shielded slim-profile network patch cord
-
Each cable is individually performance tested with its own unique downloadable test report
-
Anti-corrosion gold-plated shielded connector
-
Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBASE-T, PoE, PoE+ & PoE++
-
UL 444 (CMG) fire-rating
-
568B wire connection configuration
-
Overall diameter of 4.8mmØ
-
World's smallest minimal operational depth and most flexible CAT6A U/FTP patch cord
-
Available in 7 Colours – Black, Blue, Grey, Green, Yellow, Red & White
-
Patent pending design
TECHNICAL SPECIFICATIONS
CONSTRUCTION:
Conductors: Solid 28 AWG Oxygen-Free Stranded Copper
Conductor Insulation: Skinned Foam PE
Shielding: Individual pairs AL-Mylar shielded 100% Coverage
Cable Jacket Material: UL CMG-rated PVC Composite
Connector Material: Nylon Composite
Contact Material: Solid Oxygen-free Copper, 50μ” Gold-plated
Contact Type: 3-prong for solid/stranded conductors
Strain Relief: Injection-moulded PVC
Conductor Resistance: 223Ω/km
Insulation Resistance: 10MΩ min @100V DC
Category 6A U/FTP Shielded Network Patch Cord Specification Standard
Application Standards:
ANSI/TIA-568.2-D
IEC11801
EN50173
Performance Standard:
≤ 10.0m - Category 6A Component Tested
≥ 15.0m - Category 6A Channel Tested
Wiring method: T568-B
Certified Data Rate: 10 Gbps (Gigabit ethernet)
Supported Data Rate: ≥ 10 Gbps (Gigabit ethernet)
Certified Bandwidth: 1 to 500 MHz
Supported Bandwidth: ≥ 500 MHz
MECHANICAL:
Cable Diameter: 28 AWG, 4.8mm/0.19ӯ
Maximum Cable Pulling Tension: 80 kgf/cm²
Cable to Plug Tensile Strength: TBC
Cable Bend Radius: 20.0mm | 0.79in
Recommended Total Mounting Depth: 40.0mm | 1.57in
Mating Cycles (max.): 1000 cycles
Temperature range: UL Temp rating - 75ºC
