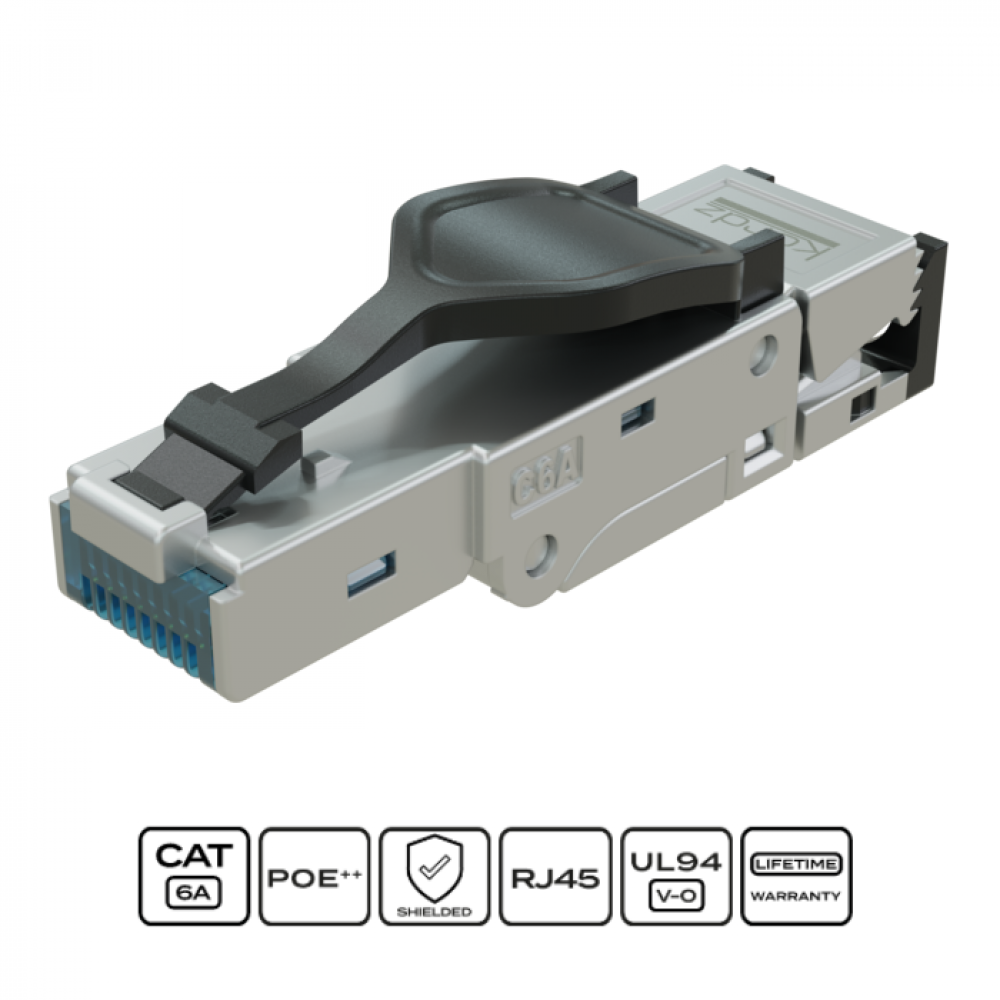

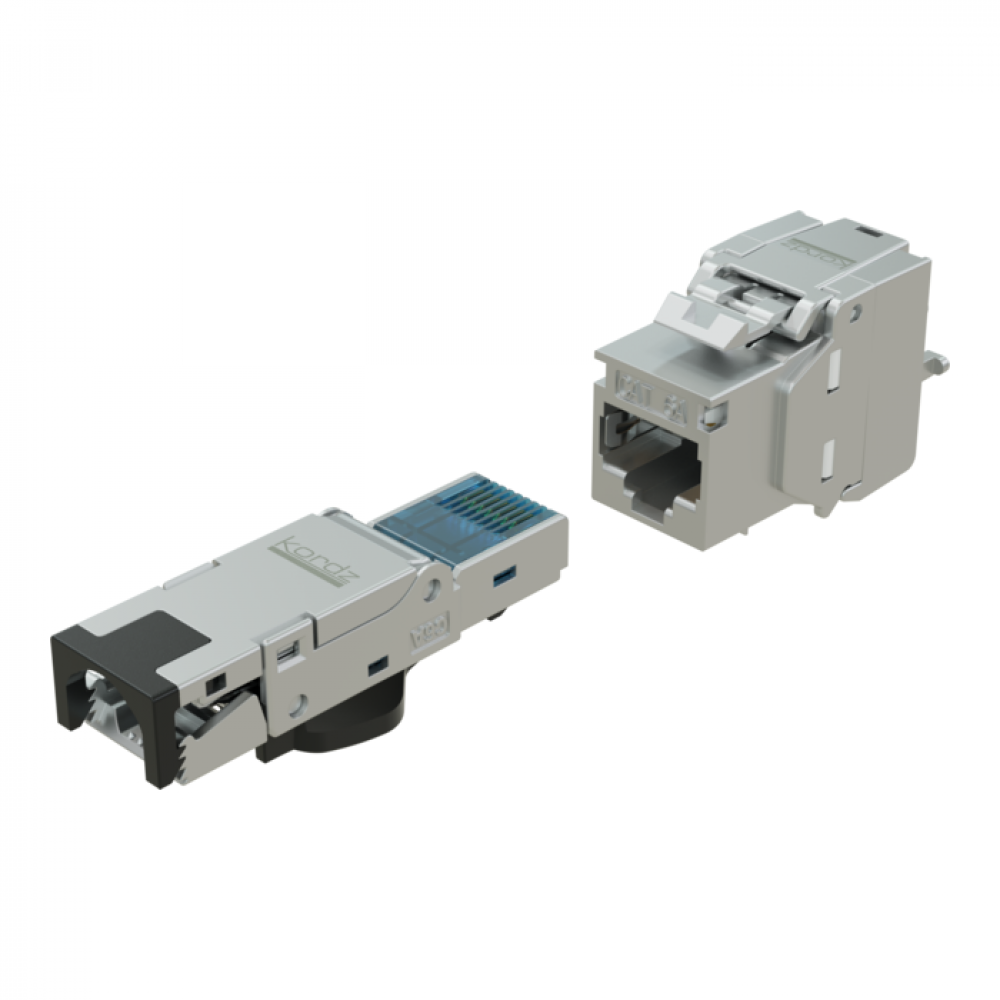

KORDZ PRS SERIES RJ45 CAT6A MALE PLUG - 6 PACK

Kordz PRS Field Termination RJ45 Plugs feature a die-cast alligator style design and perfectly complement the ONE Series Bulk Cabling. They give professional integrators total confidence to deliver an end-to-end cabling solution.
Code: PRS-CONCAT6A
Brand: KORDZ

FEATURES:

  • Die-cast alligator style design
  • Easy to terminate
  • 6 pieces per pack
  • Sturdy and robust shielded construction
  • Manufactured with quality materials using advanced manufacturing methods
  • Backed by the Kordz Lifetime Guarantee

SPECIFICATIONS:

TECHNICAL

  • Connector Part No.: T3R45M-C6AS-ME
  • Performance Standard: ANSI/TIA 568.2-D Category 6A
  • Build Comforms to: IEC60603-7-4
  • Keystone Body Material: Zinc-alloy Die-cast
  • Flammability Rating: UL 94 V-0
  • Contact Type: IDC (insulation-displacement contact)
  • Contact Material: Phosphorus Bronze with 50µ” gold-plating
  • Recommended Panel Cutout Dimensions: 14.8mm x 19.3mm ± 0.1mm
  • Recommended Cable: Kordz ONE-CAT6A (Shielded Category 6A)
  • Conductor diameter min: 26AWG | Ø5.5mm
  • Conductor diameter max: 23AWG | Ø8.0mm
  • Maximum Cable Diameter: 8.5mm

MECHANICAL

  • Keystone Body Length: 37.70mm | 14.8in
  • Keystone Body Width: 17.10mm | 6.7in
  • Keystone Body Height: 23.64mm | 9.3in
  • Panel Mating Height: 16.10mm | 6.3in
  • Panel Mating Width: 14.50mm | 5.7in

Kordz Part Number: T3R45M-C6AS-ME
