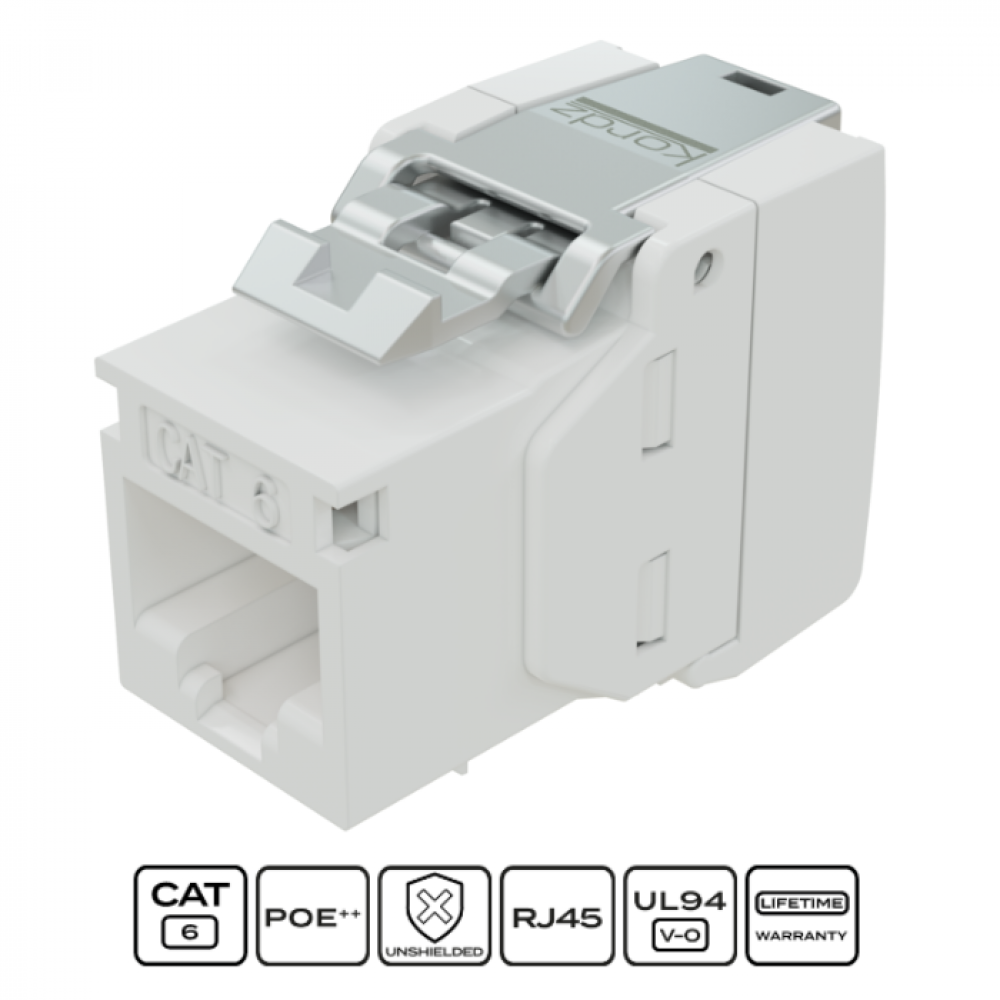

KORDZ PRO SERIES RJ45 CAT6 KEYSTONE SOCKET 6PK - WHITE

Keystone RJ45 Sockets perfectly complement the ONE Series Bulk Cabling and give the professional integrator total confidence to deliver an end-to-end cabling solution. Featuring an ABS clamshell with a metal latching mechanism, they are easy to fit.
Code: PRO-KSCAT6-WH
Brand: KORDZ

FEATURES:

  • ABS clamshell design
  • Available in black or white
  • Easy to terminate with latching mechanism
  • 6 pieces per pack
  • Sturdy and robust construction
  • Manufactured with quality materials and using advanced manufacturing methods
  • Backed by the Kordz Lifetime Guarantee

SPECIFICATIONS:

TECHNICAL

  • Connector Part No.: T2R45S-C6XU-XX
  • Guaranteed Performance Category: Category 6
  • Applicable Standards: ANSI/TIA-568-C.2
  • Housing material: Polycarbonate
  • Flammability Rating: UL 94 V-0
  • Contact Material: Copper
  • Contact Plating IDC: Phospher bronze, Tin Plated
  • Contact Plating RJ45: Gold Plating 50µ” [1.27µm]
  • Housing Colour: White / Black
  • Shield Type: Capitalised
  • Operating Temperature: -40° to 66°C

MECHANICAL

  • Keystone Body Length: 37.33mm | 14.7in
  • Keystone Body Width: 17.10mm | 6.7in
  • Keystone Body Height: 23.68mm | 9.3in
  • Panel Mating Height: 16.10mm | 6.3in
  • Panel Mating Width: 14.50mm | 5.7in

ELECTRONIC

  • Voltage/Current rating UL Applications: 125 Volts AC / 1.5 Amps
  • Dielectric Withstanding Voltage: 1500 Volts DC / AC Peak
  • Contact Resistance: ≤ 20mΩ
  • Insulation Resistance: ≥ 500MΩ
  • RJ45 Cycle: 750 times
  • Insertion IDC: 20 times
  • Wire Gauge min/max: min: 26AWG / max: 23AWG
  • Conductor Diameter: max:8.5mm Ø
  • Cable Jacket Diameter max: 6.5mm Ø

Kordz Part Number: T2R45J-C6XU-WH
