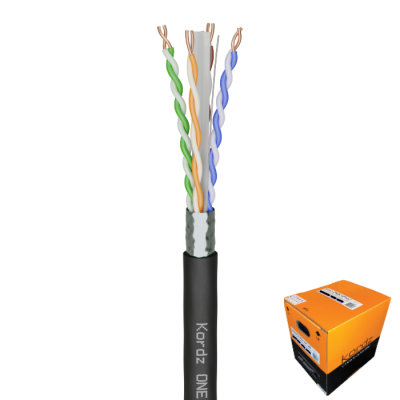

KORDZ CAT6A SOLID OFC UHD/4K VIDEO/DATA NETWORK SHIELDED CABLE 152.5M PULL BOX - BLACK

Engineered to exceed 4K video installation bandwidth requirements and minimise alien crosstalk or electromagnetic interference in complex systems. The Rapid-EZ reel is meter marked and flows from the professional pull box without twisting or curling.
Code: ONE-CAT6A-UBK
Brand: KORDZ

Features:

The Kordz ONE Series CAT6a cable has been designed and engineered to provide a cable system infrastructure with assurance for advanced applications that demand more bandwidth and greater performance. This makes for a more robust and complex system at Gigabit speed and full duplex transmissions. This premium shielded twisted pair (F/UTP) cable with grounding, provides industry-leading protection inherent in complex systems from external cable noise sources, also known as alien crosstalk or EMI (electromagnetic interference).

The new smaller and more compact Rapid-EZ-Reel packaging allows the easy flow of cable from the box, whilst keeping the cable from twisting and curling, greatly minimising snags during installation therefore saving precious time.

  • Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX(Gigabit) & 10GBaseT, PoE & PoE+
  • F/UTP Ethernet CAT6a
  • Four twisted Pairs 23 AWG Solid Copper Conductors
  • PVC Separator Reduces Crosstalk Between Pairs
  • Mylar laminated aluminium tape shielding with a 26AWG drain wire
  • Suitable for IDC Terminations
  • Supplied in the durable Rapid-EZ-Reel packaging – 152.5m(500ft)
  • Meter Marked
  • 5 colours available: Blue, Green, White, Yellow & Purple
  • Exceeds ANSI/TIA 568-C.2 and ISO/IEC 61156-5 standards
  • Available in LSZH- IEC60332-3-25 and UL 444 CM versions
  • CPR Declared Performance: ONE-CAT6: Dca-s1, d2, a1 (EN 50575:2014+A1:2016)

Specifications:

CONSTRUCTION

  • Conductor: Solid OFC annealed bare copper wire 0.561 +0/-0.015mm [23AWG]
  • Insulation: Orange & Brown Pairs – Polyethylene (PE), 1.12+/-0.05 mm Blue & Green Pairs – Foam PE, 0.97 +/-0.05 mm
  • Twisting: 4 twisted pairs, 2 cores to each pair
  • Twisted Pair Colour Code: 1 – white-blue/blue, 2 – white-orange/orange, 3 – white-green/green, 4 – white-brown/brown
  • Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
  • Shielding: Drain wire [26AWG], Mylar tape laminated with aluminium foil as a shield
  • Outer Diameter: 7.4 +/-0.3 mm

MECHANICAL

  • Bend Radius: without load ≥ 29.6mm /1.16”, with load ≥ 59.2mm /2.33”
  • Temperature Range: During Operation: -20°C to 60ºC During Installation: 0°C to 50ºC

ELECTRICAL

  • DC Resistance: ≤ 9.38Ω / 100m at 20ºC
  • Resistance Unbalance: ≤ 2% at 20ºC
  • Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
  • Mutual Capacitance: ≤ 5.1 nf / 100m at 1khz
  • Capacitance Unbalance (pair to ground): ≤ 160 pf / 100m at 1khz
  • Nominal Velocity of Propagation: nom. 67% c
  • Test Voltage: 1kV DC / 1 min

Packaging

  • Roll Size: 152.5m / 500ft – metre marked
  • Carton Dimensions: 330mm (W) x 265mm (D) x 340mm (H) / 13.0in (W) x 10.4in (D) x 13.4in (H)
  • Volume: 0.03m2 / 1.05 cu. ft.
  • Gross Weight: 9.8kg / 21.6lbs

Kordz Part Number: K13602-152M-BK
