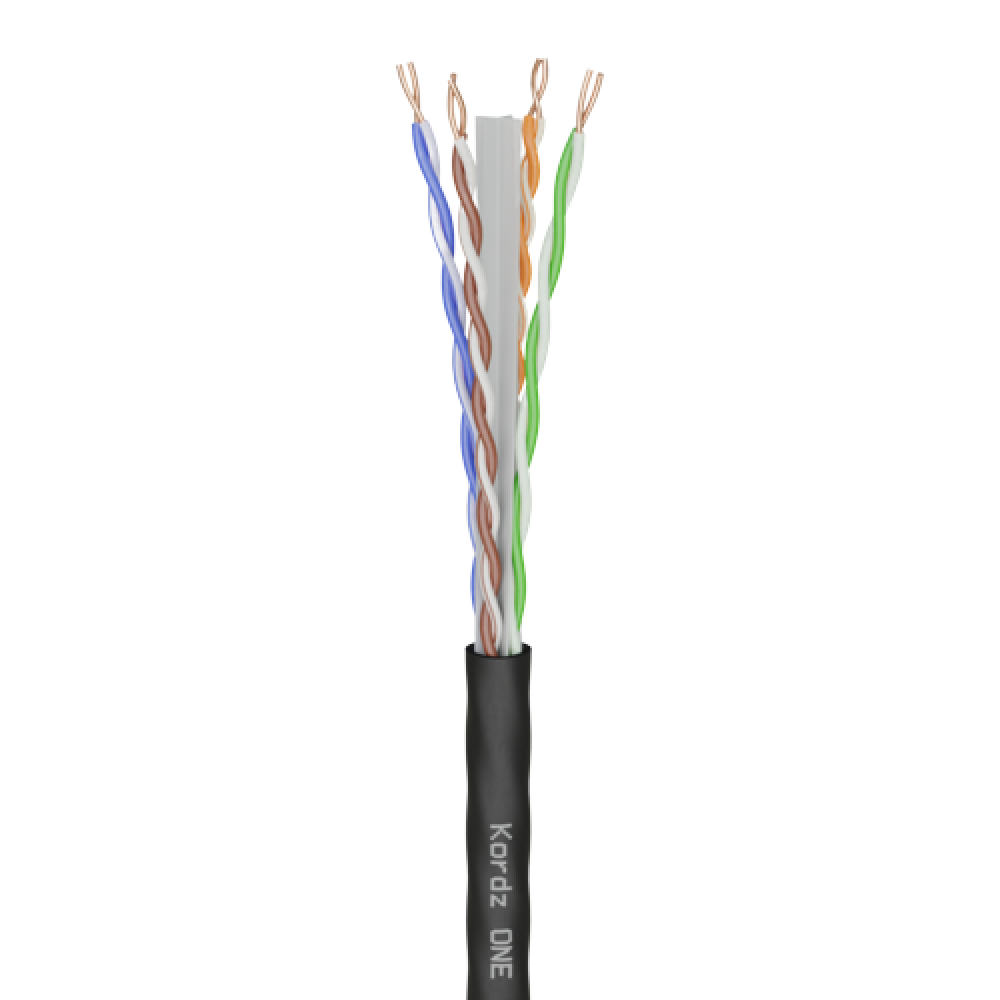

KORDZ CAT6 SOLID OFC UHD/4K VIDEO/DATA NETWORK CABLE 305M PULL BOX - BLACK

Features:

• ONE series CAT6 cable is tested and approved to exceed 550Mhz, is HDBaseT™ recommended and exceeds ANSI/TIA 568C-2.1 Standard.
• Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 5GBaseT, PoE & PoE+
• U/UTP Ethernet CAT6
• Four Twisted Pairs 24 AWG Oxygen Free Solid Copper Conductors
• Cross Separator Reduces Crosstalk Between Pairs
• Suitable for IDC Terminations
• Supplied in the Durable Rapid-EZ-Reel Packaging – 305m (1,000ft)
• Metre Marked for installation accuracy
• 5 Colours Available: Blue, Green, White, Yellow & Purple
• Exceeds ANSI/TIA 568C-2.1 Standard
• Available In LSZH – IEC60332-1 And UL 444 CM fire rated versions
• CPR Declared Performance: ONE-CAT6: Dca-s2, d2, a1 (EN 50575:2014+A1:2016)

Specifications:

Construction:

• Conductor: Solid OFC annealed bare copper wire 0.537 +0/-0.015mm [24AWG]
• Insulation: Polyethylene, 0.97 +/-0.05 mm
• Twisting: 4 twisted pairs, 2 cores to each pair
• Twisted Pair Colour Code: 1 – white-blue/blue, 2 – white-orange/orange, 3 – white-green/green, 4 – white-brown/brown
• Cable Lay-Up: 4 pairs with different pitches, non-metallic cross separator (spine)
• Outer Diameter: 5.7 +/-0.3 mm

Mechanical:

• Bend Radius: without load ≥ 22.8mm /0.89”, with load ≥ 45.6mm /1.79”
• Temperature Range: During Operation: -20°C to 60ºC During Installation:  0°C to 50ºC

Electrical:

• DC Resistance: ≤ 9.38Ω / 100m at 20ºC
• Resistance Unbalance: ≤ 5% at 20ºC
• Insulation Resistance (500V): ≥ 5000MΩ / km at 20ºC
• Mutual Capacitance: ≤ 5.6 nF / 100m at 1kHz
• Capacitance Unbalance (Pair to Ground): ≤ 330 pF / 100m at 1kHz
• Nominal Velocity of Propagation: nom. 67% c
• Test Voltage: 1kV DC / 1 min

Packaging:

• Roll Size: 305m / 1000ft – metre marked
• Carton Dimensions: 330mm (W) x 265mm (D) x 340mm (H) / 13.0in (W) x 10.4in (D) x 13.4in (H)
• Volume: 0.03m2 / 1.05 cu. ft.
• Gross Weight: 13.8kg / 30.4lbs

Kordz Part Number: K13002-305M-BK
