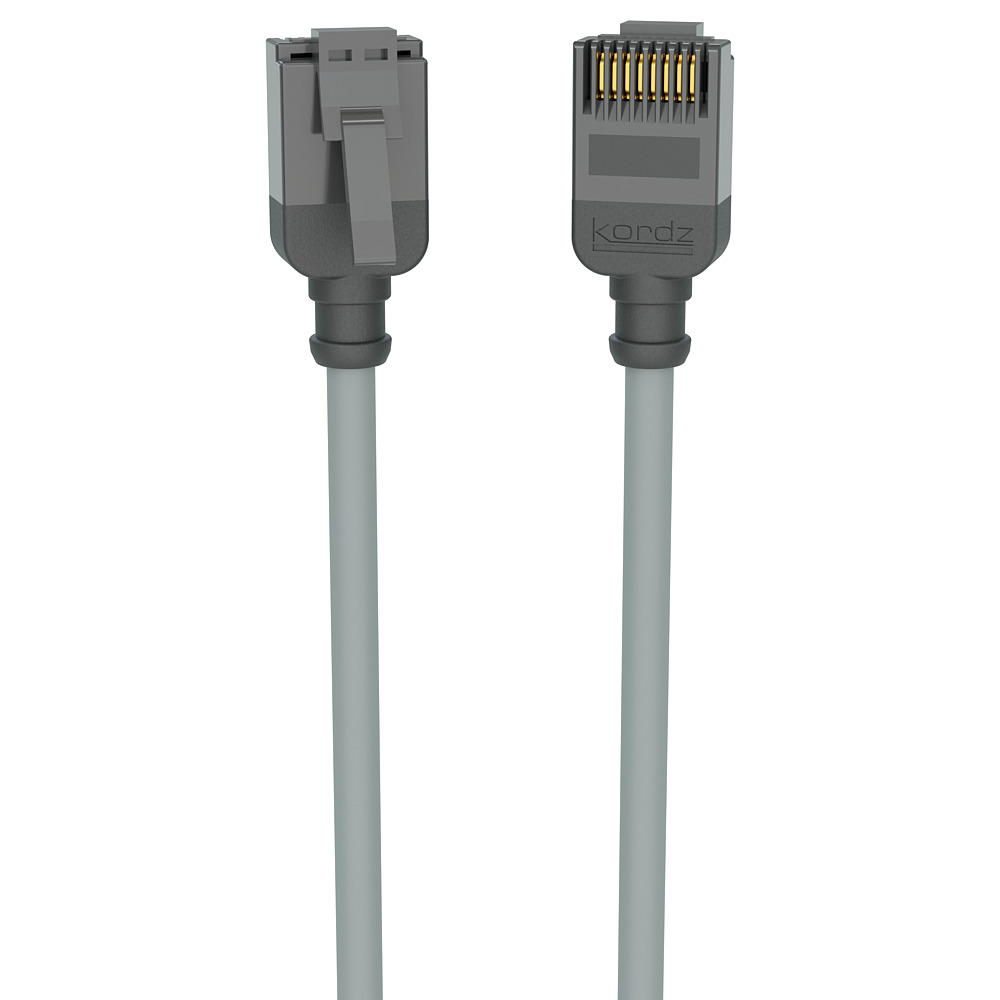

KORDZ CAT6 SLIMLINE RJ45 PATCH LEAD GREY - 3M

- UTP 28AWG CAT6 slim-profile network patch cord
- New compact design connector with 2000 bend cycle lock tab
- Exceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz

Code: PRO-CAT60300GY
Brand: KORDZ

CAT6 SLIM PROFILE NETWORK PATCH CORD

The Kordz PRO Series CAT6 Network Patch Cord is a highly flexible, slim-profile, stranded 28AWG copper patch cord ideal for the professional and custom installer/integrator. With a diameter of only 3.9mm, the PRO series network patch cord provides over 30% reduction in diameter when compared with conventional 24AWG patch cords. Combined with stranded 28AWG oxygen free copper conductors and solid extrusion for maximum twist protection, the cable is both highly flexible and ensures signal integrity in general applications. The Kordz PRO CAT6 Network Patch Cord also brings to the market a new compact, custom designed RJ45 connector featuring an almost unbreakable locking latch. Using better materials, the RJ45 locking latch is rated to 2,000+ 180ºdegree bends. This removes the need for cable replacements due to latch breakage, saving installers time and cable wastage, living up to the promise of Connectivity.Assured. Each unit up to and including 10m is tested to meet the ANSI/TIA-568.2-D component requirements, with 15m, 20m & 30m lengths meeting channel requirements.

  • Engineered and constructed to ensure installation success and longevity

  • Exceeds all Category 6 ANSI/TIA 568.2-D standards for all frequencies from 1 to 250 MHz

  • UTP 28AWG CAT6 slim-profile network patch cord

  • UL (CM) fire rating

  • 568B wire connection configuration

  • Overall diameter of 3.9mmØ

  • New compact design connector with 2000 bend cycle lock tab

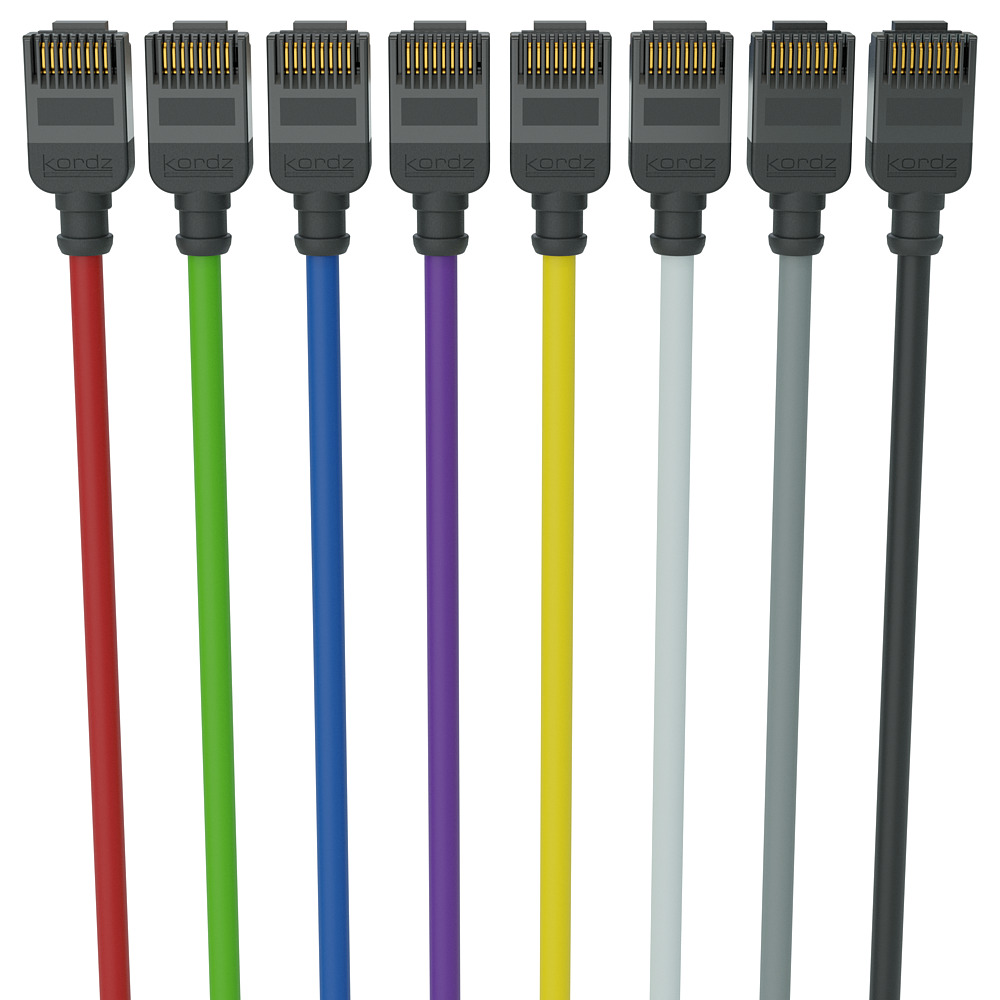

  • Available in 7 colours – Black, blue, grey, green, yellow, red & white

  • Available in lengths from 0.15m to 30.0m lengths

  • Lifetime Warranty





TECHNICAL SPECIFICATIONS

CONSTRUCTION

Conductors: Solid 28 AWG Oxygen Free Stranded Copper
Conductor Insulation: Polyolefin
Shielding: Not Applicable
Cable Jacket Material: UL CM-rated PVC
Connector Material: Nylon
Contact Type: 3-prong for solid/stranded conductors
Strain Relief: Injection-moulded PVC

ELECTRICAL CHARATERISTICS

Conductor Resistance: 223Ω/km
Insulation Resistance: 10MΩ min @100V DC



Category 6 Network Patch Cord Specification Standard

Application Standards:
ANSI/TIA-568.2-D
IEC11802
EN50173
Performance Standard:
≤ 10.0m - Category 6 Component Tested
> 10.0m - Category 6 Channel Tested
Wiring method: T568-B
Certified Data Rate: 1 Gbps (Gigabit ethernet)
Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)
Certified Bandwidth: 1 to 250 MHz
Supported Bandwidth: ≥ 250 MHz

MECHANICAL

Cable Diameter: 28 AWG, 3.9mm/0.15ӯ
Maximum Cable Pulling Tension: 80 kgf/cmÇ
Cable to Plug Tensile Strength: TBC
Cable Bend Radius: 11.7mm | 0.46in
Recommended Total Mounting Depth: 27.7mm | 1.09in
Mating Cycles (max.): 1000 cycles
Temperature range: UL Temp rating - 75ºC


PHYSICAL DIMENSIONS






KORDZ PART NUMBER - K23045-0300-GY
