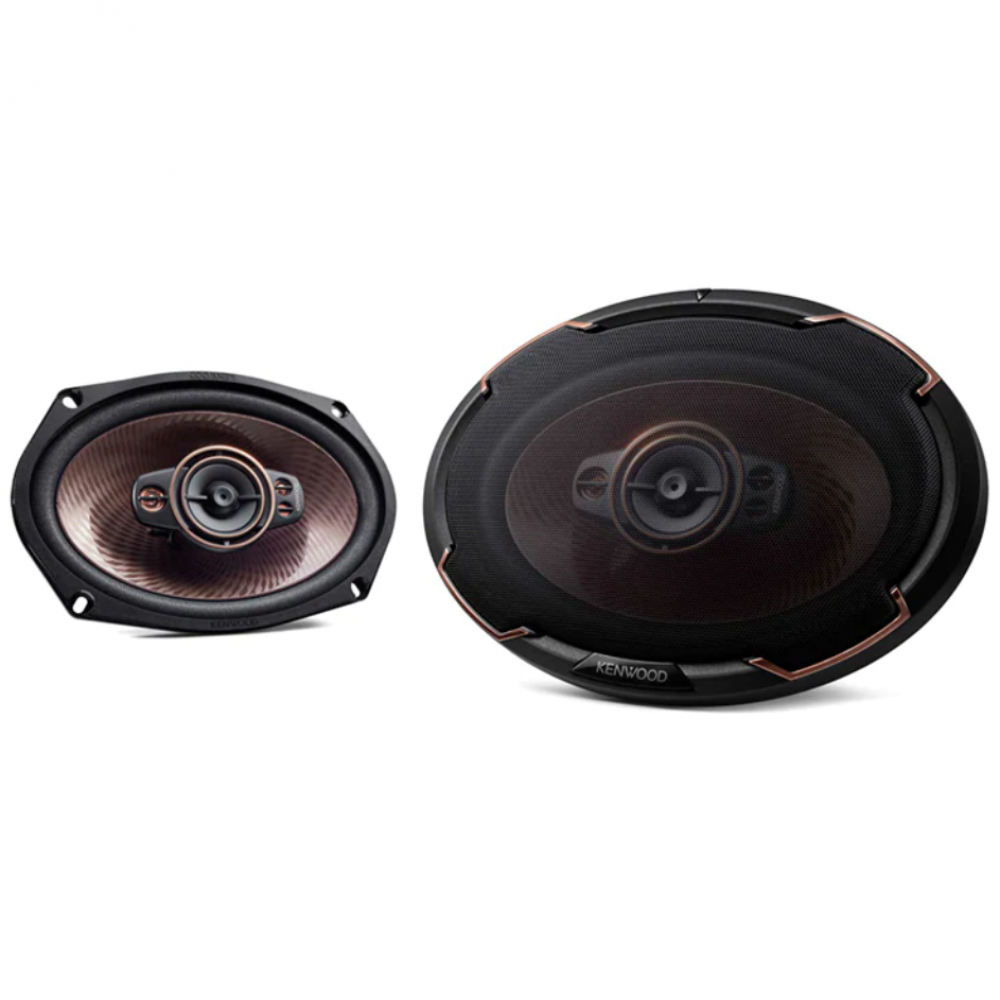

KENWOOD 6X9" PERFORMANCE SERIES 5-WAY COAXIAL SPEAKERS - 160W RMS
| Kenwood's KFC-PS6996EX 5-Way Speakers are made with 6x9" Diamond Array Pattern Woofer Cone with 700 watts peak power at 4 Ohm power Impedance, 44mm Balanced Dome Midrange, 20mm Ceramic Tweeter and two 12mm Ceramic Super Tweeters. | |
| Code: | KFC-PS6996EX |
| Brand: | KENWOOD |
RRP $189.00
Features:
-
Diamond Array Pattern Woofer Cone: enhances sound and reduces distortion.
-
Sound Field Enhancer: The unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and upper frequencies.
-
Acoustic Sound Harmonizer: harmonizes different sounds from the woofer and tweeter and reproduces a natural sound.
-
Factory Location Fit: The tweeter height is designed as low as possible, and the speaker units can fit within most of the spaces for factory speakers.
- Black-painted Woofer Yoke Plate: efficiently releases heat inside the magneticcircuit and prevents the temperature of the voice coil from rising, resulting in improved durability.
- New Shape of Woofer Damper: minimizes mechanical stress and makes the sound response smoother.
Specifications:
Speaker/ Woofer
| Woofer Cone material | Polypropylene (PP) Cone |
| Speaker Basket | Steel |
| Speaker Surround | Urethane |
| Sensitivity | 88dB/W/m |
| Frequency Response | 58Hz ~ 22000Hz |
| Speaker Impedance | 4 Ohm |
| Dimensions with Grill (WxHxD) | 266.1 x 197.3 x 108.6mm |
| Dimensions w/o Grill (WxHxD) | 218.5 x 164 x 92.5mm |
| Mounting Depth | 80.5mm |
| Mouting Hole Diameter | 218.5mm x 149.5mm |
| Tweeter Height | 12mm |
| Speaker Weight with Grille (pc.) | 1690gr |
| Speaker Weight w/o Grille (pc.) | 1550gr |
| Gross Weight | 3380gr |
| Weight of Magnet | 450gr |
Midrange Speaker
| Cone Size | 44mm |
| Cone Type | Balanced Dome |
| Magnet Type | Ferrite |
Tweeter
| Cone Size | 20mm |
| Cone Material | Ceramic |
Super-Tweeters
| Cone Size | 12mm |
| Cone Material | Ceramic |
