KENWOOD 6.8" 2-DIN MECHLESS AV RECEIVER WITH APPLE CARPLAY/ A-AUTO/ BLUETOOTH



Features:

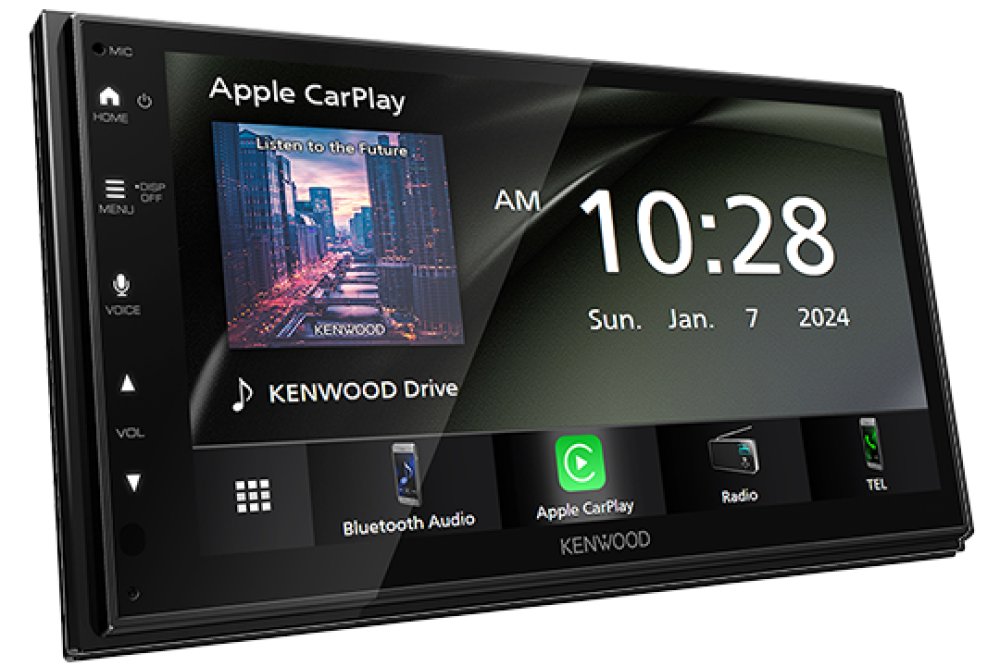

Apple Carplay & Android Auto™ - Connect via USB

• A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

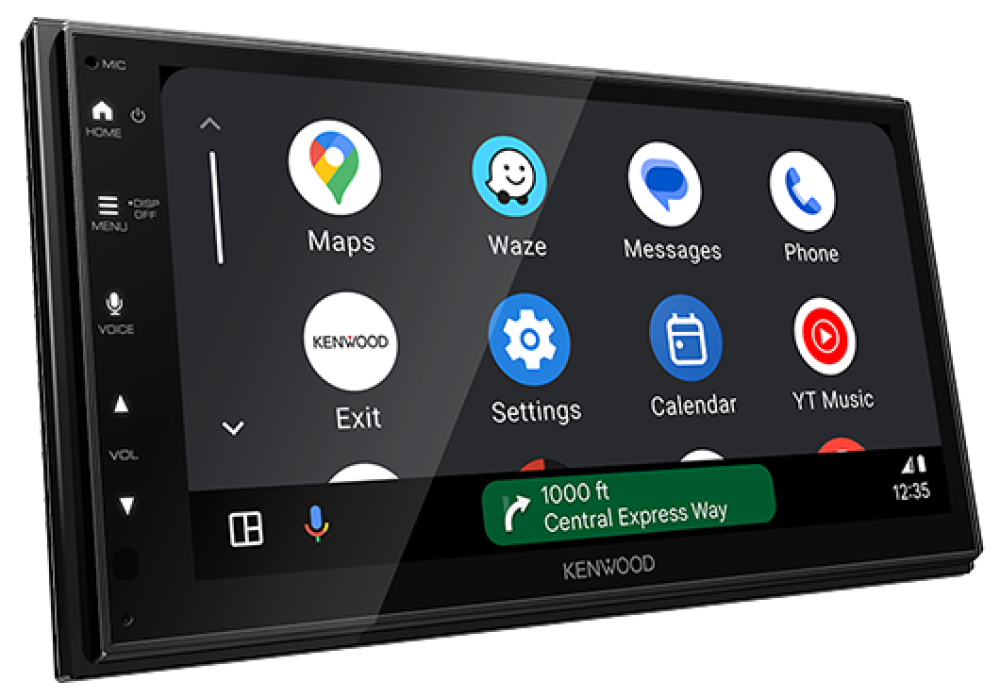

• Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it's designed to minimize distraction so you can stay focused on the road.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay



USB Mirroring for Smartphone & Bluetooth

• By installing the "MirrorAPP+", your mobile phone is seamlessly displayed on the receiver's screen via USB.
• You can enjoy a variety of apps such as Waze, YouTube, and Instagram.
• Touch control is possible from both screen and smartphone.
• Listen to popular music applications and music stored on your device with basic audio controls.



Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment

• Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.

Playable Video & Audio Files

• You can play back from USB devices audio and video files compressed in various formats.

Rear View Camera Input with Parking Guidelines

• An optional rear view camera enhances safety while backing up and monitoring behind your vehicle.
• Built-in, adjustable parking guidelines further add to its effectiveness.

WSVGA LCD Display

• The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display.
• You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.

Convenient and Easy-to-Use Capacitive Touch Panel

• Provides a high contrast ratio, crystal clear display and vivid text.
• Easy to use widgets provide access to information screens with a swipe.

Direct OEM Steering Remote Control

• The receivers can be installed in most Japanese and Korean vehicles easily.

Short Chassis Design

• The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

High Current 2.1A Charging

• Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.

*Compatibility depends on the smartphone.

Specifications:

Monitor Section	Picture size		6.8 inches (diagonal) wide
	Display system		TN LCD panel
	Drive system		TFT active matrix system
	Number of pixels		1,843,200
			1024H x 600V x RGB
	Effective pixels		99.99%
	Pixel arrangement		RGB striped arrangement
	Back lighting		LED
USB I/F Section	USB Standard		USB2.0 High Speed
	Connector		Type-A
	File System		FAT16, 32/ exFAT/ NTFS
	Maximum Power Supply Current		DC5V(DC logo) 2.1A
	D/A Converter		24 Bit
	Audio Decoder		MP3/ WMA/ WAV/ AAC/ FLAC
	Video Decoder		MPEG1/ MPEG2/ MPEG4/ H.264/ MKV/ WMV
	Frequency response	192k Sampling	20 - 20,000 Hz
		96k Sampling	20 - 20,000 Hz
		48k Sampling	20 - 20,000 Hz
		44.1k Sampling	20 - 20,000 Hz
	Total harmonic distortion 1kHz		0.20%
	Signal to Noise ratio		75dB
	Dynamic range		75dB
Bluetooth Section	Bluetooth Specification Version		Bluetooth V5.0
	Frequency		2.402 - 2.480 GHz
	RF Output Power (E.I.R.P.)		+1.6 dBm (AVE), Power class 2
	Maximum Communication range		Line of sight approx.10m
	Audio Codec		SBC / AAC
	Multi Profile Support		Multi Profile
	Profile		HFP(Hands Free Profile) 1.8
			SPP(Serial Port Profile) 1.2
			A2DP(Advanced Audio Distribution Profile) 1.3
			AVRCP(Audio/Video Remote Control Profile) 1.6
			PBAP(Phonebook Access Profile) 1.2
FM	Frequency range (Frequency step)		87.5 - 108 MHz (50kHz)
	Usable sensitivity		16.2dBf
	S/N:30dB		1.8μV/75Ω
	Frequency response(±3.0dB)		30Hz - 14kHz
	S/N Ratio(dB)		50dB (MONO)
	Stereo separation		35 dB (1 kHz)
AM	Frequency range (Frequency step)		531 - 1611 kHz (9kHz)
	Usable sensitivity		99μV (40 dBμ)
Video	Color system of external video input		NTSC/ PAL
	Rear view camera input level (RCA)		1 Vp-p / 75 Ω
	External video input level (RCA, AV-In)		-
	External audio max input level (RCA)		-
	External audio max input level (RCA, AV-In)		-
	Video Output level (RCA)		1 Vp-p / 75 Ω
	Audio Output level (mini jacks)		-
	Analog RGB input		-
Audio	Maximum Power (Front&Rear)		50Wx4
	Full Bandwidth Power (Front&Rear) (at less than 1%THD)		22Wx4
	Output frequency band		20 - 20,000 Hz
	Preout level (V)		2.5 V / 10 kΩ
	Preout impedance (Ω)		1.4 kΩ
	Speaker Impedance (Ω)		4 - 8 Ω
	Equalizer		13 Band
	Band	Frequency	62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz
		Level	-09 - +09 (-9dB - +9dB)
		Q	-
	HPF	Frequency	Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz
		Slope	-6/ -12/ -18/ -24 dB/Oct.
		Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
	LPF	Frequency	30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through
		Slope	-6/ -12/ -18/ -24 dB/Oct.
		Gain	-8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB
		Phase	Normal/ Reverse
General	Operating voltage		12V DC car battery
	Installation Dimensions W x H x D		182 x 112 x 86 mm
	Main Unit Installation size W x H x D(w/o sleeve)		178 x 100 x 86 mm
	Weight	Main unit (Including Trim plate)	1.07 kg
