KENWOOD 6.5" PEROFRMANCE SERIES 2-WAY COAXIAL SPEAKERS - 100W RMS
| The Kenwood KFC-PS1696 16cm 2-Way speakers feature 320 watts peak power and an impedance of 4 Ohms. The speaker system consists of a 160mm paper cone woofer and a 30mm balanced dome tweeter. | |
| Code: | KFC-PS1696 |
| Brand: | KENWOOD |
RRP $129.00
Features:
- Peak Power: 320W
- Diamond Array Pattern Woofer Cone
- Acoustic Sound Harmonizer
- Sound Field Enhancer
- Diamond Array Pattern Woofer Cone - This technology enhances sound and reduces distortion.
- Sound Field Enhancer - This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.
- Acoustic Sound Harmonizer - Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

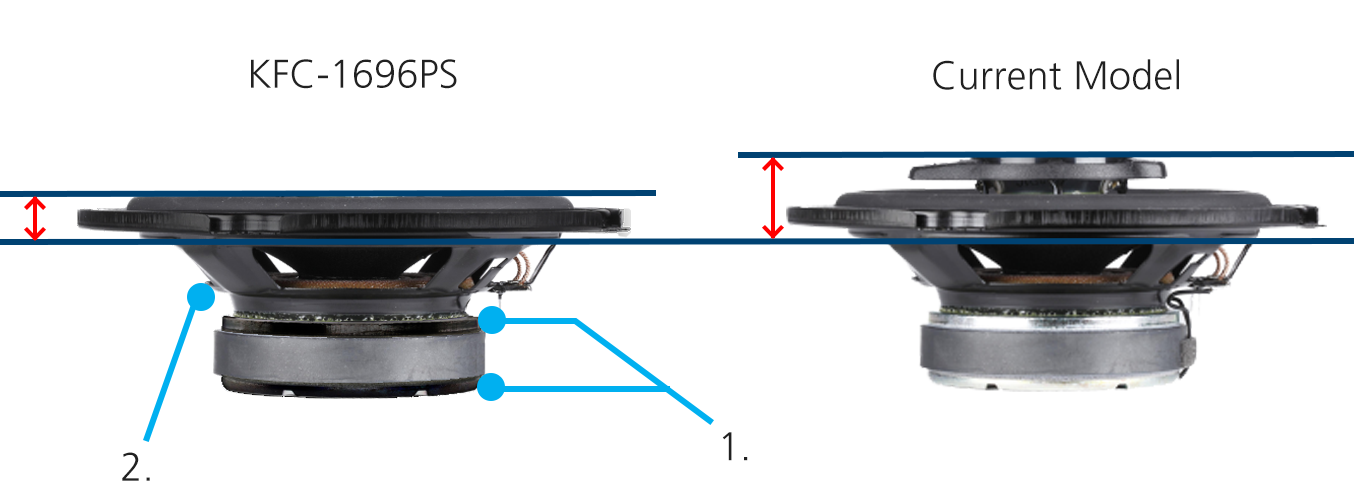

- Factory Location Fit - The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.
- Black Painted Yoke and Plate - By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.
- New Woofer Damper Shape (1) - Stress leveling points increase durability and provide a smoother sound response.
- New Frame Design (2) - Enlarged open area provides more bass and cleaner sound.
Specifications:
| Peak Input Power | 320W |
|---|---|
| Rated Input Power | 100W |
| Impedance | 4Ω |
| Woofer Features | 160mm 6-1/2 inch Polypropylene Cone |
| Diameter with Grille | 170mm |
| Tweeter Features | 40mm 1-3/16 inch Balanced Dome |
| Sensitivity | 88 dB/ W / m |
| Frequency Response | 75Hz -24KHz |
| Cutout Diameter | 123mm / 4-7/8 inch |
| Mounting Depth | 48mm / 1-7/8 inch |
| Depth with Grille | 74.8mm |
| Gross Weight | 3.6lbs |
| Weight of Magnet(Woofer) | 0.6lbs |
