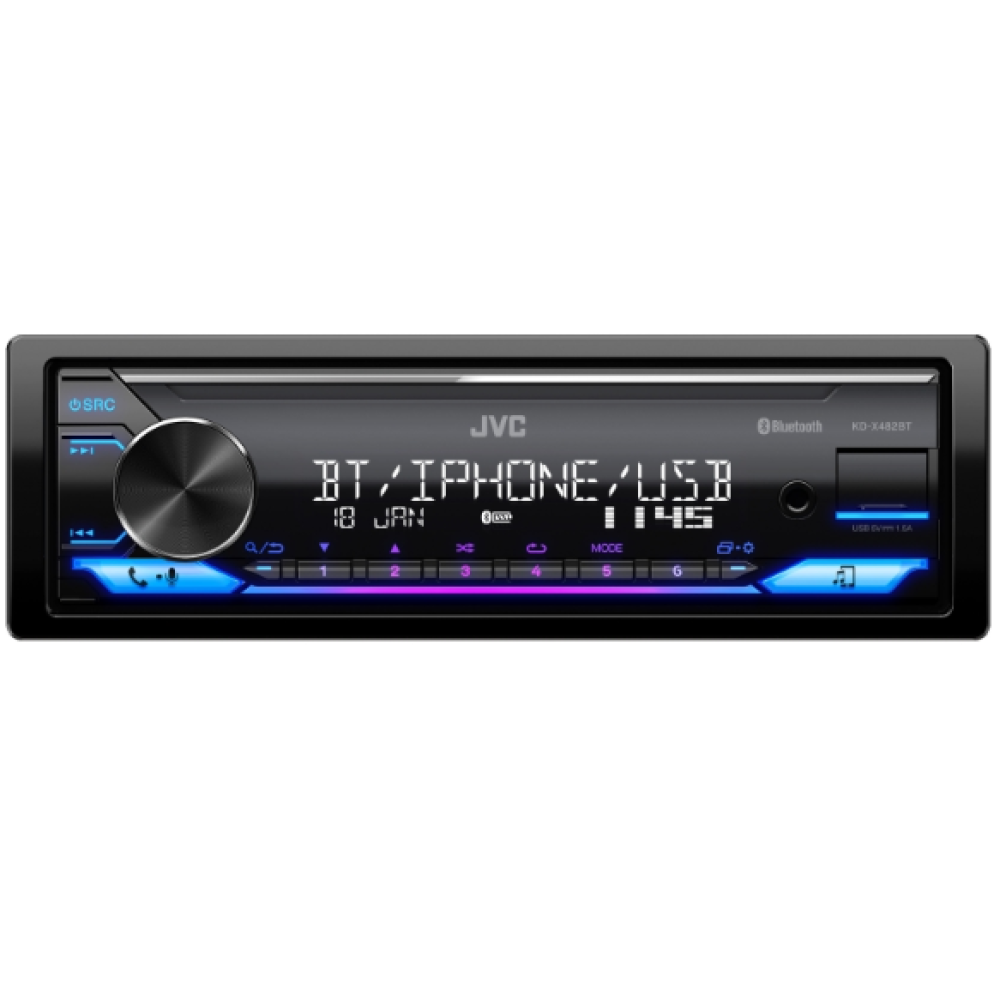

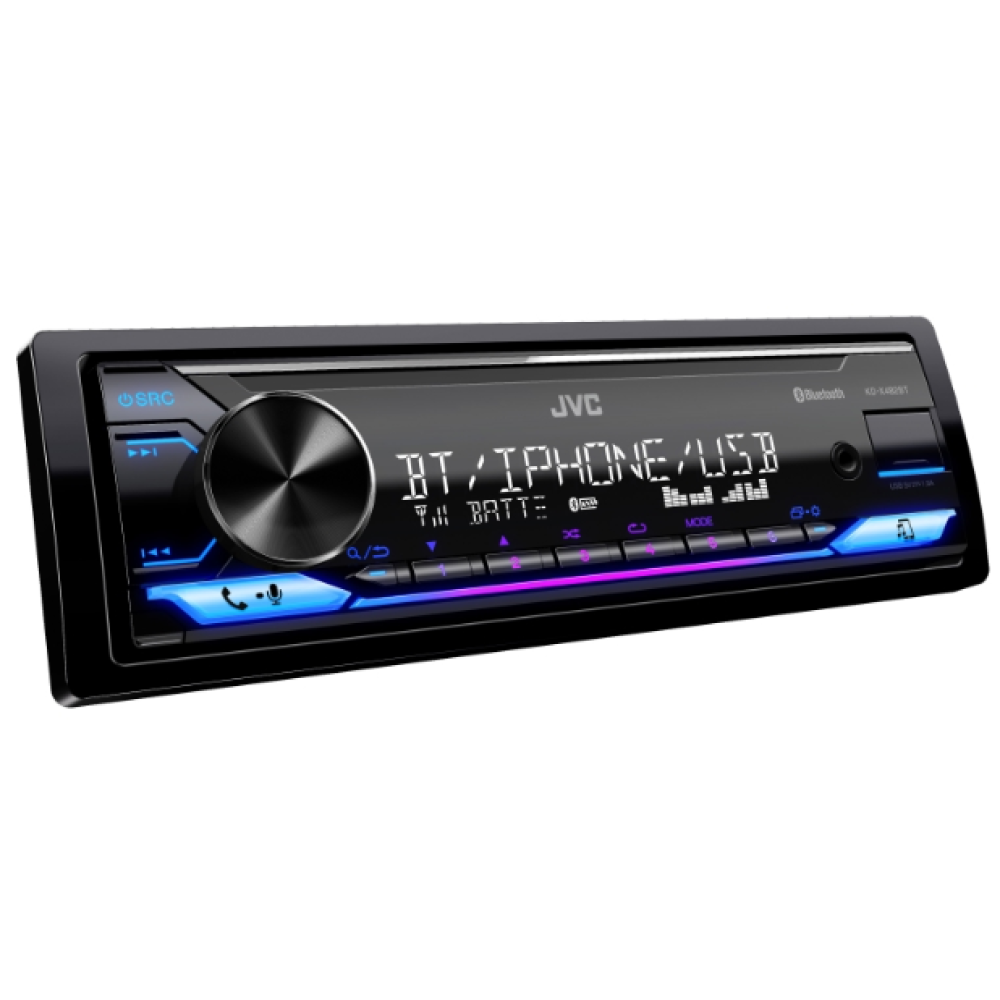

JVC 1-DIN MECHLESS AV RECEIVER WITH BLUETOOTH
Short chassis digital media receiver with Bluetooth® / USB / 13-Band EQ / variable-colour illumination / JVC remote app compatibility/ triple pre-outs (3.5V). | |
Code: | KD-X482BT |
Brand: | JVC |
RRP $159.00
Features:
Bluetooth: Audio Streaming & Control (A2DP, AVRCP)
- With built-in Bluetooth audio, you can listen to and control songs stored on your iPhone or Android smartphone – all wirelessly.
- Extra high-quality playback can also be achieved with FLAC compatibility that allows digital audio to be compressed in a lossless format.
- In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function.
- Just look for and choose the song you want to hear from the folder name and song name lists.
JVC Streaming DJ
- Connect up to 5 Bluetooth devices simultaneously, allowing you and your friends to take turns streaming music like a DJ.
- Move to the groove and get the party pumping to the max.
2 Phones Full-Time Connection
- You can connect two phones full time via Bluetooth, with secure and simple pairing.
- Calls to either phone can be received by a push of a key on the receiver.
Bluetooth Hands-Free Profile 1.7
- HFP 1.7 Wideband Speech is supported, allowing you to enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
iPhone® Bluetooth Automatic Pairing
- Just connect your iPhone via USB and the automatic Bluetooth pairing function will work to complete the pairing.
- No complicated manual procedure to worry about.
Low Battery Information
- When the battery of the connected Bluetooth device runs low, a beep sound is heard and “LOW BATTERY” appears on the receiver.
2-Line VA LCD Display
- Equipped with VA (Vertical Alignment) LCD panels that offer a broader angle of view and better visibility.
- The 2-line display provides more information with animation effects.

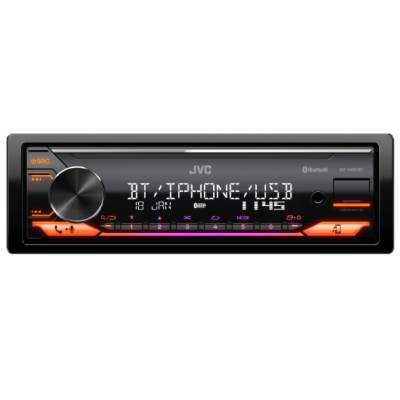

2-Zone Variable-Color Illumination
- You can mix the front panel illumination into 2 separate color zones.
- 50 preset patterns (49 colors + 1 user color preset) are available for easy customization.
- In addition, manual setting is possible to set each RGB color by 32 steps, providing a total of 32,768 different colors for each zone, 1 and 2, to match your preferences.
- You can even enjoy moving illumination, selectable from 10 color animation patterns.
Music Sync. Effect
- Changes illumination patterns according to the rhythm of the music.
- Illumination key colors can be preset the way you like.
High Current 1.5A Charging
- Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.
K2 Technology for Enhanced Digital Sound Quality
- K2 is a JVC original technology that reproduces the original master sound by expanding the frequency range.
- For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz to 192 kHz.
- It is also possible to recreate the high-frequency range above 20kHz that is cut during the CD formatting.
Time Alignment
- By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers.
- This ensures that the sound from each of the speakers will arrive exactly at the same time to the listening position.
Space Enhancement
- Space Enhancement is a virtual surround technology using 2 speakers.
- Simply select the vehicle size, and the receiver automatically adjusts the sound effectively.
Sound Response
- This function boosts the low frequencies which can be lost during compression to MP3 or AAC.
Sound Lift
- Virtually manipulate the height of the speakers by adjusting the sound frequencies.
Volume Link EQ
- Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise.
- It boosts frequencies in the music that are affected by road noise.
13-Band Equalizer
- Use the 13-Band Equalizer to manually adjust the sound to your taste.
Remote Control App
- Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* (now available for both iOS and Android).
- You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.
Short Body
- The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.
Steering Wheel Remote Control Ready
- Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Specifications:
Display
- Type: 2-Line VA LCD Display
- LCD Colour: White
- Key Colour: Variable
- Music Sync Effect: Yes
- Spanish Text Display Compatible: Yes
- Auto Dimmer: Yes
- Brightness Control:Yes
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
Bluetooth Control
- Built-in Bluetooth: Yes (Ver 4.2, Wired-Mic included)
- Hands Free Call: Yes (HFP 1.7.1)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes (AVRCP 1.6.1)
- Supported Audio Formats: AAC / SBC
- 5 BT-Audio Connection [JVC Streaming DJ]: Yes
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
- iPhone & Android Automatic Pairing: Yes (iPhone only)
- Low Battery Information: Yes
Android Control
- Android Music Playback: Yes (via Bluetooth)
iPod/ iPhone Control
- iPod/iPhone Music Playback: Yes (via USB or Bluetooth(R))
USB
- Position: Front
- USB Power Supply: Yes (1.5A)
- Drive Change Mode for Mass Storage Class: Yes

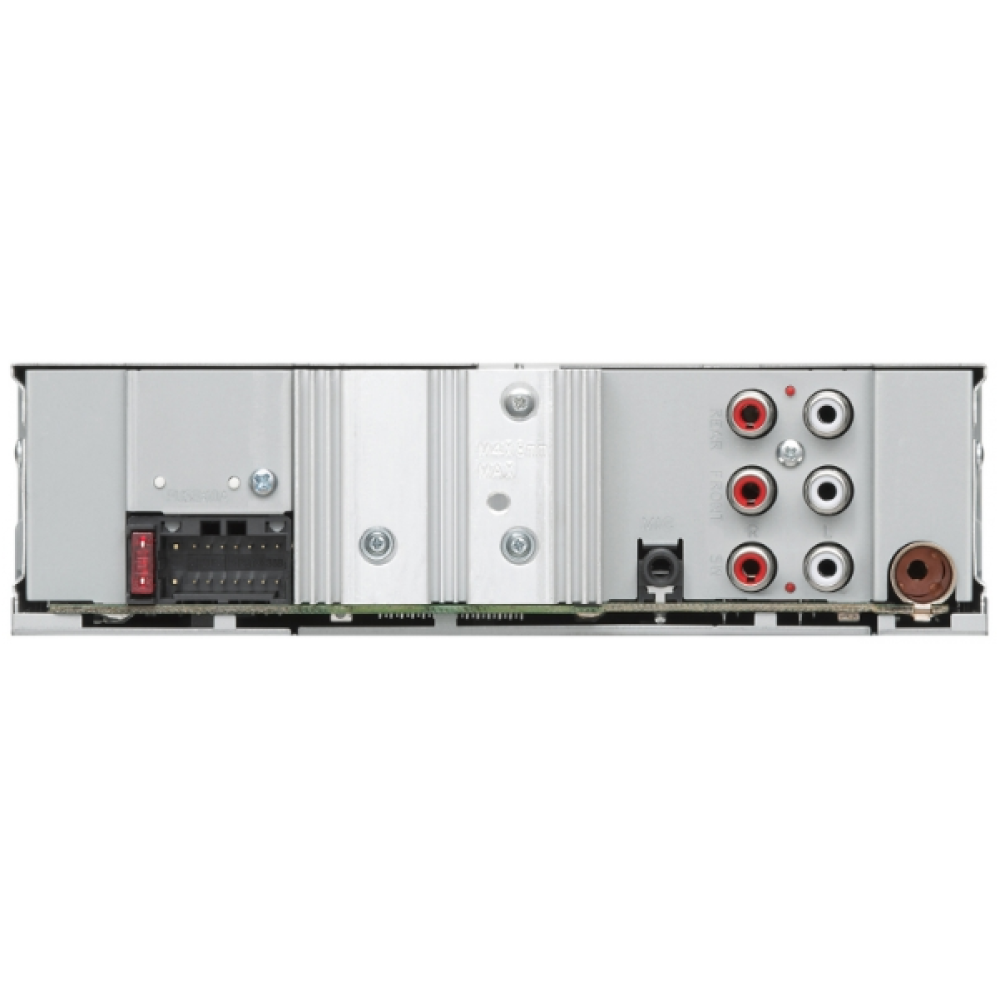

Inputs and Outputs
- AUX Input: 1 (Front)
- Line Output Terminals (Pair): 3 Pairs (Front + Rear + Subwoofer)
- Pre-Output Level: 3.5V
- Subwoofer Output with Level/Frequency Control: Yes (Level -50 to +10)
- Subwoofer Output Level: 3.5V
Tuner
- Radio Data System (RDS): Yes
- Preset Stations: 18FM + 6AM + 12SW
- Strong Station Memory (for FM): Yes
- Radio Timer: Yes (once/Daily/Weekly)
- Tuner Preset Memory (for power disconnection): Yes
- FM Frequency Range (Frequency Step): 87.5 - 108.0MHz
- AM Frequency Range (Frequency Step): (MW) 531 - 1,602kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
Audio
- Maximum Power Output: 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
- Full Bandwidth Power (at less than 1%THD): 22W x 4
- Subwoofer Direct Connection (Mono Lch): Yes
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (11-Preset)
- Bass Boost: Yes
- Loudness Control: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- K2 Technology: Yes
- Time Alignment: Yes
- Space Enhancement: Yes
- Sound Response: Yes
- Sound Lift: Yes
- Volume Link EQ: Yes
General
- Short Chassis: Yes
- Back Up Memory: Yes
- Detachable Face Panel: Yes
- Carrying Case: Yes
- Wireless Remote Control: Optional
- Steering Remote Control Ready: Yes
- Remote Control Application: Yes
- Dimensions (W x H x D): 182 x 53 x 100mm
- Weight: 0.6kg
- Unit weight in individual package: 0.8kg
USES DNA HARNESS AWHKE5
