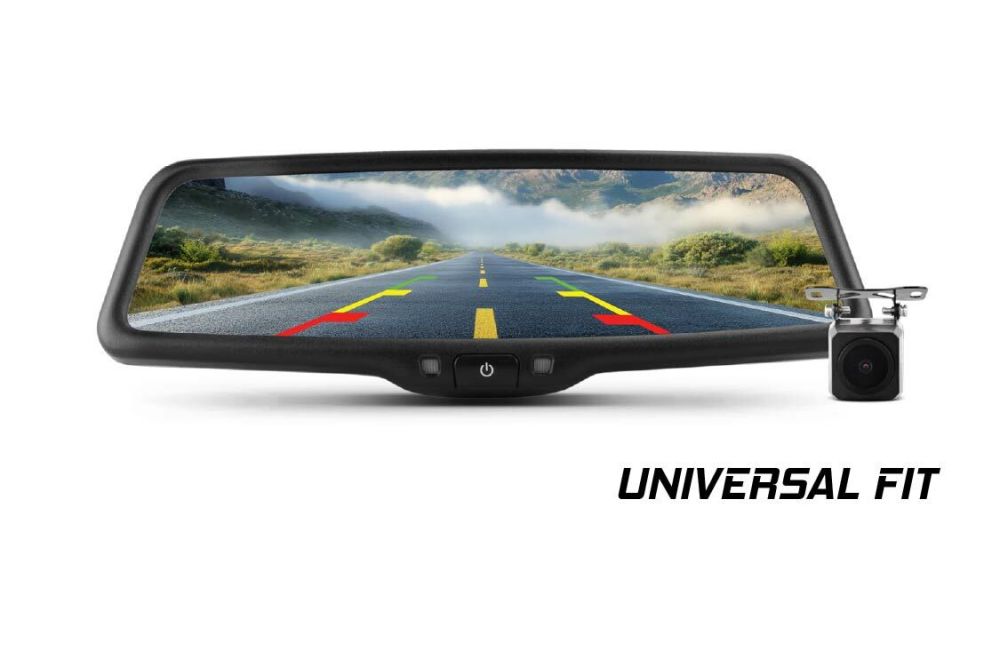

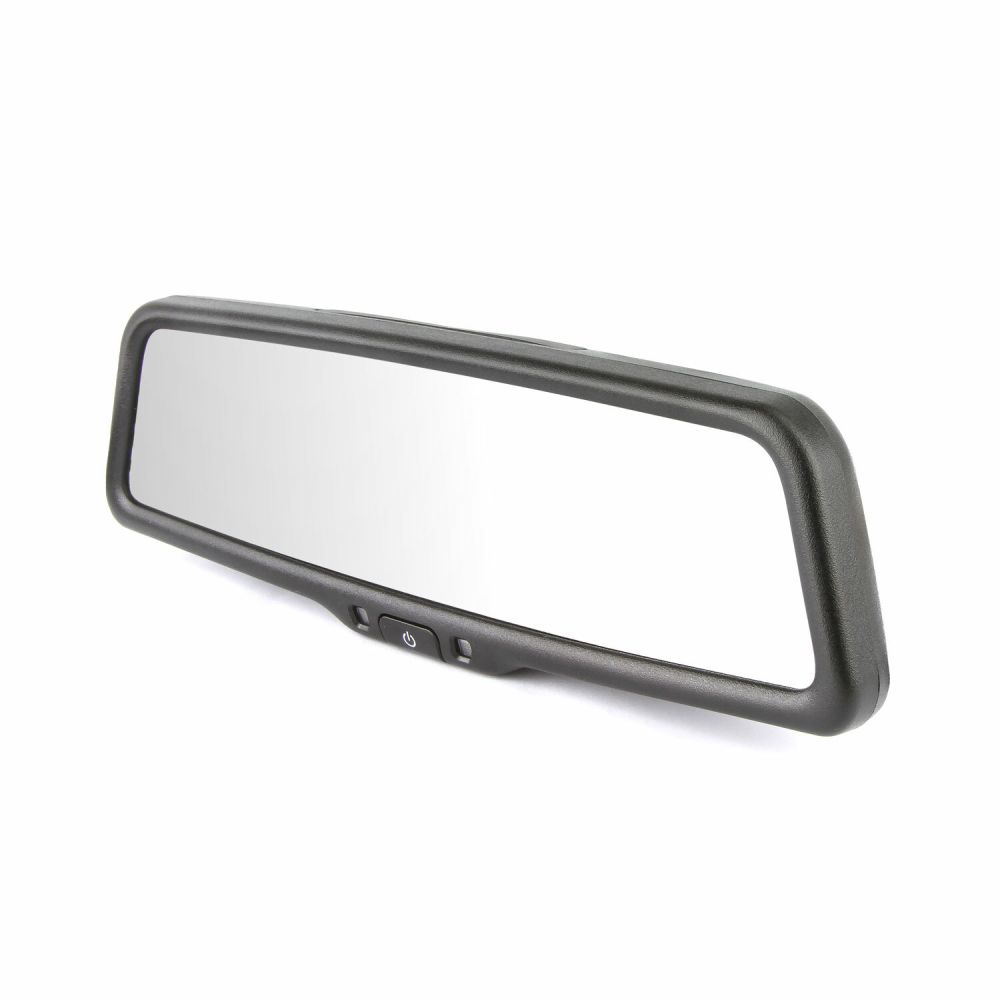

DNA 9.66" OEM-STYLE REPLACEMENT MIRROR & CAMERA PACK - UNIVERSAL

Features:

This rear-view mirror features a 9.66-inch full-screen display, providing clear, high-quality images from the rear-view camera.

The display automatically switches on when reverse gear is selected, making it easy to see behind your vehicle while reversing.

This pack includes a universal mounting bracket to suit most Toyotas, Mitsubishi, Nissan & Holden vehicles

• 9.66-inch full-screen display for a clear view from the rear camera
• Heavy-duty 120° rear-view camera with two mounting options: butterfly mount or glass mount
• 6-metre camera cable for easy connection between the rear camera and mirror monitor
• Automatic reverse display activates when reverse gear is engaged
• Parking gridlines are displayed on screen to assist with reversing and parking
• Reverse trigger circuit automatically switches the display to the rear camera when reverse is selected

Specifications:

Mirror Monitor Specifications:

• Monitor Size: 9.66 Inch MIPI IPS
• Monitor Resolution: 1280 x 320 pixel

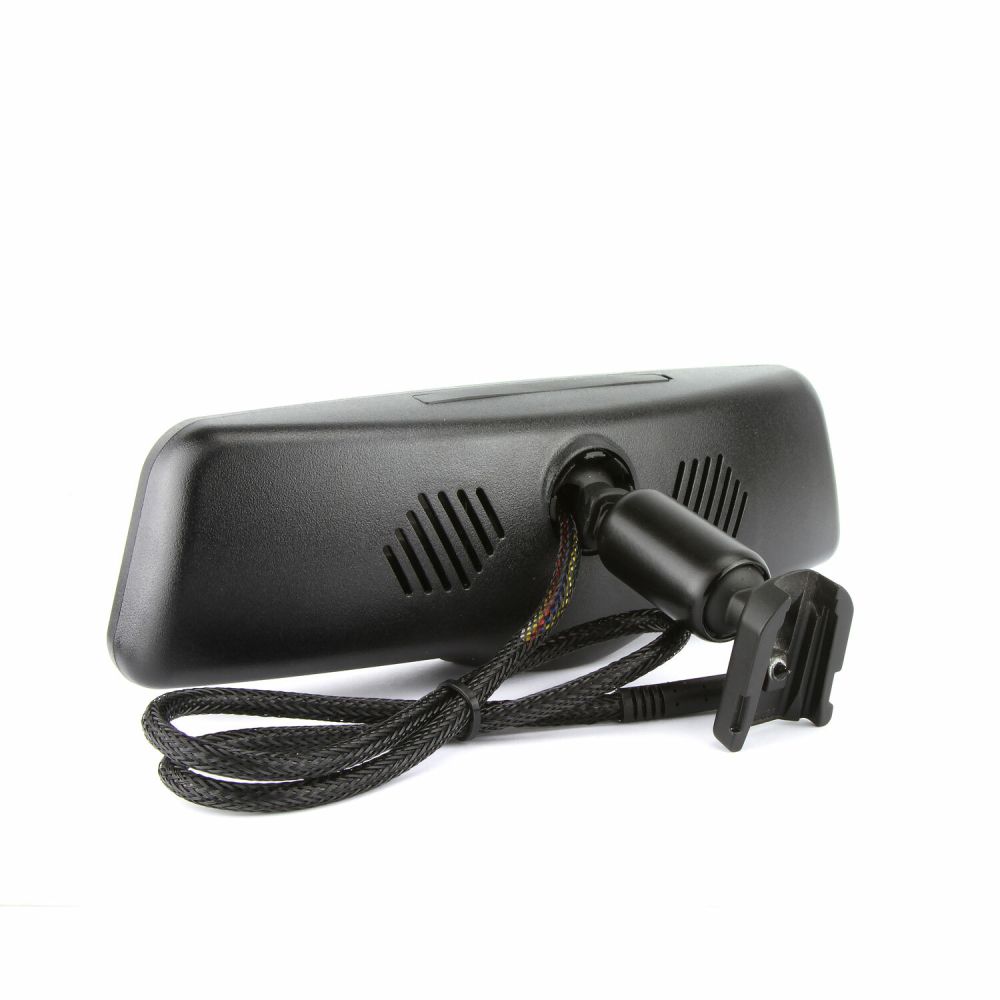

• Mounting Type: OEM mirror mount bracket
• Input Voltage: 5V 3A (12/24V Accessory power adaptor included)
• Video Input: 1x for connection to reverse camera
• Monitor Size: 81.6mm H x 253mm W x 48.3mm D
• Power Adaptor Voltage: 12/24V
• Input Voltage: 5V 3A

Rear Camera Specifications:

• Mount Type: Surface mount or glass mount
• Camera Resolution: 1080P AHD
• Camera Angle: 120 Degree
• Input Voltage: 12V
• Connection Type: 4 Pin
• Parking Gridlines:  Yes
• Camera Size: 23.5mm H x 23.5mm W x 34mm D

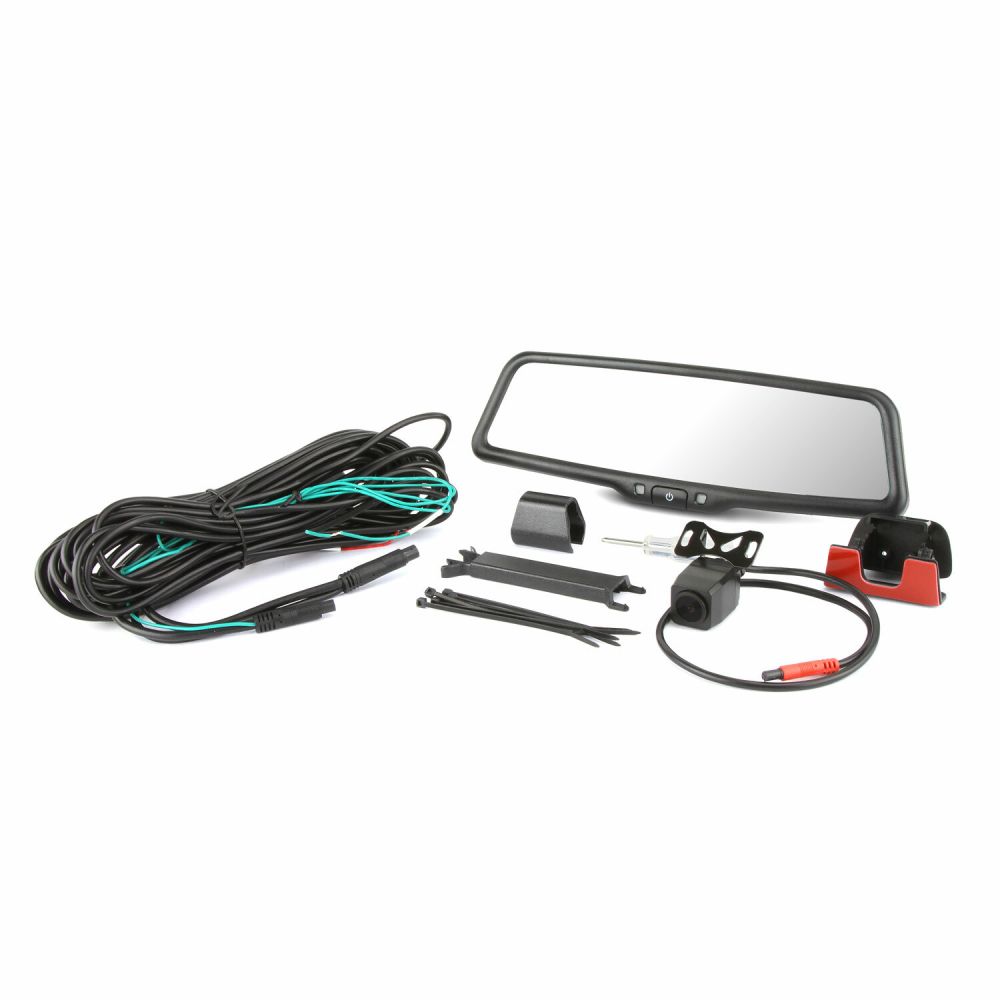

Kit Includes:

• 9.66 Inch Mirror Monitor
• AHD Reverse Camera
• Camera Extension Cable With Trigger Wire
• OEM mirror mount bracket
