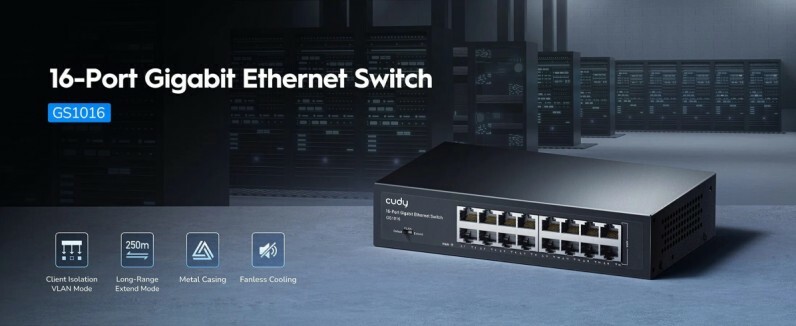

CUDY 16-PORT GIGABIT METAL NETWORK SWITCH

Speed up your network with Cudy's CU-GS1016 16-Port Gigabit Switch. Offering ultra-fast data transfer, plug-and-play setup, and a durable metal housing.
Code: CU-GS1016
Brand: CUDY


Description:

The Cudy CU-GS1016 16-Port Gigabit Metal Switch is crafted to upgrade your network connectivity, offering incredible speeds and stable data transfer across your home or office. Its compact and durable design offers versatile placement options whether its desktop or rack-mounted.

Featuring 16-gigabit ports that support 10/100/1000 Mbps speeds, making it ideal for bandwidth-intensive activities like streaming, gaming, and large data file transfers. Offering smooth and uninterrupted network experience with reliable connectivity to all of your devices.

Designed to be energy efficient, the CU-GS1016 uses IEEE 802.3az Energy-Efficient Ethernet (EEE) technology, reducing power consumption during low network activity.

It's plug-and-play design means you can easily integrate it into an existing network without the need for complex configurations or management. Connect your devices and the switch will optimise traffic flow for efficiency itself.

The CU-GS1016 supports Quality of Service (QoS), allowing for prioritisation of important data such as VoIP calls or video streaming, this ensures optimal performance and better traffic flow.

Features:

  • 16x GbE ports
  • Default/VLAN/Extend Modes
  • Extend for 250 Meters transmission
  • VLAN for Clients Isolation
  • Fanless cooling
  • Default/VLAN/Extend DIP Switch
  • Desktop, Rack-Mount

Specifications:

Category
Specification
Details
Product Model
Name
GS1016 V3.0
Network Standards
Supported
IEEE 802.3i 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x Flow Control
Ports
Number
16 x 10/100/1000 Mbps RJ45 Ports
Performance
Switching Capacity
32 Gbps

Packet Forwarding Rate
23.7 Mpps

MAC Address Table
8K

Buffer Memory
128 KB
Power
Supply
100-240 V AC, 50/60 Hz
Power Consumption
Max
12 W
Dimensions
Size
280 x 180 x 44 mm
Environment
Operating Temperature
0 ºC ~ 40 ºC (32 ºF ~ 104 ºF)

Storage Temperature
-40 ºC ~ 70 ºC (-40 ºF ~ 158 ºF)

Operating Humidity
10% ~ 90% non-condensing

Storage Humidity
5% ~ 90% non-condensing
