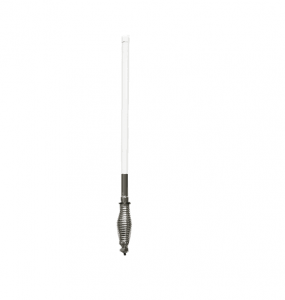

CEL-FI BLACKHAWK EDGE COMPACT 6DB SPRING BASE ANTENNA - WHITE

Tough fibreglass construction capable of withstanding 210km/h winds when mounted to a bull bar. Spring base handles vibration of corrugated, unsealed roads. L bracket for easy mounting included and height is 680mm.
Code: CF-ANT6DB-WH
Brand: CEL-FI

FEATURES:

  • The Blackhawk Omni Trucker Edge Compact at 68cm will provide the perfect solution for voice and data applications where high gain antennas are required while on the move. Combine with a Cel-Fi GO in your vehicle to never be out of contact when away from home.
  • Ideal for all carrier bands Telstra, Optus and Vodafone 3G/ 4G
  • Future-proof your vehicle installations with this high grade, ruggedised Omni Trucker Antenna
  • This premium grade cellular antenna will satisfy 3G and 4G capabilities for all the major networks in Australia and can be used for commercial and industrial 3G and 4G applications
  • 4 dBi gain across lower bands 698-960 MHz
  • 6 dBi gain across upper bands 1710-2170 MHz
  • Included is 4 metres of LMR240 Ultra Flex cable fitted with SMA/M connector
  • Made of ruggedised fibreglass to withstand 210km/h winds
  • Bracket additional
  • Colour: white

MECHANICAL SPECIFICATIONS:

Input Connector SMA Male
Cable 4.5m PT240 cable
Lightning Protection DC Ground
Antenna Construction Fibreglass radome, heavy-duty spring base
Dimensions 680 x Ø20 mm
Weight 1.5 kg
Rated Wind Velocity 210 km/h
Operating Temperature -40 to +65°C


ELECTRICAL SPECIFICATIONS:

Frequency Range 698-960 MHz / 1710-2170 MHz
Input Impedance 50 Ω
Peak Gain 4 / 6 dBi
VSWR ≤2.0:1 / ≤2.0:1
Polarisation Vertical, linear
Horizontal Beamwidth 360° (omnidirectional)
Vertical Beamwidth 48 / 23°
Maximum Input Power 50 W
