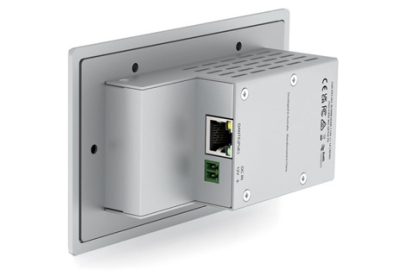

BLUSTREAM XLR DANTE® AUDIO WALL PLATE

2x2 Dante® XLR Audio Converter (EU / UK fitment)
Code: DA22XLR-WP
Brand: BLUSTREAM

Description:

  • The DA22XLR-WP is a multi-input / output wall plate to convert analogue audio within a digital Dante® networked audio system.
  • The DA22XLR-WP features 2 input channels of balanced / unbalanced / MIC audio with switchable 48v phantom power and 2 output channels of balanced / unbalanced audio.
  • The DA22XLR-WP is a plug & play device that is powered using PoE (Power over Ethernet), or via 12V power supply, offers support for AES67 RTP audio transport and magnetic faceplate design allows for both UK & EU backbox compatibility.

48V Phantom Audio Breakout Dante MIC PoE XLR

Features:

  • Dante® network wall plate interface for 2 x audio inputs and 2 x audio outputs
  • Converts 2 x balanced / unbalanced / MIC audio sources to Dante® audio channels
  • Converts 2 x Dante® audio channels to balanced / unbalanced audio outputs
  • Switchable 48V Phantom power for each MIC XLR input
  • Adjustable MIC / line sensitivity from +24dBu to -28dBV for each XLR input
  • Adjustable line gain from +18 dBu to -10 dBV for each XLR output
  • Supports: 44.1, 48 & 96kHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 1, 2 or 5ms configurable using Dante® Controller)
  • Supports AES67 RTP audio transport
  • Features Class 0 IEEE 802.3af PoE for powering of product from any PoE switch
  • Supports power via 12V DC adapter (not included) for when network switch does not support PoE
  • Magnetic faceplate surround allowing for both UK & EU backbox compatibility

Specifications:

  • Audio Input Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
  • Audio Output Connectors: 2 x Analogue balanced/unbalanced 3-Pin XLR connector
  • Network Connectors: 1 x PoE Dante® Ethernet Connection (RJ45)
  • Configuration Switches: 4 x 5 position rotary dials (Sensitivity / Gain), 2 x Push button (48V Phantom power)
  • Firmware  Upgrade: 1 x Micro-USB UART port
  • Module Dimensions (L x W x H): 136mm x 76mm x 45mm (without faceplate)
  • Faceplate Dimensions (L x W x H): 146mm x 86mm x 5mm
  • Cut Out Dimensions (L x W x H): 109mm x 50mm x 36mm
  • Mounting Hole Spacing: UK 121mm CTC, EU 60mm CTC
  • Backbox Requirements: UK double gang backbox / EU double gang backbox
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: Class 0 IEEE 802.3af PoE or 12v/1A DC 2-Pin Phoenix connector

Includes:

  • 1 x DA22XLR-WP
  • 1 x Magnetic Faceplate
  • 1 x Quick Reference Guide
