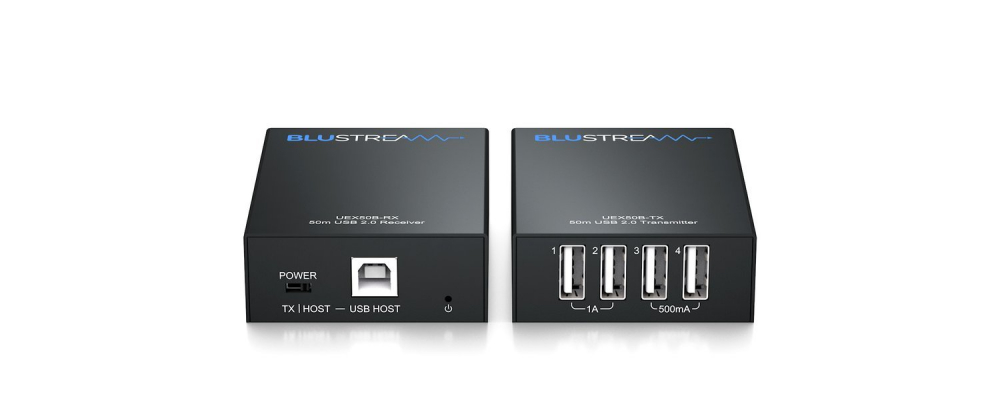

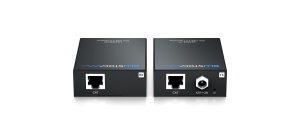

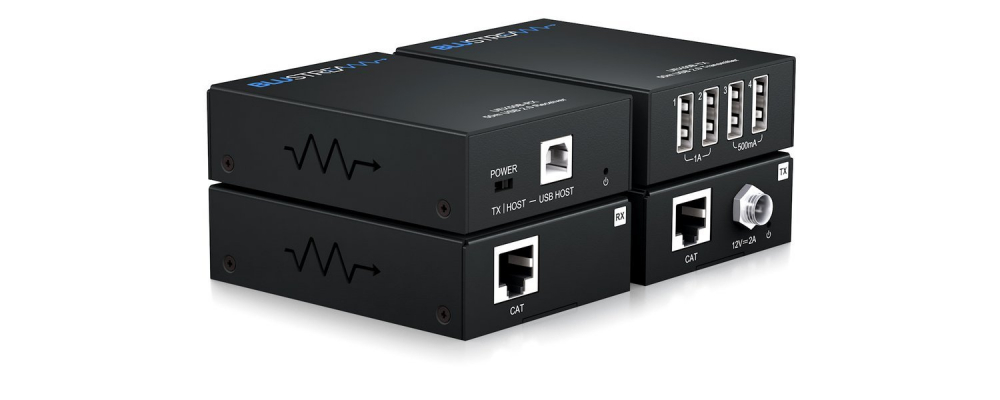

BLUSTREAM USB 2.0 1x USB-B TO 4x USB-A EXTENDER KIT
| Delivers USB 2.0 extension up to 50m over a single CAT cable, allowing up to 4 x USB peripheral devices to be connected to a single USB host with charging/power. Supports a combined transmission data bandwidth of up to 480Mbps. | |
| Code: | UEX50B-KIT |
| Brand: | BLUSTREAM |
FEATURES:
- Extends USB up to a distance of 50m over a single CAT cable
- Supports USB 2.0 signal extension
- Backwards compatible with USB 1.1 devices
- Combined transmitted data bandwidth up to 480Mbps
- 1 x USB Type-B on the Transmitter for connection to the Host device
- 4 x USB Type-A hub on the Receiver for connection to peripheral devices
- USB Type-A ports 1-2 support 5V 1A, with ports 3-4 supporting 5V 500mA
- Simple plug and play, no driver installation or setup required
*Signal distribution length subject to length of device and host USB cables and CAT cable type
SPECIFICATIONS:
UEX50B-RX
- CAT Connectors: 1 x RJ45 connector
- USB Port: 1 x USB Type-B
UEX50B-TX
- CAT Connectors: 1 x RJ45 connector
- USB Port: 4 x USB Type-A
- Casing Dimensions (W x D x H ): 84mm x 60mm x 23.5mm (TX/RX)
- Shipping Weight (kit): 0.5kg
- Operating Temperature: 32°F to 104°F (-5°C to +55°C)
- Storage Temperature: -4°F to 140°F (-25°C to +70°C)
- Power Supply: 12V/2A DC
INCLUDES:
- 1 x UEX50B-TX
- 1 x UEX50B-RX
- 1 x USB Type-A to USB Type-B cable
- 1 x 12V/2A DC power supply
- 2 x Mounting kit
- 1 x Quick Reference Guide
