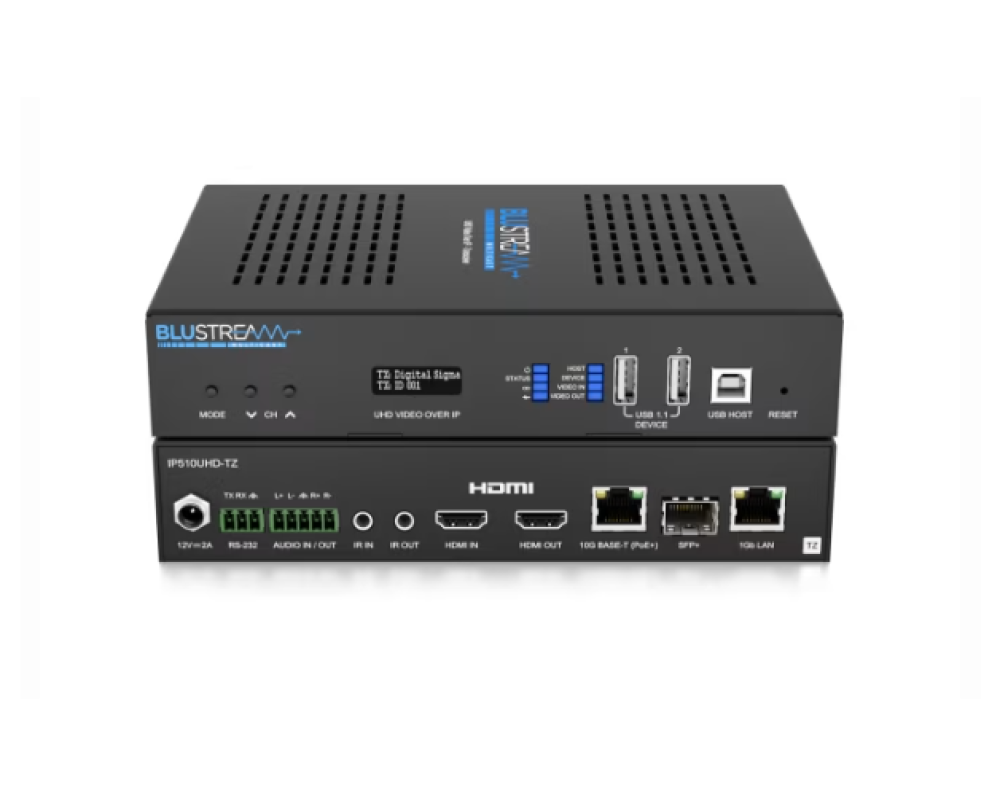

BLUSTREAM SIMULTANEOUS MULTICAST UHD VIDEO OVER IP TRANSCEIVER - 4K 18GBPS

Description:

The Blustream IP500UHD Transceiver is a SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks.The system includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals. It also provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB (KVM) and 1Gb Ethernet. The IP500UHD-TZ is ideal for mission-critical 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.

Features:

• Advanced 18Gbps UHD Video over 10Gb network with visually lossless compression, and zero latency
• Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby Vision*
• Supports video scaling and seamless switching
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Features 4 operational modes:
  • Matrix distribution (requires 10Gb network switch)
  • Video Wall (requires 10Gb network switch)
  • Multiview mode (requires 10Gb network switch)
  • One-to-one HDMI extender (no network switch required)
• Supports fixed signal routing function for IR, RS-232, CEC and USB
• USB 1.1 end to end/point to point pass-through for KVM
• Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• PoE (Power over Ethernet) to power Blustream products from PoE+ switch
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2A power supply (should Ethernet switch not support PoE+)

Specifications:

• Video input: 1 x HDMI Type A, female
• Video output: 1 x HDMI Type A, female
• Audio input / output: 1 x 5-pin Phoenix connector
• Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Port: 1 x USB-Type B (host) , 2 x USB-Type A (device)
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• Dimensions (W x D x H ): 195mm x 153mm x 37mm
• Dimensions including connections (W x D x H ): 191mm x 160mm x 37mm , without feet
• Shipping weight (Kit): 1.05kg
• Operating temperature: 32°F to 104°F (0°C to 40°C)
• Storage temperature : -4°F to 140°F (-20°C to 60°C)
• Operating altitude: < 2,000m

Includes:

• 1 x IP510UHD-TZ Transceiver
• 1 x IR Receiver
• 1 x IR Emitter
• 4 x Rubber Feet
• 1 x Mounting Kit
• 1 x Quick Reference Guide

*HDR and Dolby Vision content requires Genlock mode to be enabled (video scaler in passthrough mode)

Please note: The Blustream Multicast system distributes HDMI video over 10Gb managed network hardware. It is advised that Blustream Multicast products are connected on an independent network switch to prevent interference or drop in signal performance due to other network products. Please take care to make sure that you have read and understood the instructions in the User Manual available to download from the Blustream website, and that you have setup your network switch correctly prior to connecting any Blustream Multicast products. Failure to do so may result in problems with configuration of the system and video performance.
