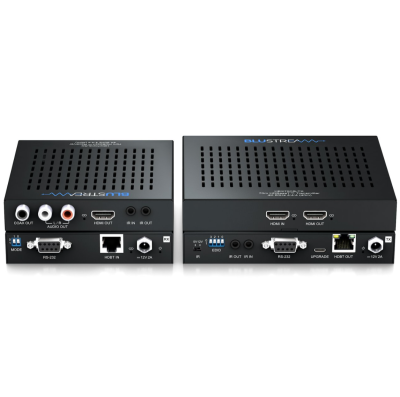

BLUSTREAM HDBASET 4K 18GBPS HDMI EXTENDER KIT - 70M

Description:

• Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.
• The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoC up to lengths of 70m (4K to 40m). The transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The receiver features simultaneous analogue stereo and digital coax audio breakout.

Features:

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
• Video down-conversion on HDMI receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the transmitter HDMI loop out.
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• HDMI re-clocking on the HDBaseT™ receiver to help solve HDMI HDCP, compatibility and handshaking issues
• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through
• Supplied with Blustream 5V IR receiver and emitter
• Advanced EDID management
• HDCP 2.2 compliant

Specifications:

HEX70CS-TX:

• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID DIP Switch: 4-pin

HEX70CS-RX:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, female
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)

• Power Supply: 12V/2A DC, screw type connector
• Power Consumption: 12.7W
• Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
• Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
• Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)
• Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)
• Ind. Extender Weight: 0.35kg (excluding accessories)
• Carton / Box Dimensions (W x D x H):
• Shipping Weight: 1.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kits Included

Includes:

• 1 x HEX70CS-TX
• 1 x HEX70CS-RX
• 2 x Mounting Brackets
• 1 x 12V/2A Power Supply
• 1 x IR Emitter
• 1 x IR Receiver
• 1 x Quick Reference Guide
