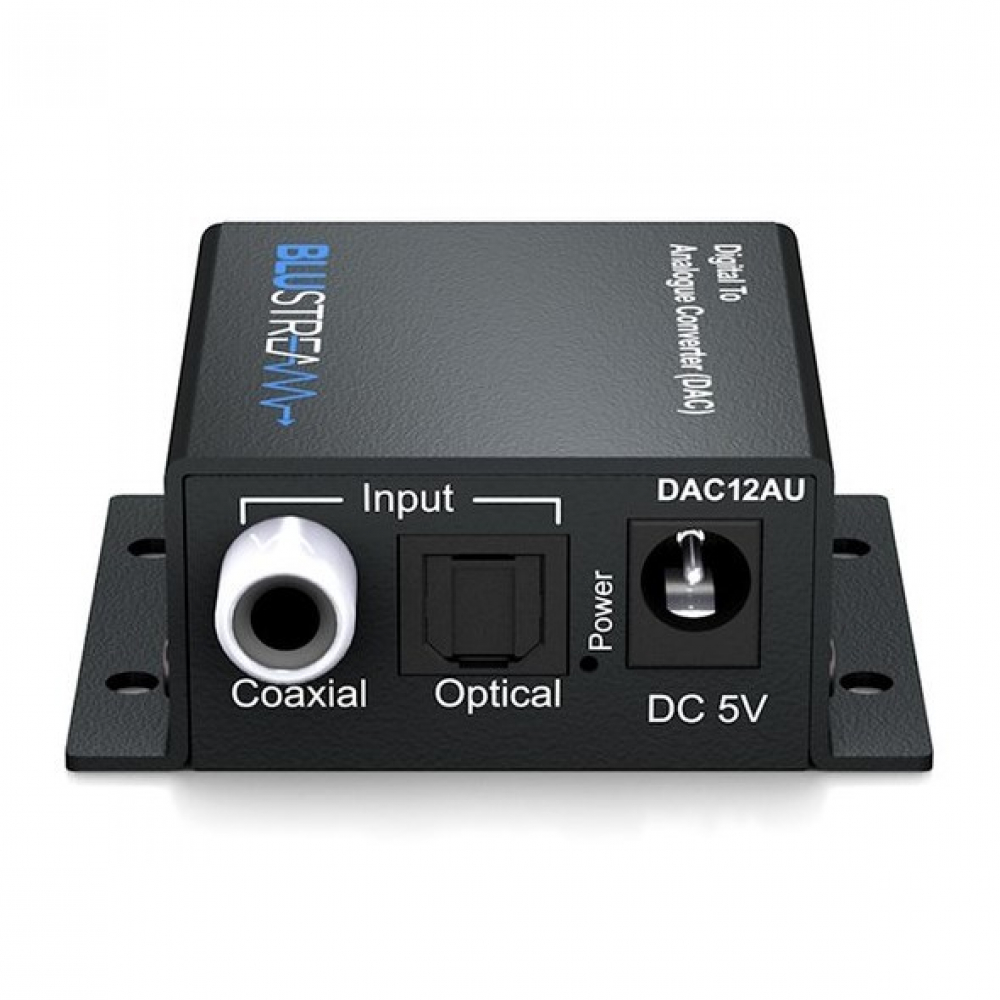

BLUSTREAM DIGITAL TO ANALOGUE AUDIO CONVERTER (DAC)

Is designed to convert either coaxial or optical signals from a digital signal to analogue stereo audio. This provides the perfect cost effective solution when connecting the digital audio output from a TV display to an analogue input on an amplifier.
Code:	DAC12AU
Brand:	BLUSTREAM

Digital to Analogue audio Converter) converts either optical or coaxial digital to analogue stereo left / right audio output
Converts optical digital audio input to coaxial digital audio output
Auto-detects digital connection in use
Optical digital input has priority over coaxial digital input
Outputs coaxial digital and analogue L/R audio concurrently*
Supports sample rates 32 kHz, 44.1kHz, 48 kHz, 96 kHz & 192 kHz up to 24-bit resolution
Plug-and-play

* DAC12AU does not down mix Dolby / DTS / multi-channel audio signals

Audio Input Connectors: 1 x optical digital & 1 x coaxial RCA (S/PDIF)
Audio Output Connectors: 2 x Analogue stereo left / right & 1 x Coaxial RCA (S/PDIF)
Dimensions (W x H x D): 50mm x 26mm x 42mm
Dimensions including connections (W x H x D): 68mm x 26mm x 42mm
Shipping Weight: 0.4kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: 5V/1A DC
