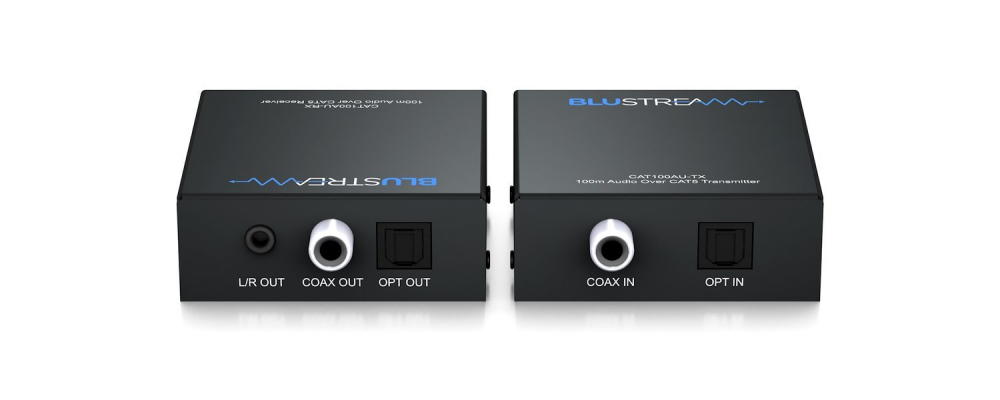

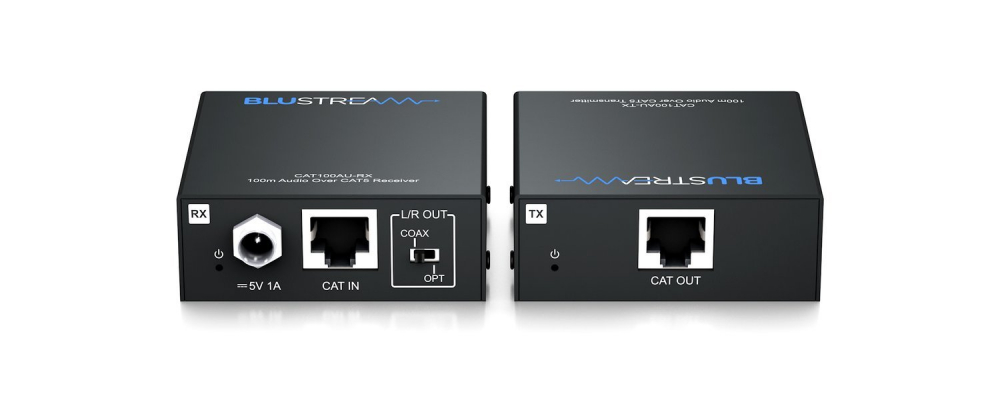

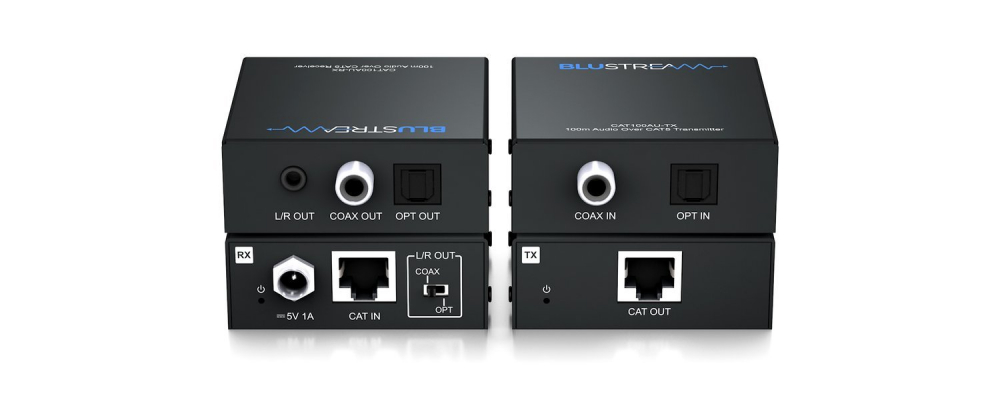

BLUSTREAM DIGITAL AUDIO OVER CAT5/6 EXTENDER - 100M

Transmits digital audio signals up to a distance of 300m (192kHz signals up to 100m). This device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.

Code: CAT100AU
Brand: BLUSTREAM

FEATURES:

  • Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable
  • Both optical and coaxial digital can be distributed at the same time
  • Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output (source selected on receiver unit)
  • Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution
  • Ultra low jitter and high fidelity design

*CAT100AU supports distances of up to: 192kHz - 100m; 96kHz - 150m; < 48kHz - 300m

SPECIFICATIONS:

CAT100AU-TX:

  • Audio Input Connectors: 1 x Optical (S/PDIF) & 1 x RCA (S/PDIF)
  • Output Connectors: 1 x RJ45

CAT100AU-RX:

  • Input Connectors: 1 x RJ45 & 5V/1A DC
  • Output Connectors: 1 x Optical (S/PDIF), 1 x RCA (S/PDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack
  • Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)
  • Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)
  • Ind. Balun Weight: 0.13kg (excluding accessories)
  • Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 5V/1A DC, barrel type connector
  • Power supplied to the transmitter unit from the receiver

INCLUDES:

  • 1 x CAT100AU-TX
  • 1 x CAT100AU-RX
  • 1 x 5V/1A DC Power Supply
  • 1 x Mounting Kit
  • 1 x User Manual
