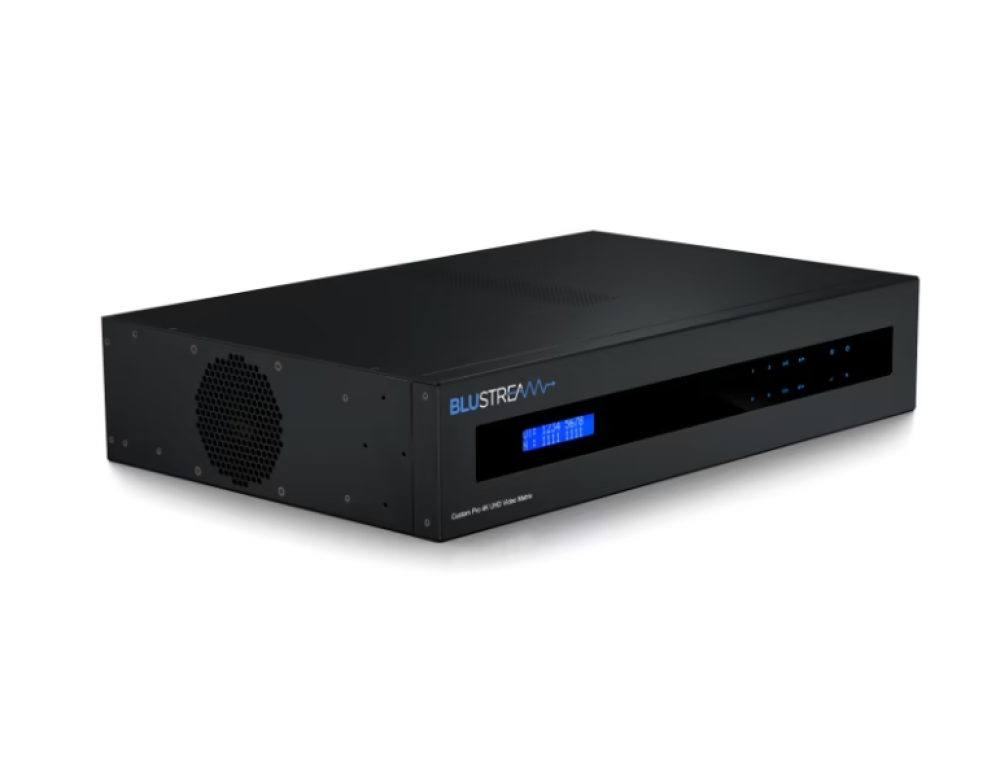

BLUSTREAM CUSTOM PRO 8X8 HDBASET™ CSC MATRIX

Description:

• The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Features:

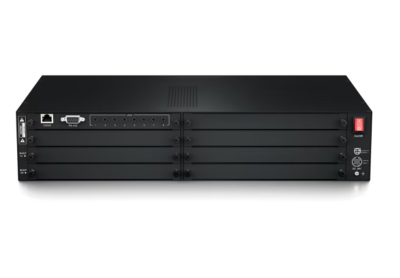

• Custom Pro Matrix Hub with 8 x modular bays for population of control & input / output boards
• Up to 8 x video inputs and 8 x video outputs can be achieved using Custom Pro boards
• 8 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• Control of Matrix via front panel, IR, RS-232, TCP/IP and Web GUI / App
• Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards
• Web interface module for control and configuration of Matrix
• 3rd Party drivers available for major home control brands
• Advanced EDID management
• HDCP 2.2 Compliant

Specifications:

• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• RS-232 Serial Ports: 1 x 9-pin RS-232 connector
• TCP/IP Control: 1 x RJ45, female
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282mm without feet
• Casing Dimensions (W x H x D): 440mm x 94mm x 288mm with feet / connections
• Shipping Weight: 5.0kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/8A DC
