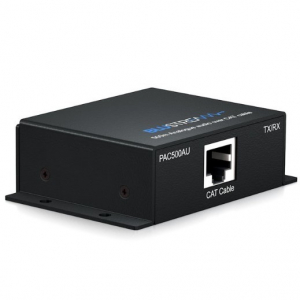

BLUSTREAM ANALOGUE AUDIO OVER CAT5/6 EXTENDER - 500M
| The transmits analogue audio signals up to distance of 500m. This plug and play device requires no power supply making it ideal for simple installations in which analogue audio needs to be extended over long distances. |
|
| Code: | PAC500AU |
| Brand: | BLUSTREAM |
FEATURES:
- Extend analogue audio signals up to distances of 500m over a single CAT cable
- Passive solution - Extender kit does not require a power supply
SPECIFICATIONS:
PAC500AU-TX

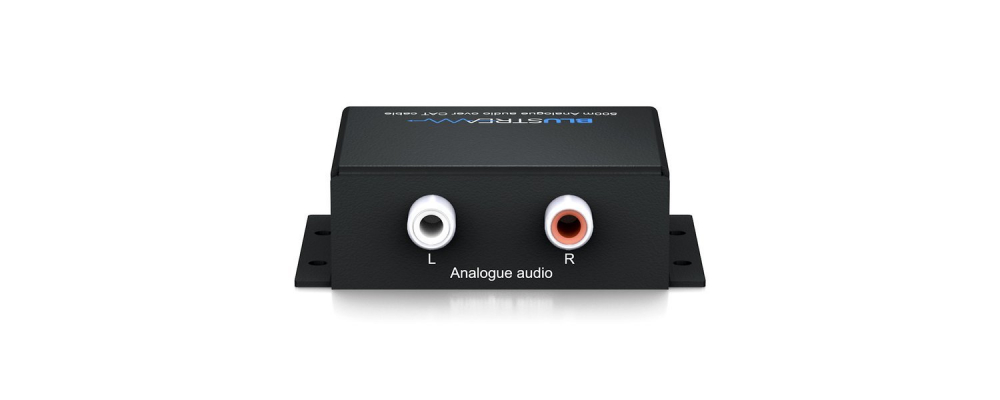

- Audio Input Connectors: 2 x RCA analogue left / right

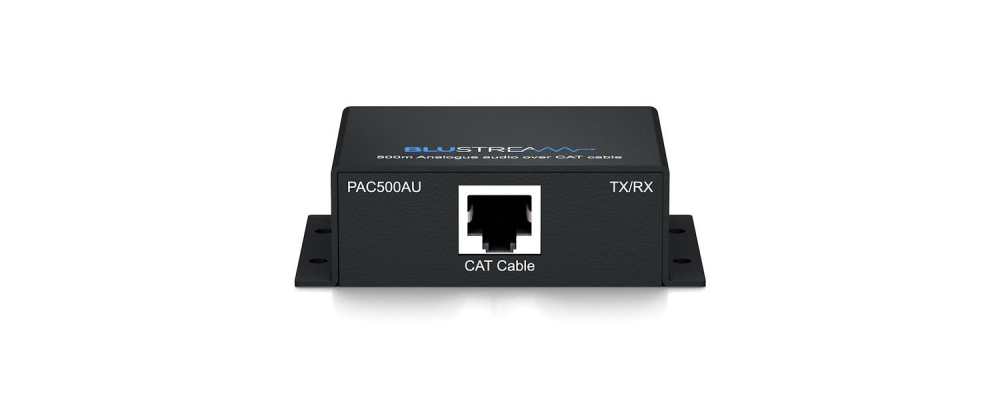

- Output Connectors: 1 x RJ45
PAC500AU-RX
- Input Connectors: 1 x RJ45
- Output Connectors: 2 x RCA analogue left / right
- Casing Dimensions (W x H x D): 79mm x 55mm x 24mm
- Dimensions Including Connections (W x H x D): 79mm x 63mm x 24mm
- Shipping Weight: 0.4kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
*Note: PAC500AU TX/RX units can used as both a transmitter or receiver
INCLUDES:
- 1 x PAC500AU RX
- 1 x PAC500AU TX
- 1 x Quick Reference Guide
