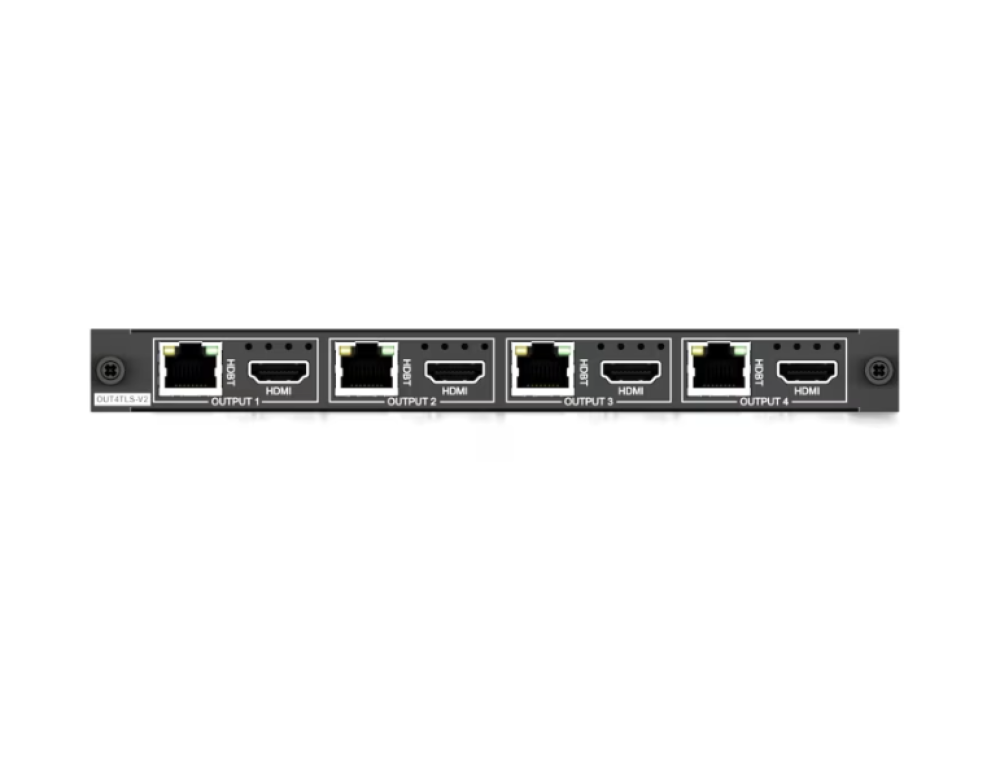

BLUSTREAM 4-WAY HDMI / HDBASET™ CSC OUTPUT BOARD - 4K HDR UP TO 40M

4-Way Simultaneous HDBaseT™ / HDMI 2.0 Output Board - 4K 60Hz 4:4:4 to
40m (1080p up to 70m)
Code: PRO-OUT4TLS-V2
Brand: BLUSTREAM

Description:

  • The PRO-OUT4TLS-V2 output board offers 4 x dual HDBaseT™ outputs  for connection to a HDBaseT™ receiver and HDMI display per zone.
  • The PRO-OUT4TLS-V2 utilises CSC technology allowing support of HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 signal distribution up to lengths of 40m (1080p to 70m).
  • The PRO-OUT4TLS-V2 features independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.
  • The PRO-OUT4TLS-V2 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.

Features:

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Features 4 x simultaneous HDMI / HDBaseT™ outputs for connection to HDMI displays and HDBaseT™ receivers
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m*
  • Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:
    • 1080p 60Hz (for screens that do not support 4K)
    • 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
  • Extends HDMI 1080p video up to 70m
  • Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
  • Supports PoC to power Blustream HDBaseT™ receivers
  • Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
  • HDCP 2.2 Support
  • To be used with the HEX70CS-RX receivers

Specifications:

  • Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 4 x HDBaseT™ RJ45 connector
  • Card Dimensions (W x H x D):182mm x 22mm x 177mm
  • Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm
  • Shipping Weight: 0.5kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TLS-V2 must be used with a HDMI 2.0 18Gbps Custom Pro input board
