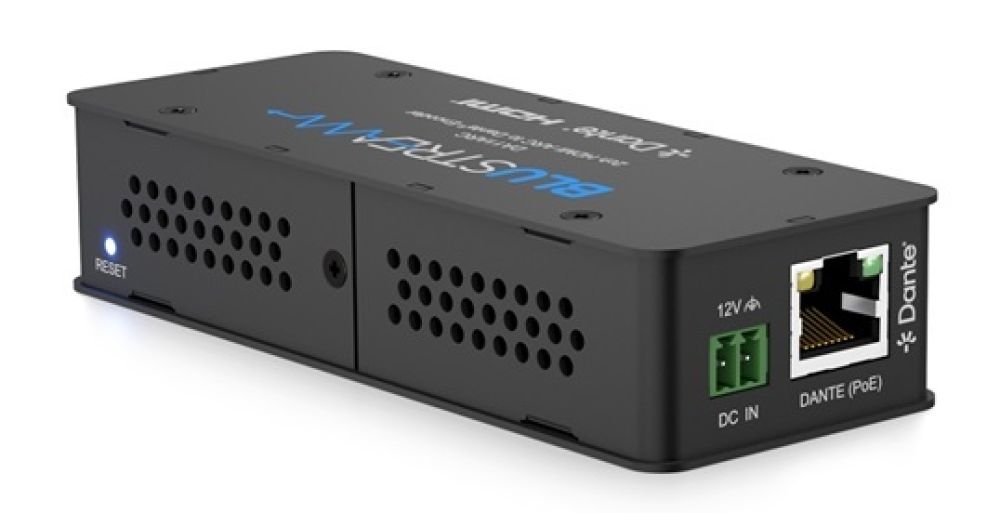

BLUSTREAM 2CH HDMI ARC TO DANTE® ENCODER

2ch HDMI ARC to Dante® Encoder
Code: DA11ARC
Brand: BLUSTREAM

Description:

  • Our DA11ARC has been designed to encode HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal.
  • The DA11ARC is a plug & play device that is powered using PoE (Power Over Ethernet). The DA11ARC also supports AES67 RTP audio transport.

ARC Dante Plug Play PoE

Features:

  • Encodes HDMI ARC (Audio Return Channel) 2ch audio to a Dante® digital signal
  • Supports: 44.1, 48, & 96kHz sample rates @ 24 Bit
  • Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
  • Input sensitivity/volume control adjustable via CEC, web GUI or API
  • Supports AES67 RTP audio transport
  • Features Class 0 802.3af PoE for powering of product from any PoE switch
  • Local 12v power supply input for when network switch does not support PoE*

Specifications:

  • Casing Dimensions (L x W x H): 120mm x 47mm x 26mm
  • Shipping Weight: 0.3 Kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: - 4°F to 140°F (- 20°C to 60°C)
  • Power Supply: Class 0 IEEE 802.3af POE PD or 12V/1A DC 2-pin Phoenix connector
  • Audio Output Connector: 1 x RJ45, female (100 Mbps Dante® network)
  • Audio Input Connector: 1 x HDMI, female (2ch ARC audio only)

Includes:

  • 1 x DA11ARC
  • 1 x Quick Reference Guide

* PS121PH power supply sold separately

Please Note: The DA11ARC will only decode a 2ch HDMI ARC signal and is not compatible with multi-channel HDMI audio codecs.
