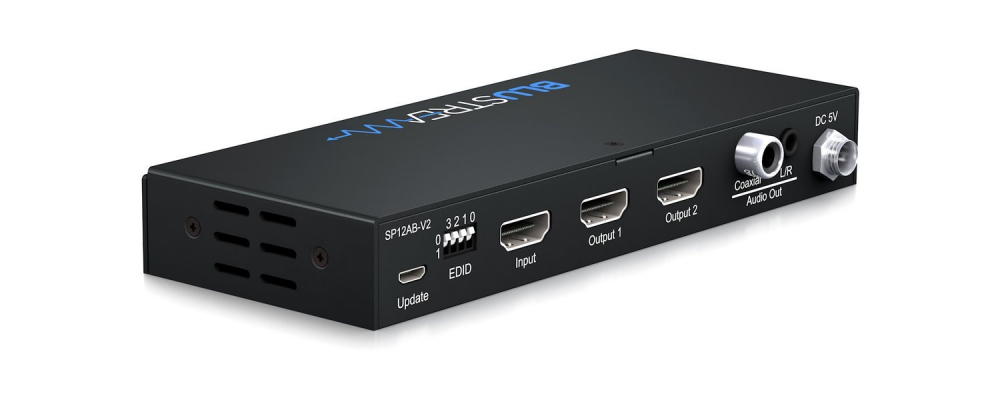

BLUSTREAM 2-WAY 4K 18GBPS HDMI SPLITTER WITH AUDIO OUT
| The SP12AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4. *Replaces SP12AB-V2 |
|
| Code: | SP12CS |
| Brand: | BLUSTREAM |
Features:
- Features 1 x HDMI input that is replicated to 2 x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently
- Advanced EDID management
- HDCP 2.2 support
Specifications:

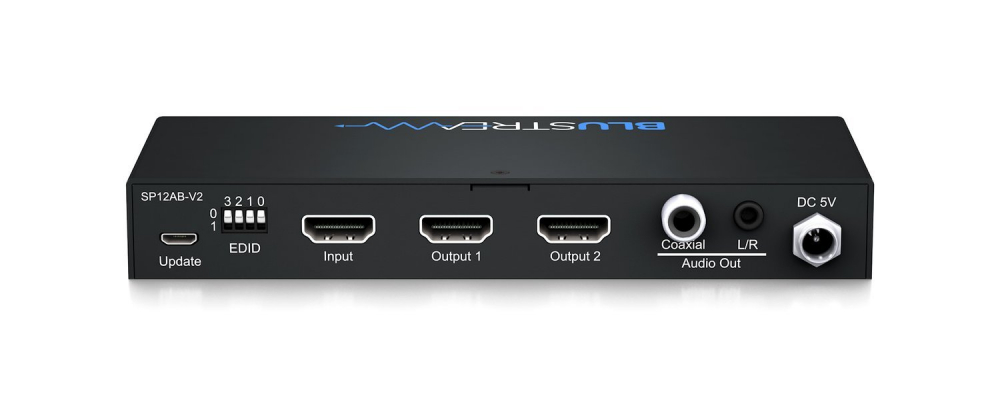

- Video Input Connectors: 1 x HDMI Type A
- Video Output Connectors: 2 x HDMI Type A
- EDID: 4-pin DIP switch
- Audio Output Connectors: 1 x RCA (SPDIF), 1 x Analogue audio L/R (3.5mm stereo Jack)
- Dimensions (W x D x H): 159mm x 64mm x 23mm , without feet
- Shipping Weight: 0.6kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: 5V/1A DC
Includes:
- 1 x SP12CS
- 1 x 5V/1A DC Power Supply
- 1 x Quick Reference Guide
