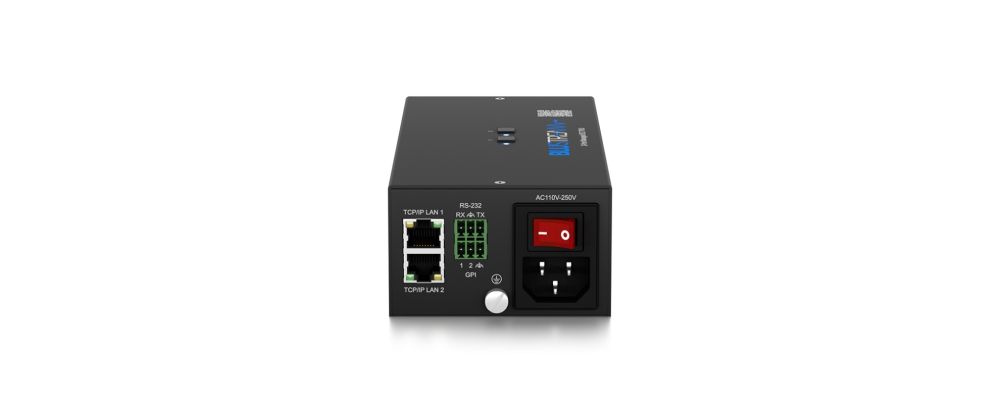

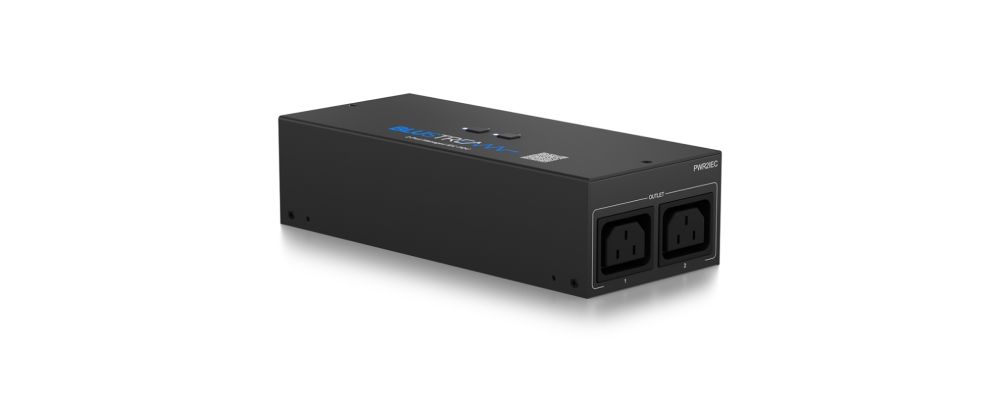

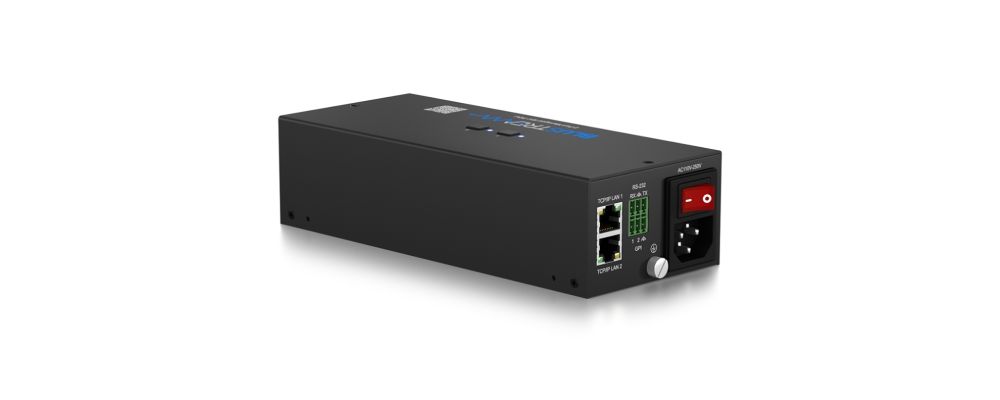

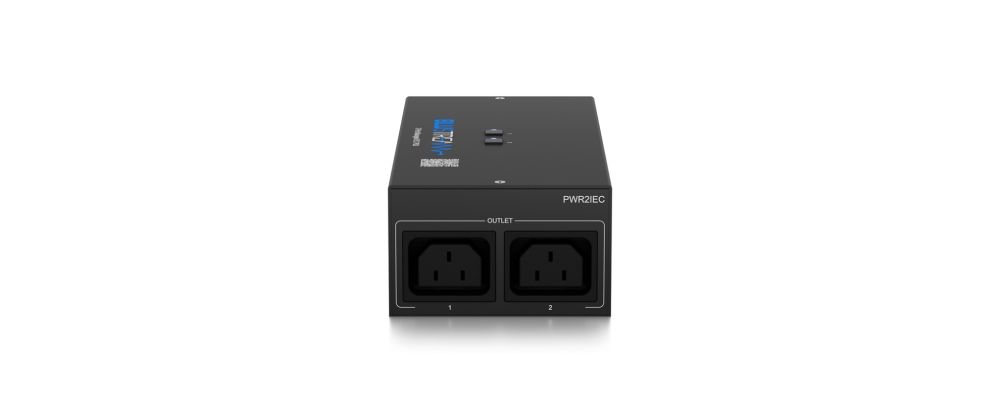

BLUSTREAM 2-PORT MANAGED IEC PDU POWER MANAGER
| The PWR2IEC is an outlet-level metered and switched smart PDU. The unit features 1 x IEC C14 inlet for power (110-250V at up to 10A) and 2 x IEC C13 output outlets for supply to high-power consumption devices. | |
| Code: | PWR2IEC |
| Brand: | BLUSTREAM |
Features:
- Single C14 IEC inlet with 2x C13 IEC outlets
- Products supports 110-250V AC power input up to 10A
- Monitoring and metering of Voltage, Current, Power, and Energy Consumption
- In-built self-healing through a 2-channel Watchdog, enabling adjustable ICMP or TCP monitoring per outlet, and automatic restarts to maintain uptime
- Overload Protection and Interference Filtering
- Advanced power management features including scheduling and power on/off sequencing
- Control via TCP/IP, RS-232, Front Panel buttons, or GPI
- Dual TCP/IP network ports providing uninterrupted network service / access with SSL connectivity
- GPI's for automated switching of inlet, and individual power outlets
- Provides remote monitoring with password authentication through web-GUI
- Support multiple network and IoT protocols
- Wall / shelf mounting kit provided
- IEC cable management points included
Specifications:
- Power Input ports: 1 x C14 IEC 10A
- Power Output ports: 2 x C13 IEC 10A Total
- GPI Control: 1 x 3-Pin Phoenix connector
- RS-232 serial port: 1 x 3-Pin Phoenix connector
- TCP/IP Control: 2 x RJ45, female
- Casing Dimensions (W x D x H): 200mm x 85mm x 50mm
- Dimensions Including Connections (W x D x H): 210mm x 85mm x 50mm
- Shipping Weight: 1.5kg
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Storage Temperature: -4°F to 140°F (-20°C to 60°C)
- Power Supply: Internal 110-250V AC
Includes:
- 1 x PWR2IEC
- 1 x Serial Cable - DB9 to 3-pin Phoenix Connector
- 1 x 3-pin 3.5mm Phoenix Connector
- IEC Inlet Power Cable(s)
