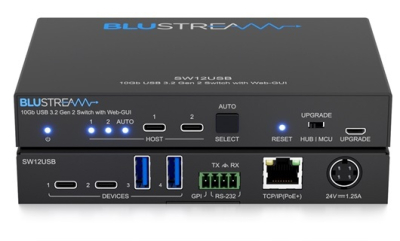

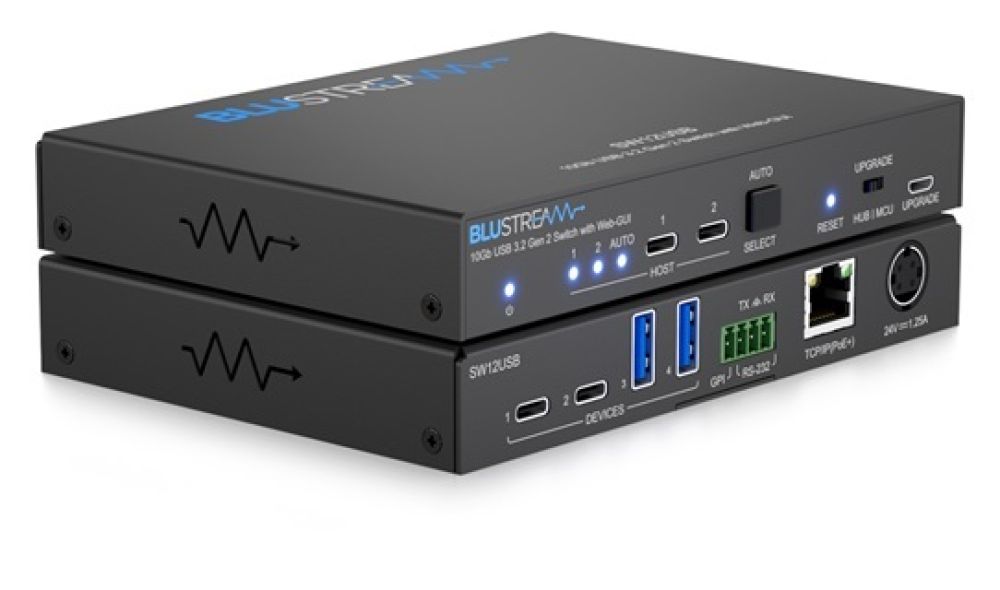

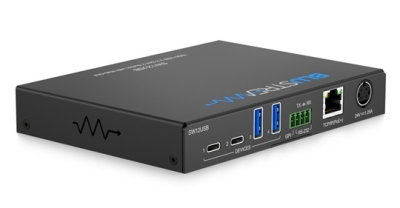

BLUSTREAM 10GB 3.2 GEN 2 SWITCH

11 Input Multi-format Presentation Switch (includes 100m at 1080p HDBaseT™ (Input and Output), HDCP 1.4
Code: SW12USB
Brand: BLUSTREAM

Description:

  • The SW12USB is a USB 3.2 Gen2 10Gb switcher, supporting 4 x USB devices that can be switched to 2 x USB-C host connections. The SW12USB supports auto switching between host devices using signal sense, or manually controlled via the front-panel push buttons, Web-GUI, TCP/IP, or RS-232

Auto Switching RS 232 WEB GUI Signal Sensing USB 3.2 GEN 2

Specifications:

  • USB Device: 2 x USB Type A female, 2 x USB Type C female
  • USB Host: 2 x USB Type C female
  • GPI / RS-232 Serial Port: 1 x 4-pin Phoenix connector
  • TCP/IP Control: 1 x RJ45, female
  • Firmware Upgrade: 1 x Micro-USB
  • Dimensions (W x D x H): 150mm x 110mm x 23mm
  • Shipping Weight: 0.6kg
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to 60°C)
  • Power Supply: 24V/1.25A DC, 4-pin DIN connector

Includes:

  • 1 x SW12USB
  • 1 x 24V/1.25A DC power supply
  • 1 x Mounting kit
  • 1 x Quick Reference Guide
