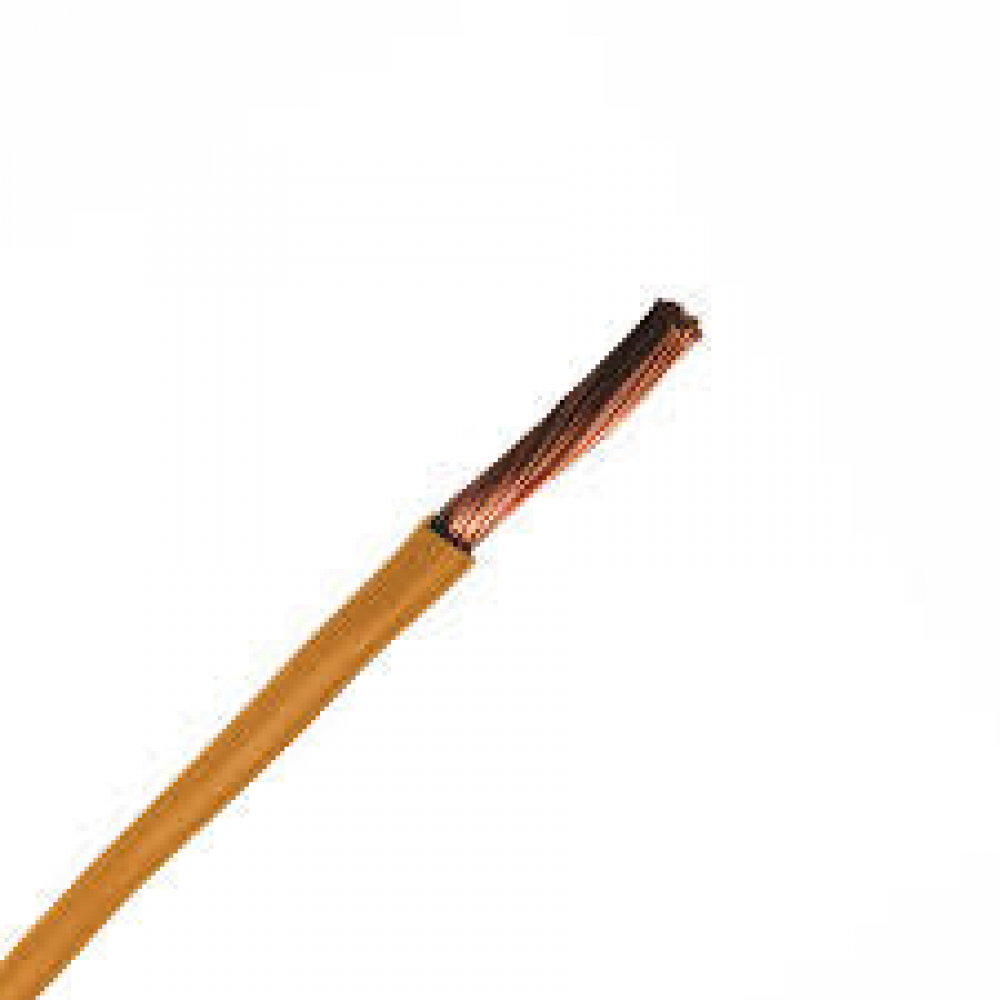

WESTEC AUTO SINGLE 3mm CABLE ORANGE - 100M

- Suitable applications for: general automotive and gas conversions
- RoHS Compliant
- Temperature Rating 90ºC
- 99.9% OFHC (Oxygen Free High Conductivity) copper which does not show any brittleness
Code: PC3MM-OR
Brand: WESTEC

CONSTRUCTION:

- Conductors: Plain annealed copper conductors (PCW) to AS/NZS1125

- Insulation PVC: UV Stabilised V90HT to AS3808:2000

- Voltage: AC 50V / DC 120V to AS/NZS 3000:2000

- Colour: orange

SPECIFICATIONS:

- No Strands/ø mm: 16/0.30

- Nominal Area mm² : 1.13

- Industry Equivalent mm: 3.0

- Amps ** : 20

- Sheath Thickness mm: 0.50

- Max DC Resistence @20°C: 16.49mΩ/mt

- Nominal OD mm: 2.38

- Mass Kg/100m: 1.4
