DNA 12V DC TO 8V DC CONVERTER FOR REVERSE CAMERA VOLTAGE

* ONLY 6 LEFT IN STOCK *
This voltage reducer will allow you to provide a clean 8 volt DC circuit to the camera reverse trigger, for compatibility with aftermarket 12V head units.
Code: AVR1208
Brand: DNA

Features:

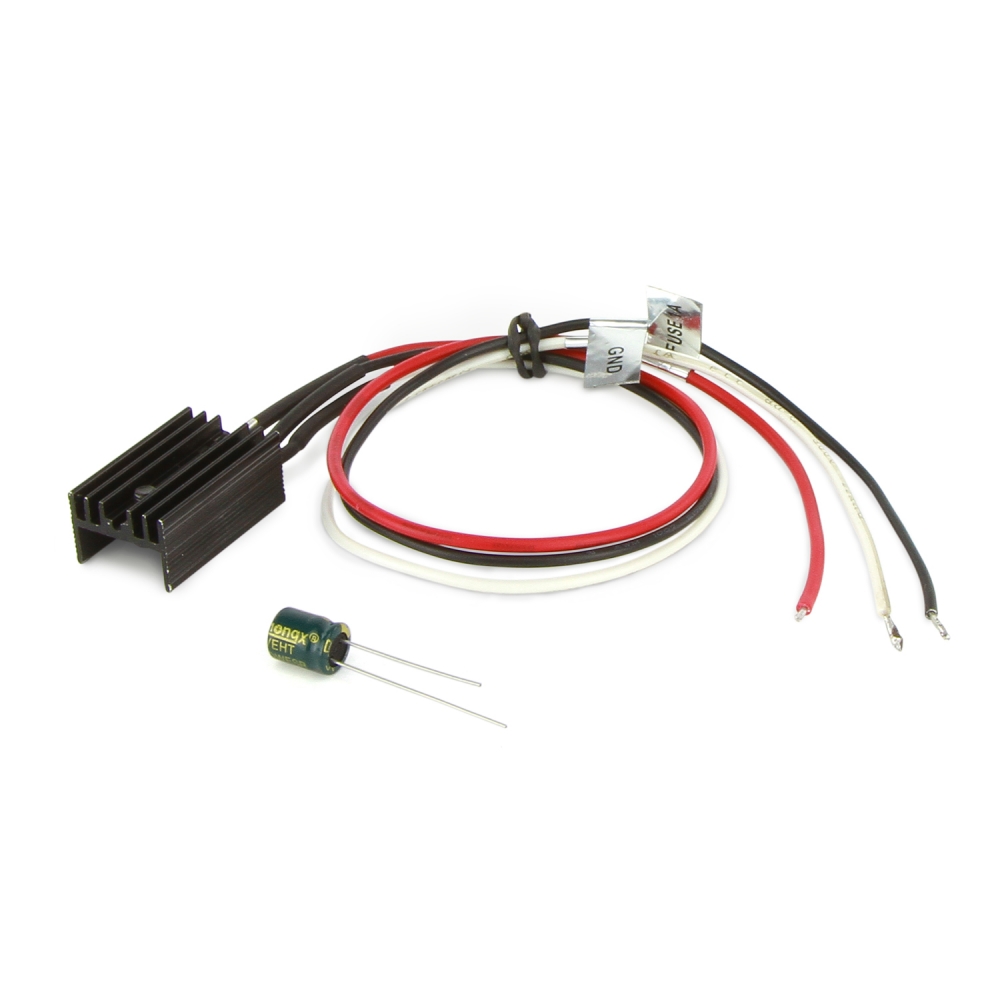

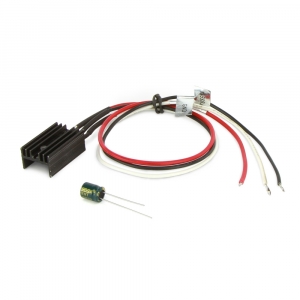

  • 12VDC to 8VDC, 1A reverse camera voltage reducer with heatsink.
  • Allows you to fit a vehicles factory reverse camera to an aftermarket head unit.
  • Some factory vehicles use a lower voltage to trigger their factory fitted reverse camera – This voltage reducer will allow you to provide a clean 8 volt DC circuit to the camera reverse trigger, for compatibility with aftermarket 12V head units.
  • Comes mounted to a heatsink to stop overheating and is fitted with 30cm wire tails for easy installation.
  • A capacitor is also included to allow a stable current of power for cameras that require very low amperage triggers.
  • Can also be used on low current 8VDC volt devices with a maximum of 1 amp output.
  • Features only 3 wires for easy installation:
  • Red Wire: Connect to switched 12 volt power
  • Black Wire: Connect to chassis ground
  • White: Connect to the component turn on wire (8 volt 1 amp output)
  • Supplied with 1 x capacitor (Allows a stable current of power for cameras that require very low amperage triggers).

Specifications:

  • Input Voltage: 12~14VDC
  • Output Voltage: 8VDC
  • Amperage Output: 1 Amp
  • Cable length: 30cm
  • Heatsink size: 25mm L x 15mm W x 11mm H
  • Packaging: Sliding blister
