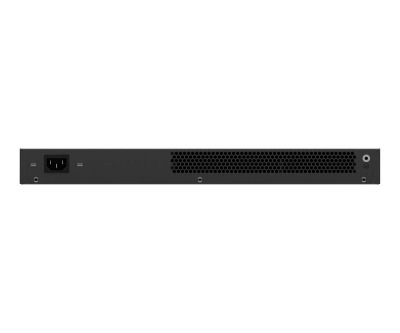

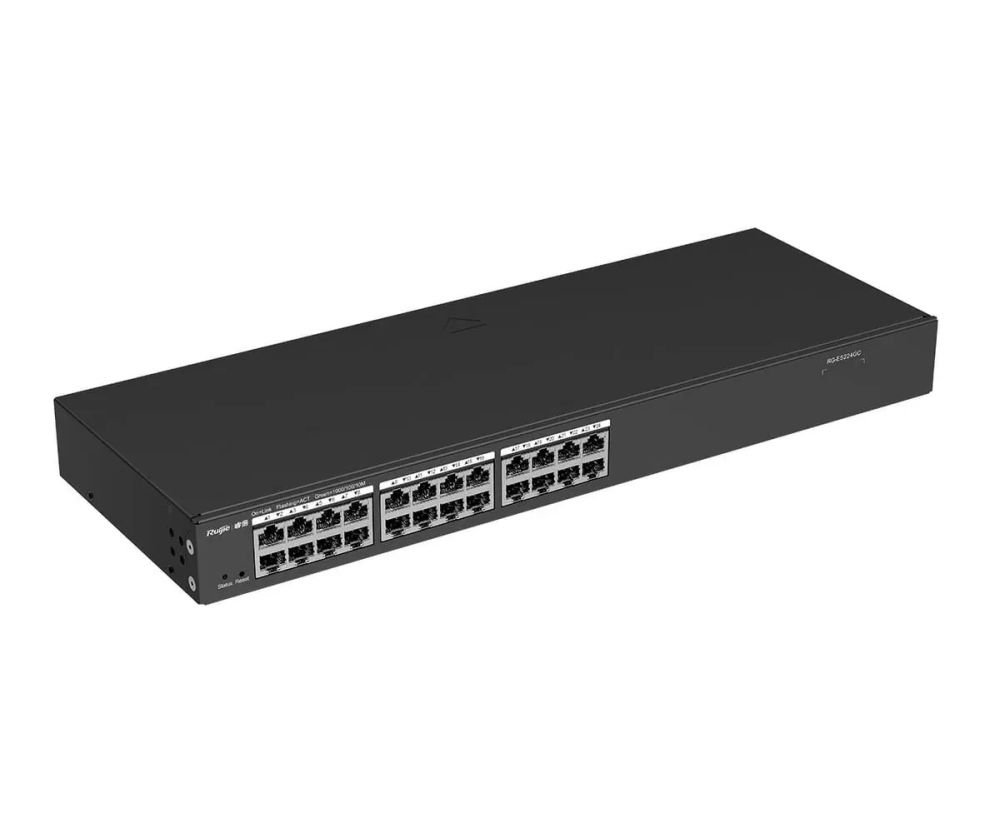

RUIJIE RG-ES224GC 24-PORT GIGABIT MANAGED NETWORK SWITCH
| Ruijie Reyee RG-ES224GC 24-Port Gigabit Managed Switch, 19? Rack Mounted 24-Port gigabit cloud managed non-PoE switch |
|
| Code: | R-RGES224GC |
| Brand: | RUIJIE |
- Cost-Effective Smart Cloud Managed Switches
- IP Camera Recognition, Unique Value for CCTV Network
- Automatic Loop Prevention Ensures Service Continuity
- Lifetime management on Ruijie Cloud at anytime anywhere
- No PoE ports
Technical Specification
Basic
-
- 10/100/1000Base-T ports – 24
- Layer Type – Layer 2
- Switching capacity – 48 Gbps
- Forwarding rate – 35.71 Mpps
- Packet Buffer – 4.1 Mbit
- MAC address table – 8000
- Maximum VLAN Support – 16
- Dimensions (W x D x H) – 440 mm x 165 mm x 44 mm
- Weight (With package) – 2.8 kg
- MTBF (Hours) – > 200,000
- Warranty – 3 Years
Software Features
-
- 10/100/1000M Auto/Full/ Half Duplex Negotiation – Yes
- Flow Control – Yes
- Storm Suppression – Yes
- Management IP – 10.44.77.200
- VLAN Range -1 – 4094
- Port-based VLAN – Yes
Hardware Features
-
- Reset Button – Front
- Cable Hot-swappable – Yes
- Power Supply Slot – Single, fixed power supply
- Power Consumption – ≤ 14W
- Power Supplies – 100 – 240V AC, 0.6A
- Fan – Fanless
- Fan Adaptive Speed Adjustment – Yes
- Acoustic Noise – Noiseless
- Operating Temperature – 0°C to 50°C (32°F to 122°F)
- Storage Temperature – -40°C to 70°C (-40°F to 158°F)
- Operating Humidity – 10% to 90% RH
- Storage Humidity – 5% to 95% RH
- Port Surge – 4 kV
- Operating Altitude (meters) – -500 to 5000
- Certificate – CE, RoHS
